Circle T C117 EASY Coping Machine

Circle T C117 EASY Coping Machine

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

EASY Coping Machine C117 Details



APPLICATION SPECIFICATIONS:

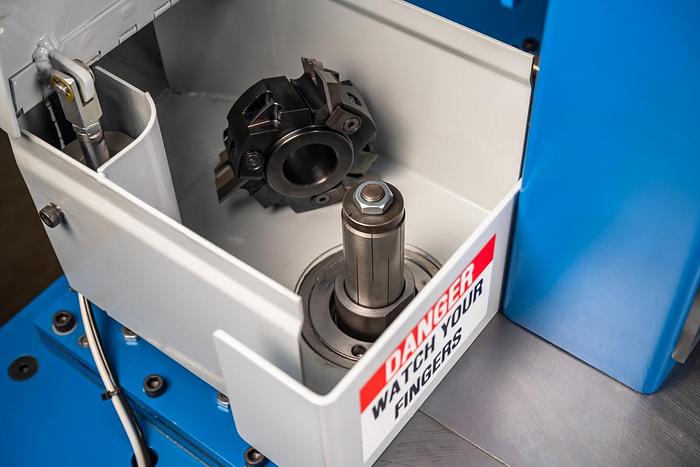

  • EASY Quick-Change Spindle INCLUDED
  • EASY Foot Pedal Cycle Start
  • EASY Backer Block Change

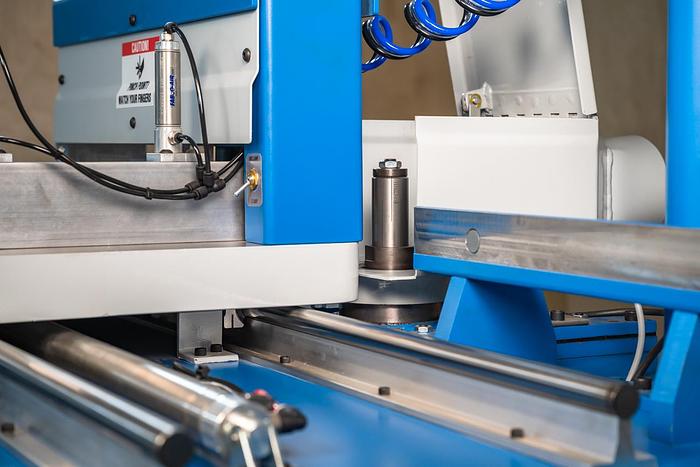

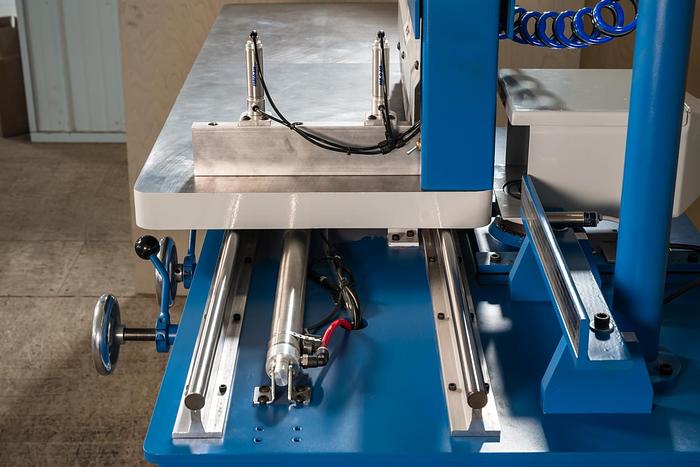

  • EASY Pneumatic Hold Down Clamp System
  • 16” Wide Cutting Capacity
  • 5/8” to 1” Material Thickness



DRIVE PACKAGE SPECIFICATIONS:

  • Main Motor: 5 H.P.

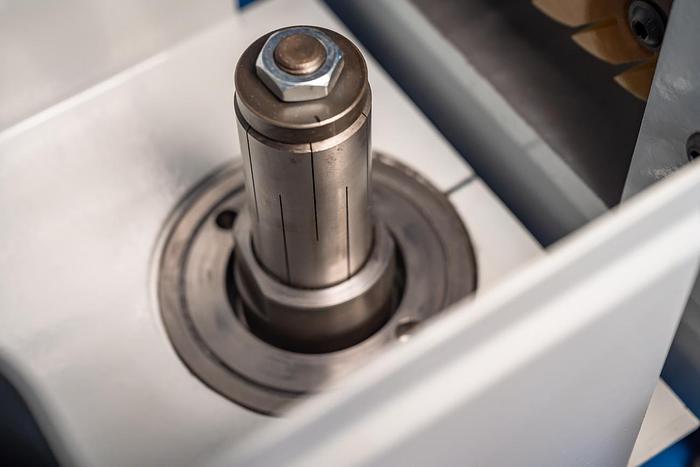

  • 1.25” Spindle
  • 4” Diameter Cutter Compatible
  • Available in 220v 3ph, 460v 3ph, and Hydraulic Drive Packages (some electric needed for readouts)
  • Flat Belt Drive
  • Y and Z Axis Spindle Adjustment with DRO



UTILITY REQUIREMENTS

  • Dust Collection Requirements: 670 CFM, 4″ Outlet
  • Pneumatic Requirements: 90-100 PSI to Power Table and Clamp
  • 25 Amp FLA @ 460v 3ph
  • 40 Amp FLA @ 230v 3ph



DIMENSION SPECIFICATIONS:

  • Table Size: 44” L x 17” W
  • Table Height: 36”
  • Footprint: 46” L x 29” W x 60” H (Additional 20” needed on left side for table movement)
  • Working Area Footprint: 63” L x 28” W x 60” H



SHIPPING WEIGHT: 1100lbs

SHIPPING DIMENSIONS: 41”L x 48”W x 67”H

Specifications

ManufacturerCircle T
ModelC117
ConditionNew
