Casadei E450 PM Automatic Edge Bander with Premill
Casadei E450 PM Automatic Edge Bander with Premill
Contact us for price
Location:Dundee, NY
or
Call +1 (607) 678-4374
Description
E450 PM Automatic Edgebander with holt- melt glue pot (EVA), chain panel, feeding and pre-milling
Maximum finishing quality

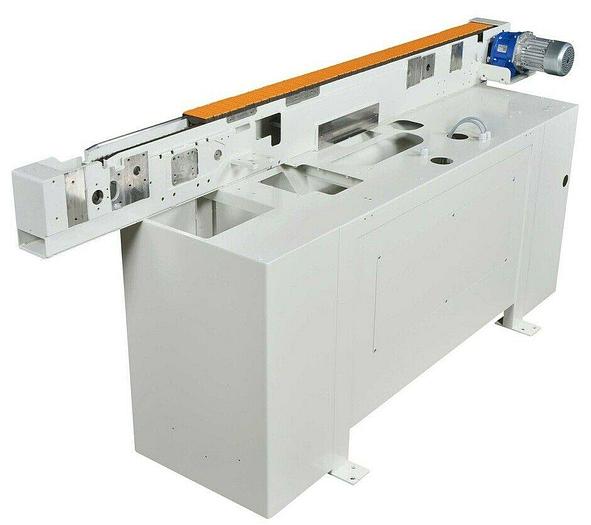

- Chain feeding system
- Pre-milling
- Interchangeable glueing unit Flex (opt.)
- 2 free spaces for finishing units
Specifications
| Manufacturer | Casadei |
| Model | E450 PM |
| Condition | New |
| Stock Number | E450 PM |
| Min./max. panel height: | min 8 - max 45 mm |
| Min./max. edge thickness: | 0,4 - 3 mm (coils) / 0,4 – 5 mm (strips)* |
| Minimum panel length (side being processed): | 210 mm |
| Pre-milling motors (each) | 200 Hz - 12.000 rpm - 0,75 kW |
| Glue pot heating element | 1490 W - Nr. 6 cartridges |
| End trimming blade rotation speed: | 9000 rpm |
| End trimming motor | 50 Hz – 0,18 kW |
| Flush trimming motors (each) | 200 Hz - 12.000 rpm - 0,22 kW |

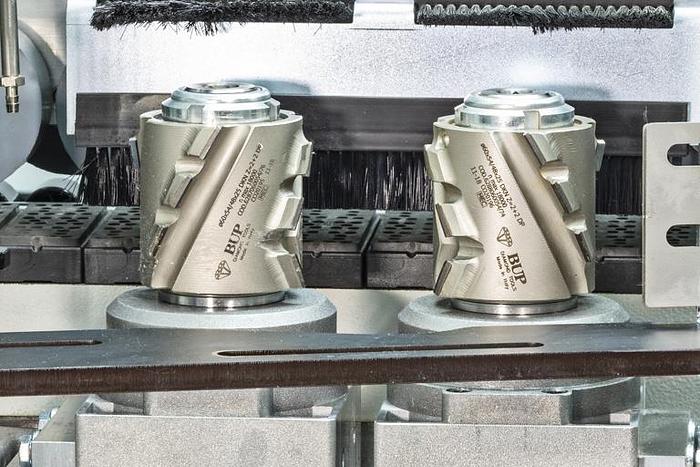

| Cutterblocks with combined WIDIA disposable Knives (radius/beveled) | Ø 75 mm Z4 - hole Ø 16 mm |
| Total power installed | 5 kW approx. |

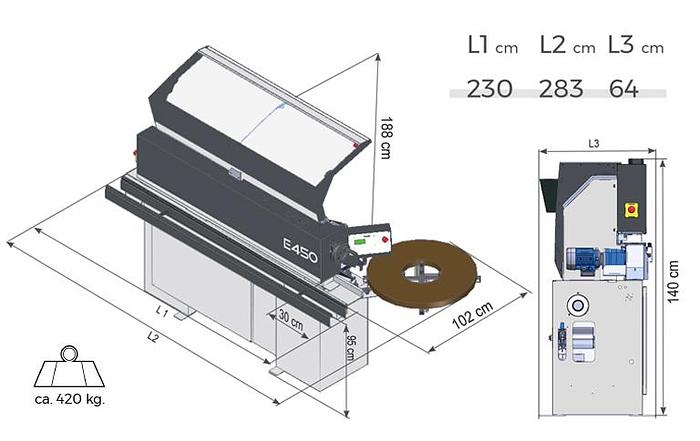

| Weight | 420 Kg approx. |
| Panel feed speed | 7 m/min |
| Minimum panel width | 95 mm |
