Powermatic 209HH 20-Inch Planer, Helical Cutterhead, 5 HP, 1Ph 230V

Powermatic 209HH 20-Inch Planer, Helical Cutterhead, 5 HP, 1Ph 230V

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

This heavy duty Planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the 100 four-sided carbide knife inserts seat themselves without requiring a set-up gauge. The 5" dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

Features

  • Cast iron head
  • Cast iron table with extensions creates a big 55-1/2" x 20" working area

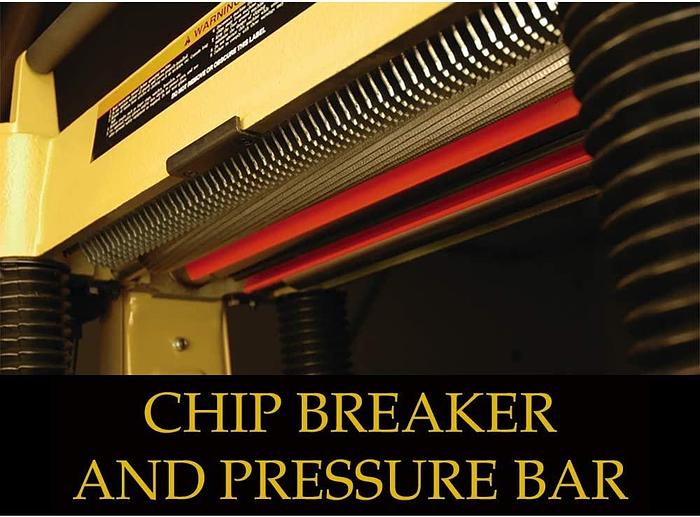

  • Chip breaker and pressure bar assists to reduce snipe
  • Chrome-plated, ergonomic handwheel makes adjustments smooth and easy
  • Feed rollers and cutterhead supported by full cast iron head assembly
  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
  • Fully enclosed base cabinet with integrated casters for shop mobility

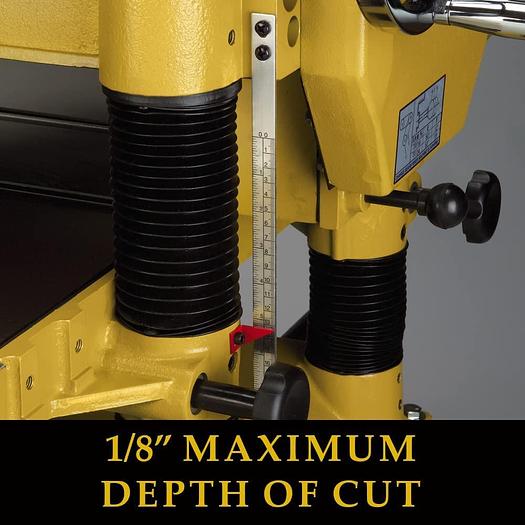

  • Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8" maximum depth of cut and trouble-free operation
  • The helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems


Specifications

ManufacturerPowermatic
Model209HH
ConditionNew
Stock Number1791315
Cuts Per Minute20,000
Cutterhead Diameter (In.)3-3/16
Cutterhead Speed (RPM)5000.0000
Dust Collection Minimum CFM Required (CFM)900
Dust Port Outside Diameter (In.)5
Feed Rate (FPM)24/31
Maximum Depth of Cut (In.)3/32
Maximum Full Width Depth of Cut (In.)3/32
Maximum Planing Thickness (In.)8
Maximum Planing Width (In.)20
Minimum Planing Length (In.)6-3/4
Motor Power (HP)5
Motor Voltage (V.)230
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)40
Style (Type)Floor
Table Size (L x W) (In.)25-3/4 x 20
Table Support4 Column
Type of CutterheadHELICAL
