Ritter R152 152 Spindle Single Row System Drill

Ritter R152 152 Spindle Single Row System Drill

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

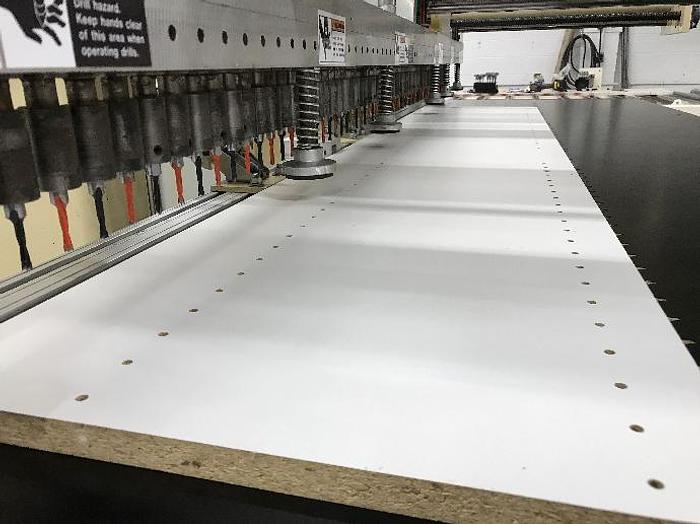

The Ritter R152 Line drill is a woodworking machine that can drill rows of evenly spaced holes in cabinet and furniture components. It has 152 spindles arranged in two rows of 76 each, and it can drill a full 8 foot panel with precision and speed. It is designed for closet panel production and features servo driven and programmable through boring, twin ball screw boring stroke control, and right and left hand work stations.


Standard Features

  • (2) 76 Spindle Gear Driven Heads
  • (6) 3 HP Spindle Drive Motors, TEFC
  • 32mm Spindle Centers
  • 10mm Bored Collets
  • (76) Right Hand, (76) Left Hand
  • CNC Table Feed Control
  • Electronic Drill Head Squaring
  • Foot Actuated Boring Cycle
  • Minimum hole spacing: 5” (127mm)
  • Magnetic Controls
  • Tooling Not Included

Specifications

ManufacturerRitter
ModelR152
ConditionNew
Stock NumberR152
Drive Motors3 HP
Spindle Centers32mm
Collet Size10mm
Throat Capacity24"
First to Last Spindle2,400mm (94.488")
Maximum Material Thickness1.25"
Electrical230V, 3Ø, 60Hz, 60A or 460V, 3Ø, 60Hz, 30A
Air2 CFM at 80 – 100 PSI
Work height36″
Footprint54″ x 136″
Table Area30″ x 108″
Shipping Weight4,432 LBS
Shipping Dimensions (L x W x H)120″ L x 63″ W x 83" H
