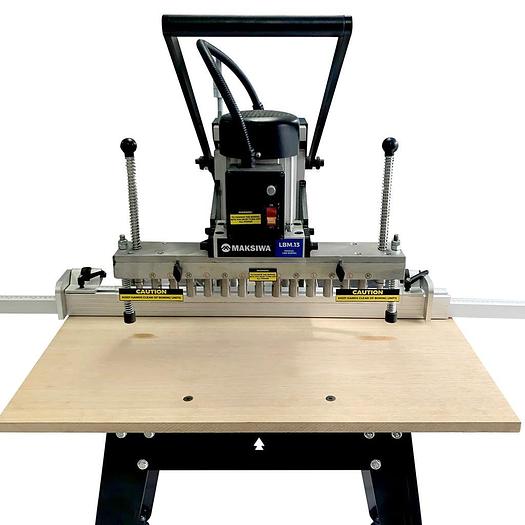

Maksiwa LBM.13 Manual 13 Spindle Line Bore Machine
Maksiwa LBM.13 Manual 13 Spindle Line Bore Machine
Contact us for price
Location:Dundee, NY
or
Call +1 (607) 678-4374
Description
Our Line Boring Machines were designed to last, loaded with features such as the lubricated aluminum head, heat treated steel gears, 1 HP motor and stainless-steel spindles. These machines offer carpenters and woodworkers the opportunity to work with the most innovative bench top boring machine currently on the market!
2 Year Warranty

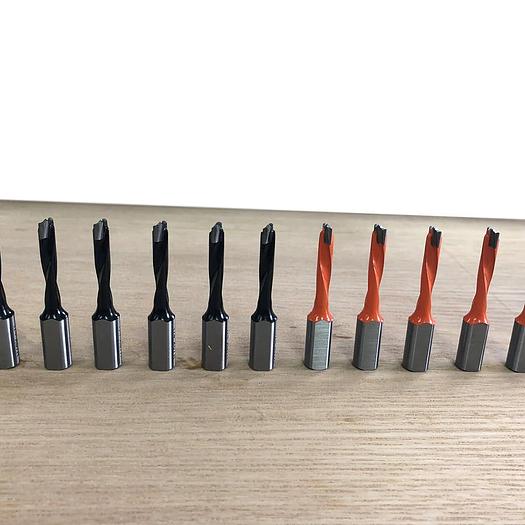

1 Set of bits (5mm and 6,35mm)
Specifications
| Manufacturer | Maksiwa |
| Model | LBM.13 |
| Condition | New |
| Motor | 1 HP, 110 V or 220 V, prewired 110 V, Single - Phase - 10 A / 5 A |
| Number of Spindles | 13 (6 Left and 7 Right) |
| Table Size | 31 x 15-1/2 |
| Spindle Speed | 3.450 RPM |
| Fence Stops | 2 |
| Expandable Fence Guide Max. | 89 Inches |
| Floor to Table Height | 34 Inches |
| Max. Depth of Stroke | 2.5 Inches |
| Distance Between Spindle Centers | 32 mm |
| Shipping Weight | 155 Lbs |
| Length of Fence | 61.5-5-91.5 Inches |
