Safety Speed 6480-20C Vertical Panel Saws

Safety Speed 6480-20C Vertical Panel Saws

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The 6480-20C is a compact panel saw with a 5’ frame, and a 50” maximum crosscut with a 96” rip cut capacity. Featuring a cut accuracy of 1/32″, and a 1.75″ cut depth, the 6480-20C is eerily similar to our C4 panel saw while having optional accessories built into the price.


These accessories include

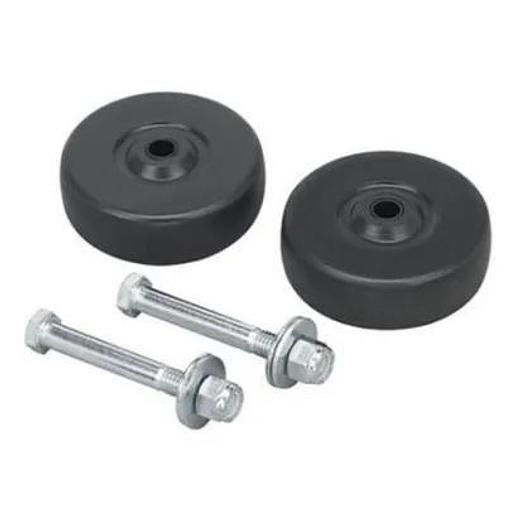

  • A portable folding stand and wheels allowing for moving the panel saw around your shop as your day-to-day operations change,
  • General-purpose saw blade.
  • a dust bonnet allowing you to set your machine up for collecting dust



  • The 6480-20C Panel Saw replaces the Milwaukee Tool 6480-20 Panel Saw, a private label that Safety Speed Manufacturing made out of their Minnesota factory for Milwaukee Tool for the last 40 years. The 6480-20C includes a 3.25-horsepower Milwaukee Tool motor. The dust collection kit and vacuum for collecting as much dust as possible are optional accessories. This machine is only available within North America.


Description

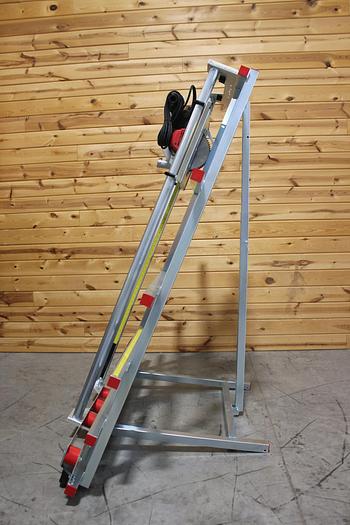

Wheels and a folding stand provide portability for your compact panel saw and allow you to move it around your shop as you see fit.

Standard Equipment

  • 3 ¼ Hp, 15 amp industrial, Milwaukee Tool motor.
  • Folding Stand
  • Wheels
  • Zinc-plated 1 ¾” steel guide tubes.
  • 4 Nylatron roller bearing systems.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical to horizontal cutting.
  • Thin material pressure guard.
  • Injection-molded plastic material rollers.
  • Spring loaded counter balance system.
  • Integrated dust collection bonnet.
  • Extended warranty.
  • TUV certified to UL/CSA standards



Specifications

ManufacturerSafety Speed
Model6480-20C
ConditionNew
Weight189 lbs
Dimensions60 × 11 × 70 in
Max. Crosscut50"/1270mm
Max. Rip Cut96"/2450mm
Cut Depth1 ¾"/45mm
Cut Accuracy1/32"/.8mm
Frame Length60"/ 525mm
Saw Blade Diameter8"/210mm
Saw Blade Bore Size5/8"
Daily Usage1-3 Hours
Rollers8
Motor volt and amperage15 amp, 120V, 7.5 amps, 220V
Motor ManufacturerMilwaukee Tool
Machine Footprint15sqft
Machine Length60"/1525mm
Machine Height75"/1900mm
Machine Width with stand attached36"/915mm
