Ritter R210E/A 5'x12' Open Back Face Frame Assembly Table

Ritter R210E/A 5'x12' Open Back Face Frame Assembly Table

Contact us for price

Dundee, NY

orCall +1 (607) 678-4374


Screwed-together face frame construction provides for the most efficient and economical methods for joining frames. Flush and tight joint construction is provided for all types of wood. Elimination of dowel boring and insertion, clamping time, and joint misalignment provide up to 50% time reduction in frame production. The ability to disassemble and reposition a joint creates less loss of material in case of errors in the joint location. No glue is required.

Standard Features:

  • 5'x12' Assembly Table
  • Open Back For 60" Plus Frame Height
  • 45 Degree Vertical Easel

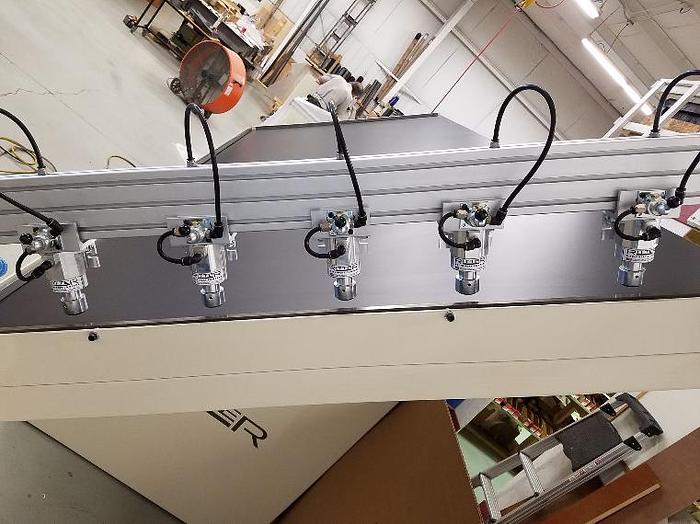

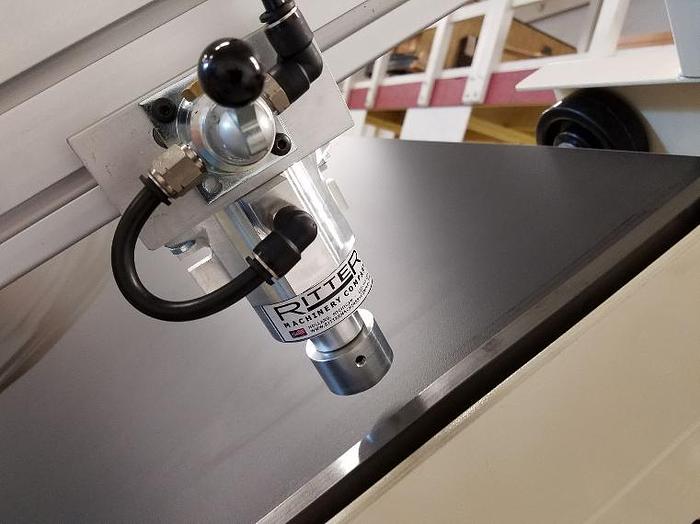

  • Hold Down Beam with (5) Adjustable Hold Down Cylinders
  • Squaring Bars on Left, Right and Bottom Sides
  • 1" Thick Laminated Surfaced Table
  • Heavy Duty Steel Frame
  • (1) Coilhose for Pneumatic Screw Gun
  • Screw Gun Not Included

Additional options:

  • R210A - Face Frame Assembly Clamp Arm


Stock NumberR210E/A
* Usable Table Area58.5" x 141"
Air100 PSI
Shipping Weight1250 LBS
Shipping Dimensions (L x W x H)68" X 169" X 30" H
