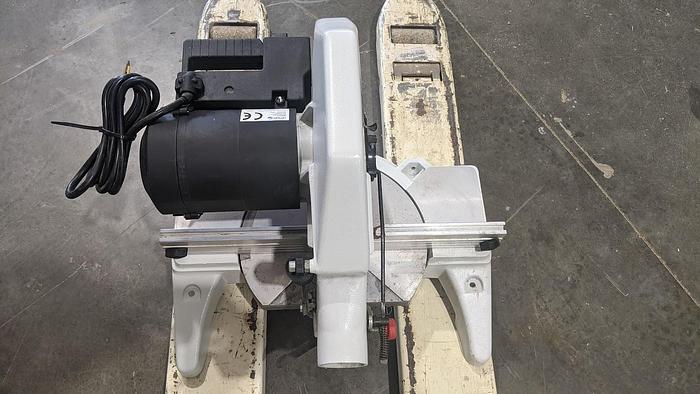

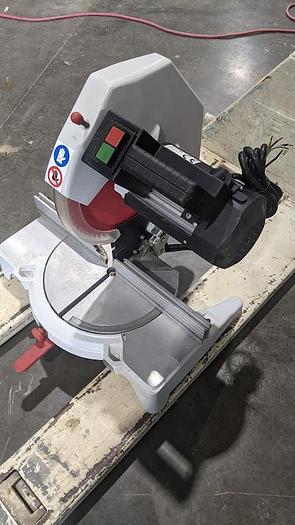

Omga 1L300 12'' Compound Mitre Saw

Omga 1L300 12'' Compound Mitre Saw

$950 (USD)

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

Brand New Display Model


OMGA 1L 300 Compound Mitre Saw 12 Inch is a beading saw with perfect compromise for accuracy toughness and maneuverability. Positive stops at 45°, 30°, 22° 30' and 15° on both sides of the rotation. A manual locking device for all the intermediate angles provides a great flexibility to this unit. The direct drive transmission and a powerful 1.75 HP induction motor make of the 1L 300 the ideal tool for heavy duty industrial usage


FEATURES

• Angle positioning with mechanical stop at : 90° - 15°- 22° 30’-30°- 45° R.H. and L.H. side

• ON/OFF buttons on control handle

• Motor brake

• Quick release of saw guard for easy saw blade replacement and automatic locking at next cycle

• Bearing on pivot point for descent for smooth and steady cutting action

• Ball bearing on rotation of table for easy and smooth angle positioning

• Strong back fence in aluminium extrusion, 60 mm high, with slides to receive the adjustable mobile fence as an option

• Preset to receive front clamps

• Depth cut capacity, max. 120 mm


Specifications

Cutting capacity at 90 degrees 5 7/8''

Cutting capacity at 45 degrees

3 15/16’’

Max. Cutting depth at 90 degrees

3 1/8’’

Max. Cutting depth at 45 degrees

1 3/8’’

Max. bevel cross cut capacity

5 7/8’’

Motor capacity

1.75 HP

Operation voltage

220V3PH


Arbor bore

30 mm



Saw blade diameter

12"

Arbor rotation speed

3 400 RPM

Dust outlet diameter

2.35’’

Table size

19 11/16" X 6’’


Specifications

ManufacturerOmga
Model1L300
ConditionUsed
