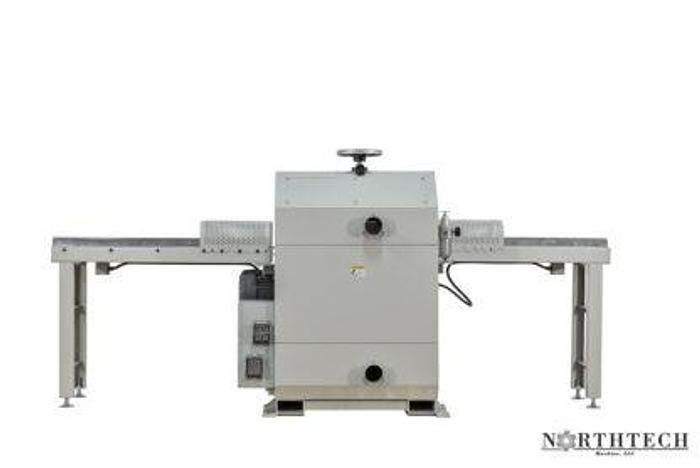

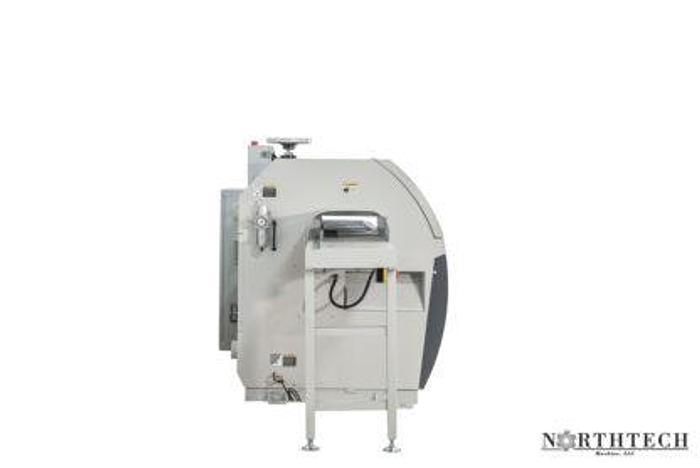

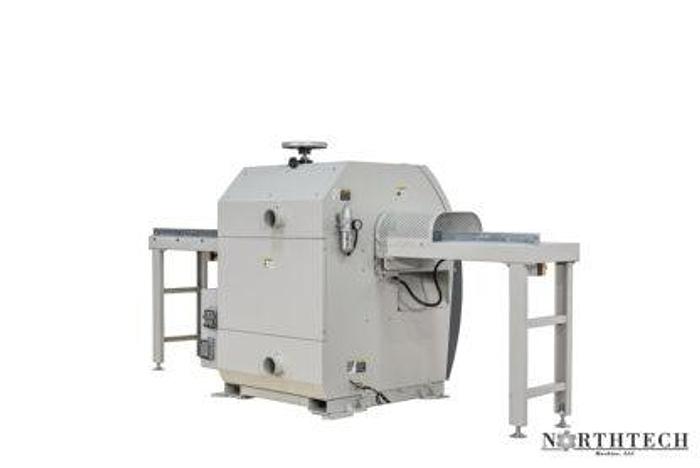

Northtech NT-ADS100A Automatic Feed Through Defect Saw
orCall +1 (607) 678-4374
Description

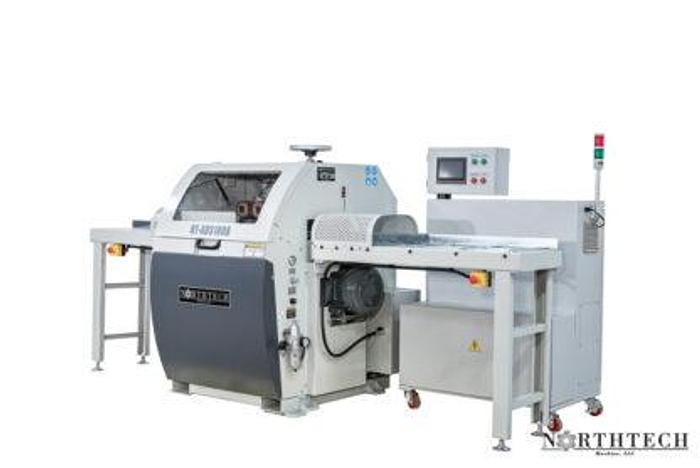

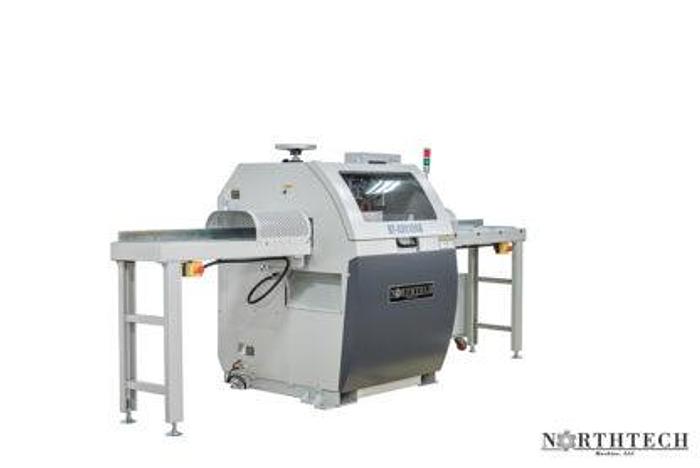

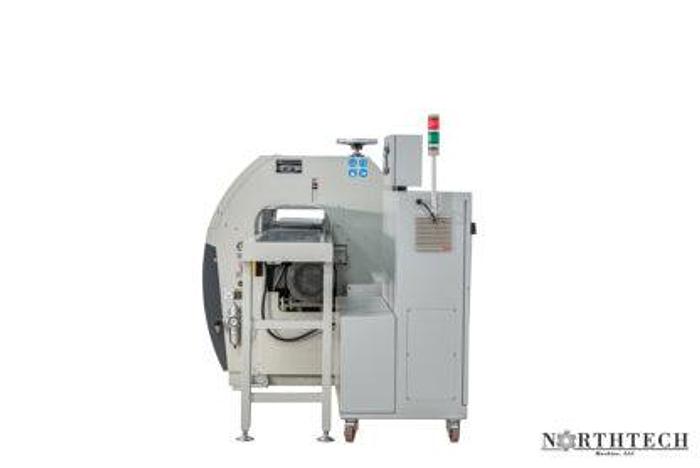

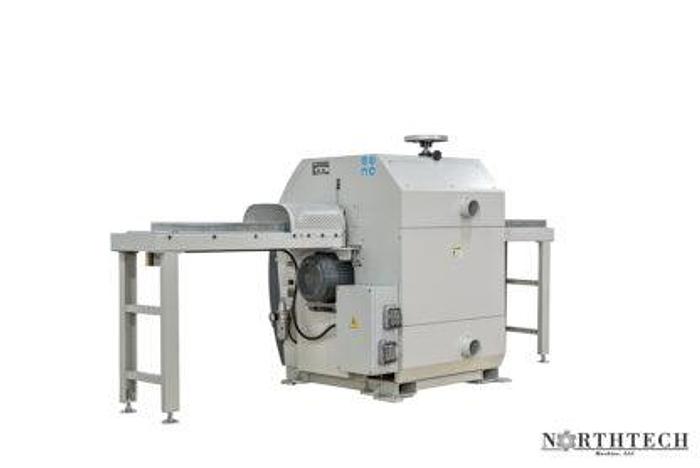

The Northtech ADS100A is an automatic feed through defect saw. The scanning fluorescent marking
technology provides rapid speed cutting with multiple cut modes. The overhead feed system pushes product
seamlessly through the up cut saw. Programmable cut lists and optional end trim ensures exact product
outputs. The NT-CFS100A comes standard with small part blow off and discharge chute for faster production
outputs.
Specifications
| Manufacturer | Northtech |
| Model | NT-ADS100A |
| Condition | New |
| MAIN MOTOR HP | 10 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 19/38 Amps |
| FEED HP | 3 HP |
| FEED SYSTEM | Inverter Controlled Servo Motor |
| DRIVE SYSTEM | Servo Clutch Timing Belt 5 Drive Wheels |
| FEED SPEED RANGE | 36-360 FPM |
| VARIABLE FEED SPEED | Inverter Controller |
| ELEVATION STYLE | Manual Wheel Adjustment |
| ELEVATION SYSTEM | Jack Screw |
| TOTAL MACHINE HP | 13 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 110 Volt 24 Volt |
| ASSISTED START | Wye Delta |
| PROGRAMABLE | Cut List with Defecting |

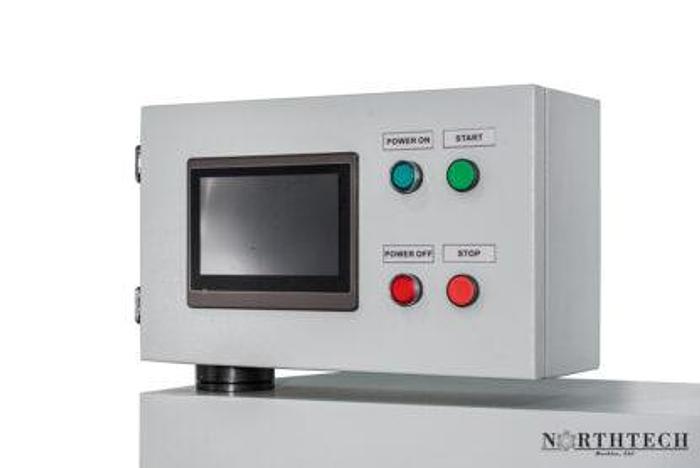

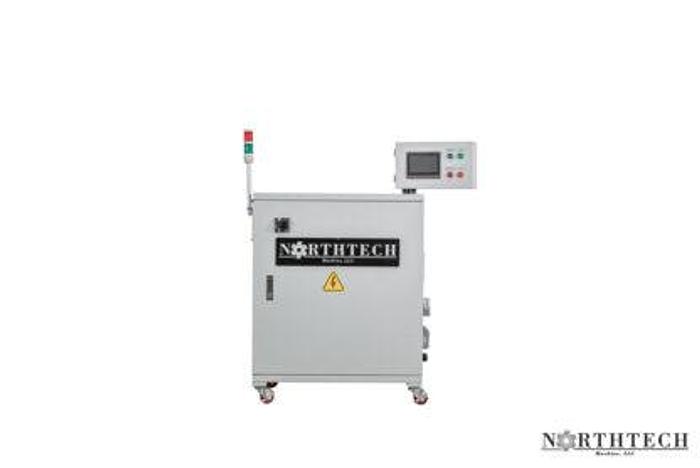

| TOUCH SCREEN | 8'' Touch Screen |

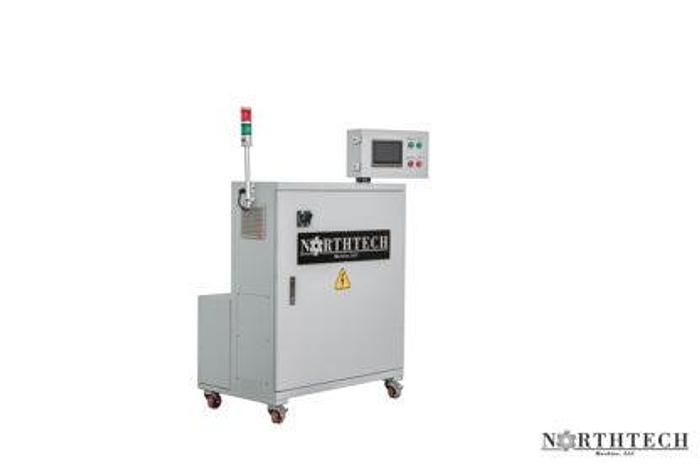

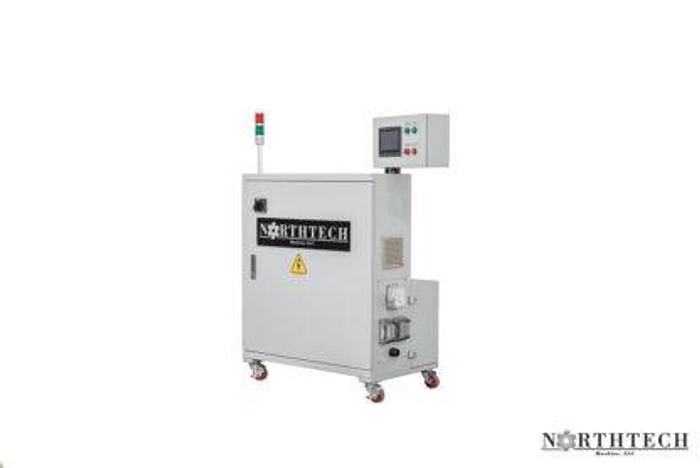

| ADJUSTABLE OPERATOR PANEL | Cart |
| PASS-LINE | 35'' |
| CUTTING ENVELOPE | 4'' x 11-15/16 |
| MAX. WORKING LENGTH | 7.9'' |
| MIN. WORKING WIDTH | 1/2'' |
| MAX. WORKING WIDTH | 1/2'' x 15-3/4'' |
| MIN. WORKING THICKNESS | 3/16'' |
| MAX. WORKING THICKNESS | 4'' x 11-15/16'' |
| ARBOR RPM | 3400 RPM |
| BLADE SIZE | 18'' |
| NO. OF TEETH ON BLADE | 120 Tooth |
| TOOTH SPACING | 0.45'' |
| BLADE KERF | 0.17'' |
| CLEANING SYSTEM | Jet Blow Off on Sensors |
| DUST PORT SIZE OUTLET | (2) 4'' ports |
| ARBOR DIAMETER | 30 MM |
| CYCLES/MINUTE | 130 Cycles Per Minute 3/16'' Cut |

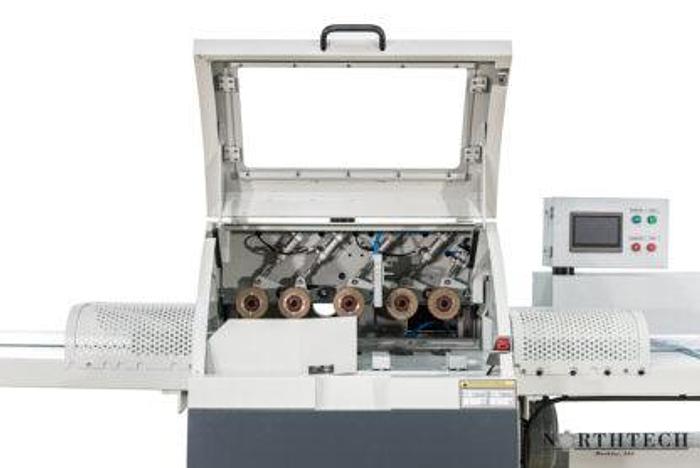

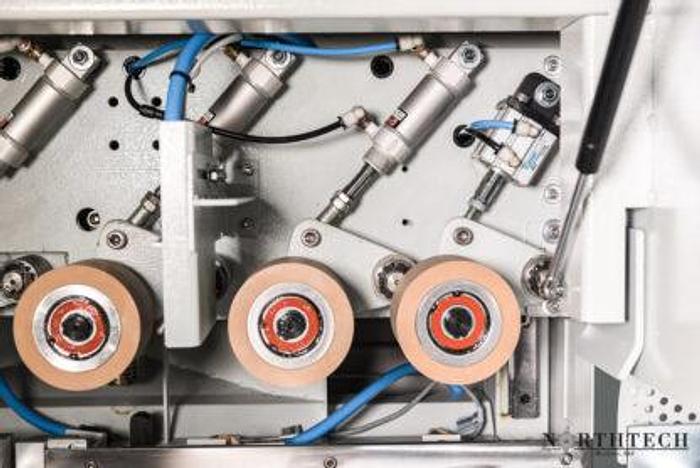

| POWERED ROLLERS | (5) Bottom Powered Rollers |
| IDLE ROLLERS | (5) Top Idle Rollers |
| HOLD DOWN STYLE | (5) Top Pneumatic Rollers |
| FLR INCLUDED | Filter Lubricator Regulator |
| CFM AIR SUPPLY REQUIREMENT | 3/8'' Line @ 90 PSI |
| WASTE DISCHARGE | 10'' x 17-3/4'' Discharge Chute |
| REAR E STOP | E-Stop End of Both Conveyors |
| SAFETY FEATURE | Full Enclosure with Safety Switch |
| GUARDING | Full Enclosure |
| OPERATION STYLE | Manual /Automatic |
| FENCE TYPE | Fixed |
| FENCE DIMENSIONS | 1-3/4'' x 34'' |
| ADJUSTABLE STROKE | Using Magnetic Sensor |
| STROKE LENGTH | Adjustable |
| BRAKE SYSTEM | Servo Brake on Feed |
| FRAME CONSTRUCTION | Fabricated Steel Construction |
| WORKTABLE DIMENSIONS | 17-3/8'' x 35-5/8'' |
| TABLE CONSTRUCTION MATERIAL | Steel Plate |
| INFEED TABLE LENGTH | 48-1/2'' |
| OUTFEED TABLE LENGTH | 39-1/2'' |
| DECIBEL RATING | 75 dB |
| NET WEIGHT | 2104 Lbs. |
| GROSS WEIGHT | 2330 Lbs. |
| MACHINE DIMENSIONS | 124'' x 47'' x 56'' |
| PACKAGING DIMENSIONS | 90'' x 51'' x 62'' |
