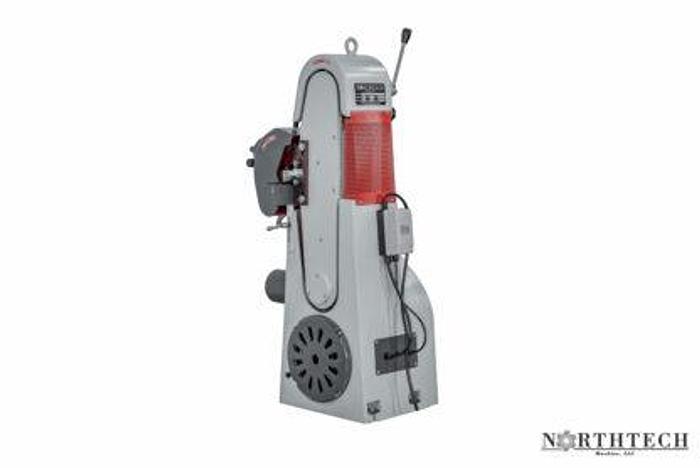

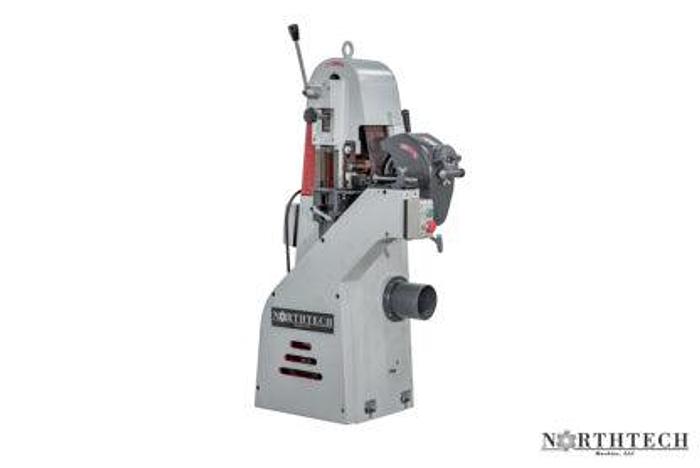

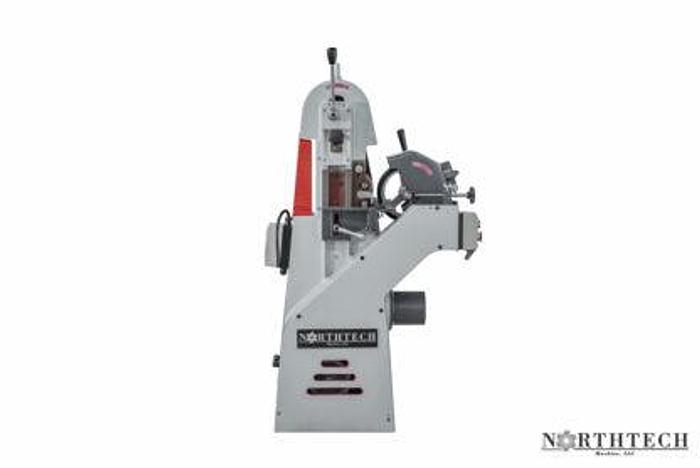

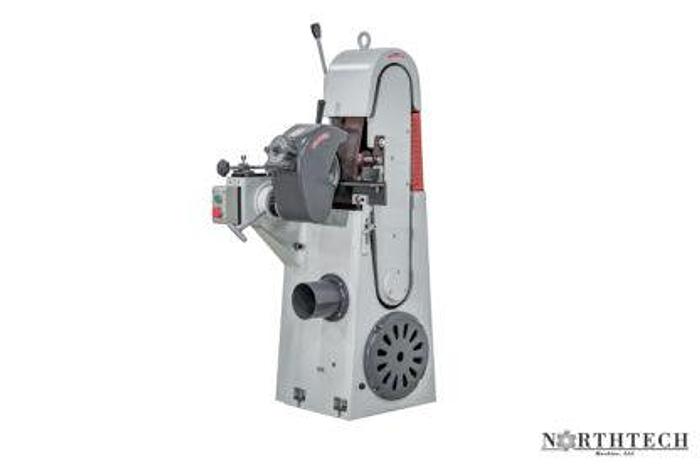

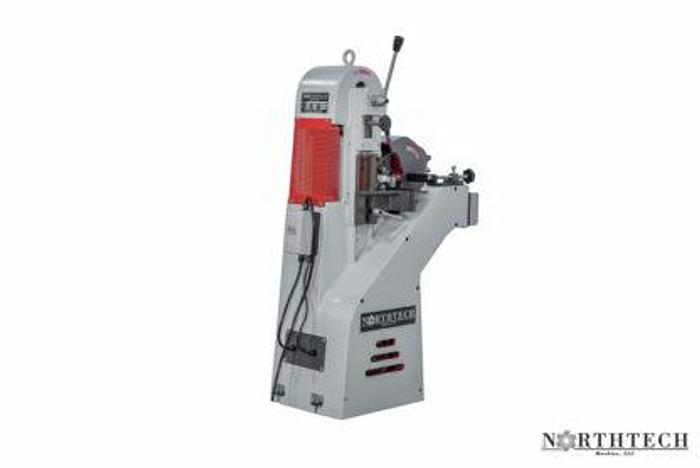

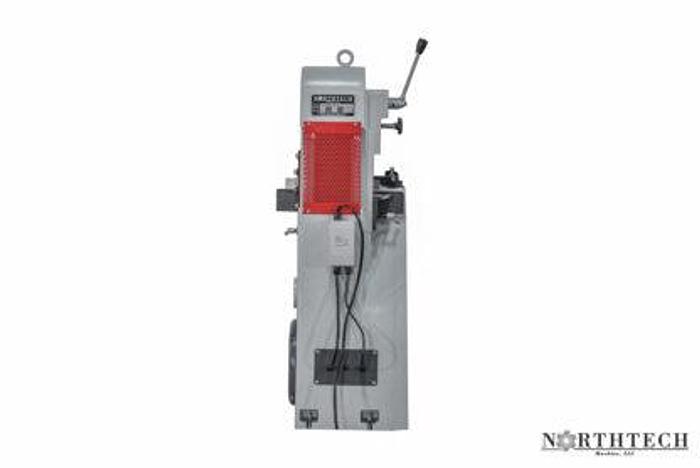

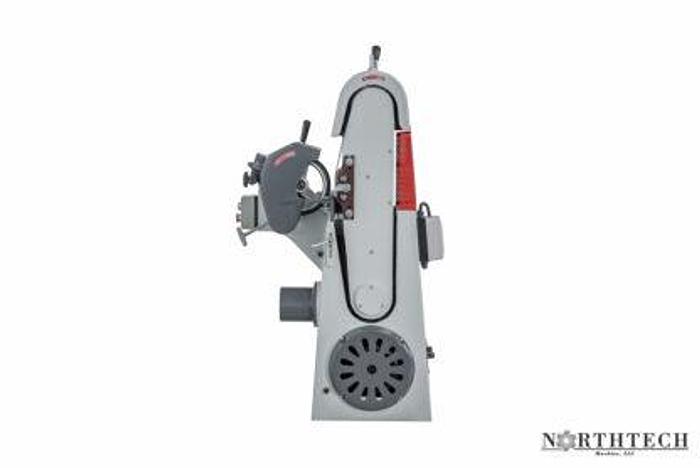

Northtech NT-RRS80B Round Rod Sander
orCall +1 (607) 678-4374
Description
The NT-RRS80B is a single head heavy duty sander specifically designed for round rods. It is a heavy duty industrial grade sander that rolls the part against the sanding belt as it is fed through the machine. Variable feed speed with varying sanding grits allows for a smooth sanded finish. This machine can be used for wood and other solid materials with a diameter range of 3/8″ to over 3″ diameter. This style machine is also offered in a (2)belt version for 2x the sanding power in a single pass.
Specifications
| Manufacturer | Northtech |
| Model | NT-RRS80B |
| Condition | New |
| Stock Number | NT-RRS80B |
| MACHINE HP | 3 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 8.6/17.2 Amps |
| CONFIGURATION | (2) 2-1/4'' x 6'' Rollers |
| FEED HP | Driven off Main motor |
| FEED SYSTEM | 8-3/4'' Canted Feed Wheel |
| DRIVE SYSTEM | 3 HP Main Motor |
| FEED SPEED RANGE | 18-45 FPM |
| VARIABLE FEED SPEED | Handle Adjustment |
| TOTAL MACHINE HP | 3 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt 60Hz |
| CONTROL VOLTAGE | Line Voltage |
| PASS-LINE | 31-7/8'' |
| MIN. WORKING LENGTH | 8'' |
| MIN. WORKING WIDTH | 3/8'' |
| MAX. WORKING WIDTH | 3-1/8'' |
| MIN. WORKING THICKNESS | 3/8'' |
| MAX. WORKING THICKNESS | 3-1/8'' |
| SANDPAPER SIZE | 5'' x 73'' |
| ROLLER TYPE | (2) 2-1/4'' x 6'' Rollers |
| 1st BELT SPEED | 3700 FPM |
| TRACKING STYLE | Manual Knob Adjustment |
| TENSION STYLE | Manual Handle Adjustment |
| DUST COLLECTION REQUIREMENT | 681 CFM @ Extraction Point |
| DUST PORT SIZE OUTLET | (1) 5'' Port |
| IDLE ROLLERS | (2) |
| HOLD DOWN STYLE | Feed Wheel |
| EMERGENCY STOP | (1) |
| GUARDING | Guard on Feed Wheel |
| OPERATION STYLE | Manual |
| FENCE TYPE | Adjustable |
| FRAME CONSTRUCTION | Cast Construction |
| TABLE CONSTRUCTION MATERIAL | Steel |
| DECIBEL RATING | 80 dB |
| NET WEIGHT | 616 Lbs. |
| GROSS WEIGHT | 716 Lbs. |
| MACHINE DIMENSIONS | 31'' x 19'' x 52'' |
| PACKAGING DIMENSIONS | 39'' x 27'' x 61'' |
