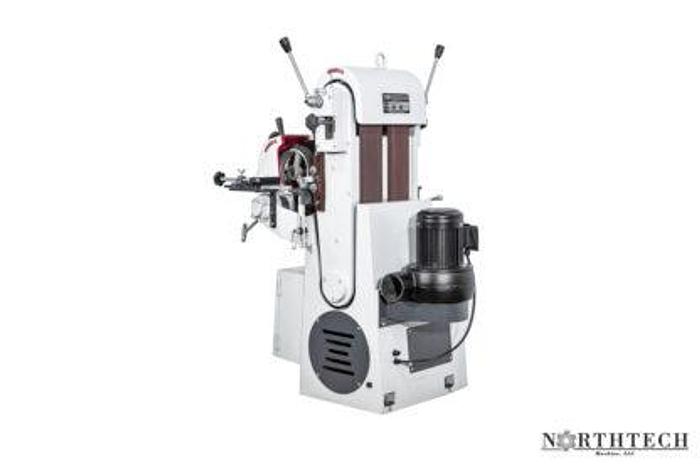

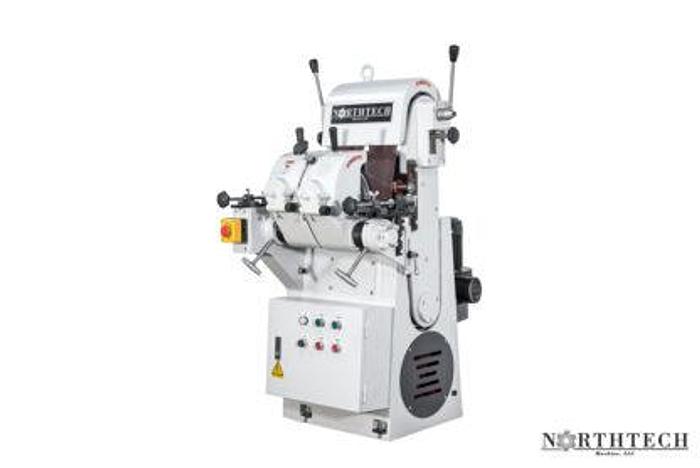

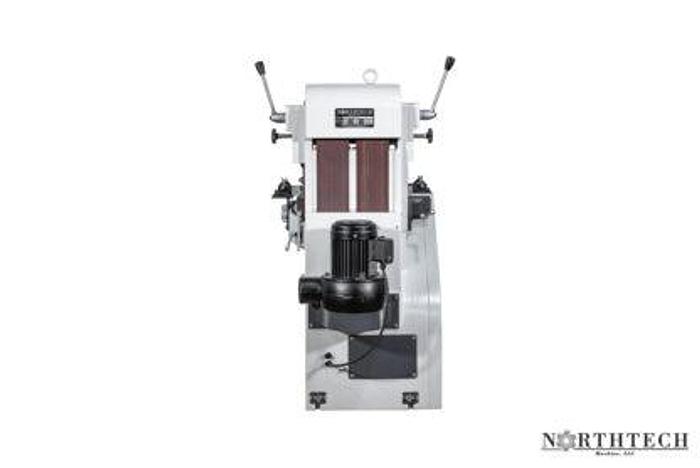

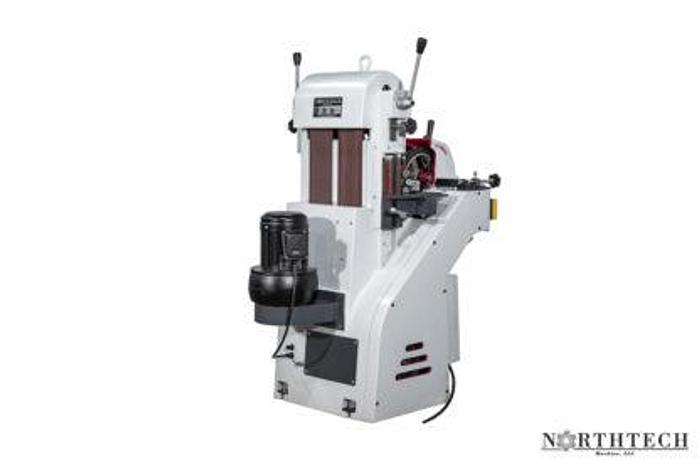

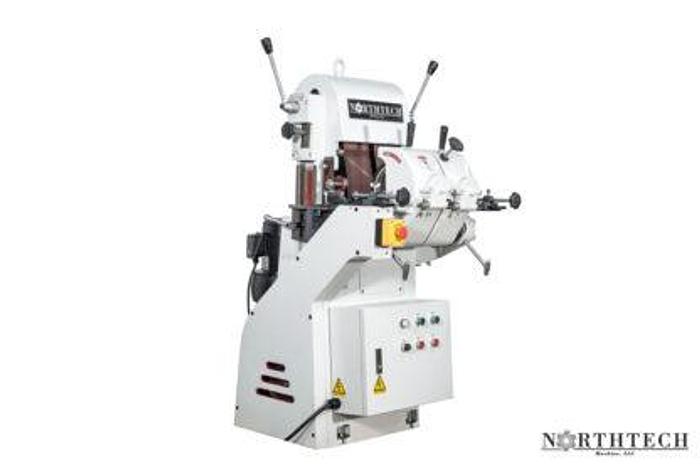

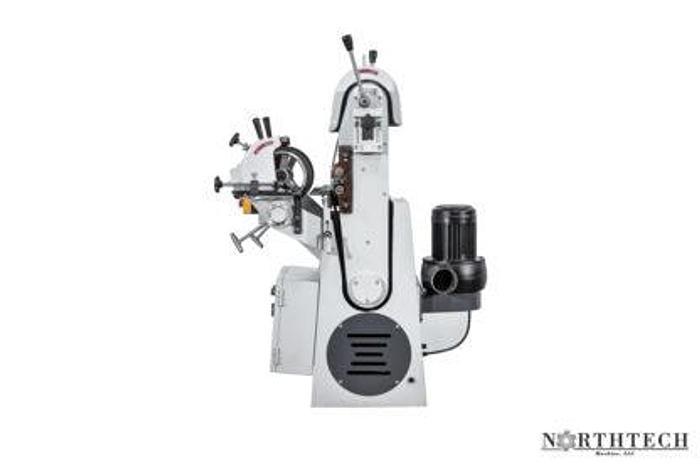

Northtech NT-RRS80B2 Round Rod Sander Double Belt

Northtech NT-RRS80B2 Round Rod Sander Double Belt
Contact us for price
Location:Dundee, NY
or
Call +1 (607) 678-4374
Description

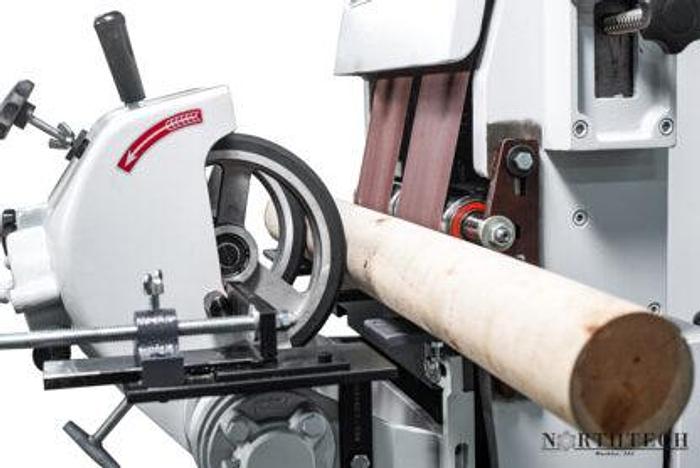

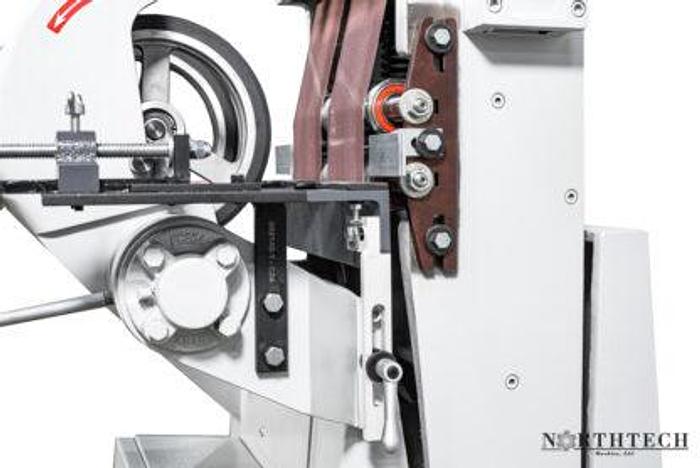

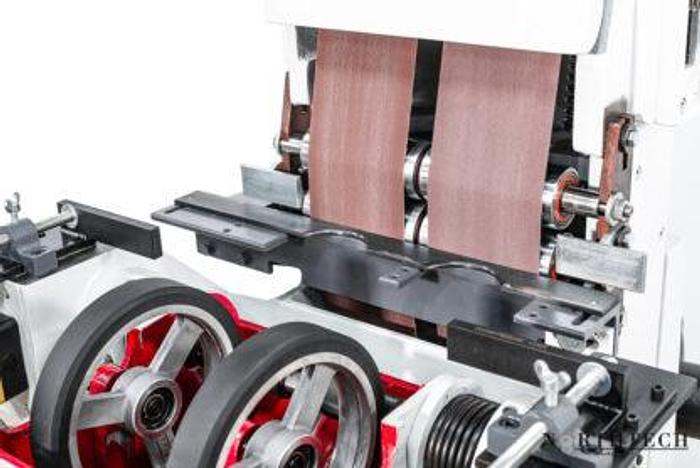

The NT-RRS80B2 is a two head heavy duty sander specifically designed for round rods. It is a heavy-duty industrial grade sander that rolls the part against the sanding belts as it is fed though the machine. Variable feed speed with varying sanding grits allows for a smooth sanded finish. This machine can be used for wood and other solid materials with a diameter range of 3/8″ to over 3″ diameter. This style machine is also offered in a single belt version for lighter jobs and a smaller footprint.
Specifications
| Manufacturer | Northtech |
| Model | NT-RRS80B2 |
| Condition | New |
| MACHINE HP | 6 HP |
| MAIN MOTOR HP | 5 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 7.9/15.8 Amps |
| FEED HP | Share 5 Hp Motor |

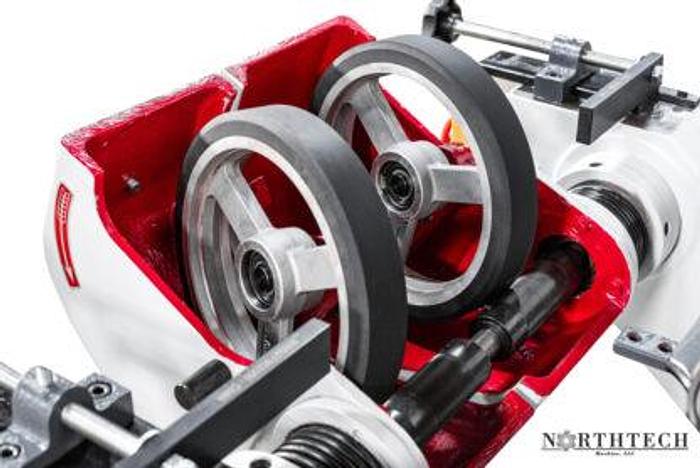

| FEED SYSTEM | (2) Canted Rollers |
| FEED SPEED RANGE | 20-50 FPM |
| VARIABLE FEED SPEED | Handle Adjustment |
| TOTAL MACHINE HP | 6 HP |
| APPROVED ELECTRICAL PARTS | CE Approve Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt 60Hz |

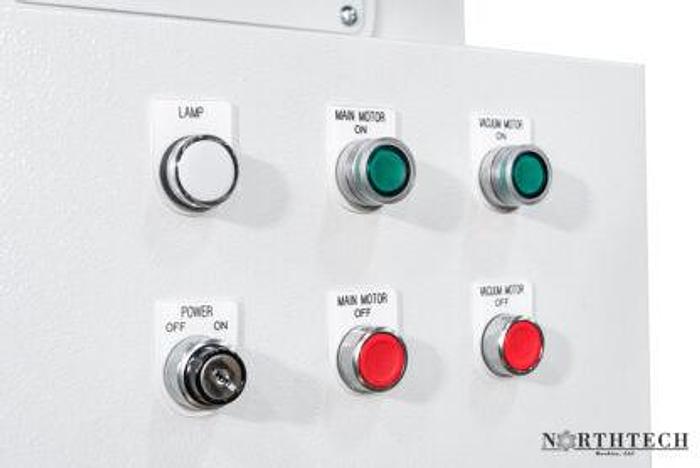

| CONTROL VOLTAGE | 110 Volt |
| PASS-LINE | 31-15/16;; |
| MIN. WORKING LENGTH | 7'' |
| MIN. WORKING WIDTH | 1/2'' |
| MAX. WORKING WIDTH | 3.125'' |
| MIN. WORKING THICKNESS | 1/2'' |
| MAX. WORKING THICKNESS | 3.125'' |
| NO. OF HEADS | (2) |
| SANDPAPER SIZE | 5'' x 73'' |
| ROLLER TYPE | (2) 2-1/4'' x 6'' Rollers |
| 1st BELT SPEED | 3720 RPM |
| 2nd BELT SPEED | 3720 RPM |
| TRACKING STYLE | Manual Knob Adjustment |
| TENSION STYLE | Manual Handle Adjustment |

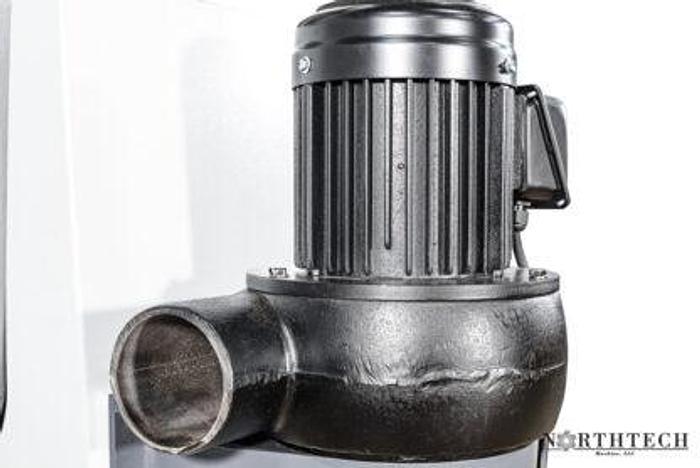

| DUST COLLECTION REQUIREMENT | 681 CFM @ Extraction Point |
| DUST PORT SIZE OUTLET | (1) 5'' |
| IDLE ROLLERS | (4) |
| HOLD DOWN STYLE | Feed Wheels |
| GUARDING | Guard on Feed Wheels |
| OPERATION STYLE | Manual |
| FENCE TYPE | Adjustable |
| FRAME CONSTRUCTION | Cast Construction |
| TABLE CONSTRUCTION MATERIAL | Steel |
| DECIBEL RATING | 83 dB |
| NET WEIGHT | 858 Lbs. |
| GROSS WEIGHT | 990 Lbs. |
| MACHINE DIMENSIONS | 38" x 26" x 53" |
| PACKAGING DIMENSIONS | 43'' x 25'' x 62'' |
