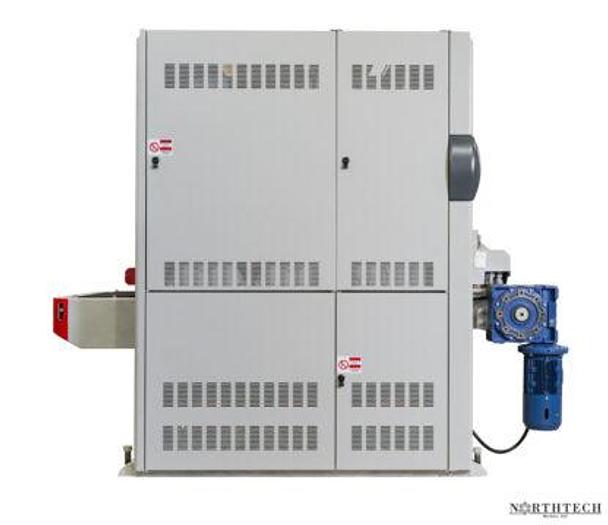

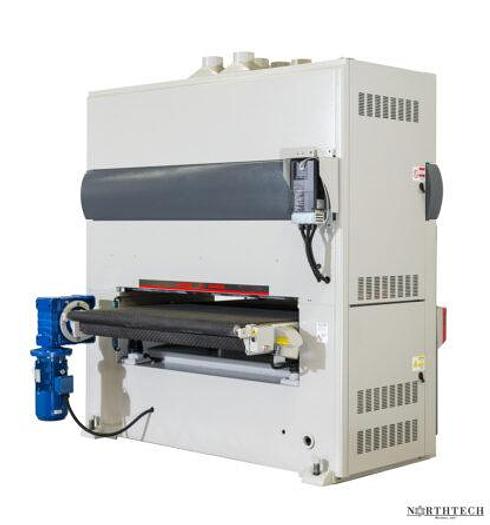

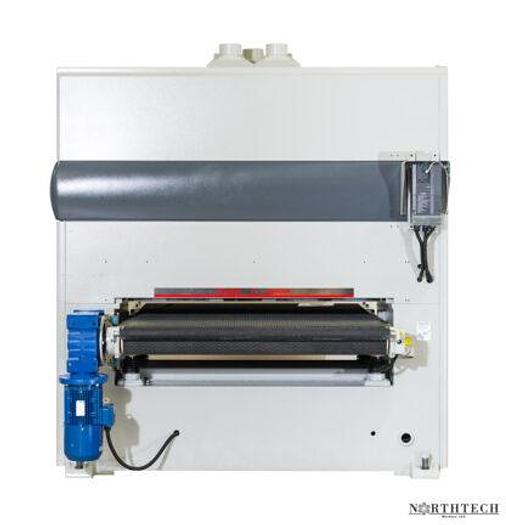

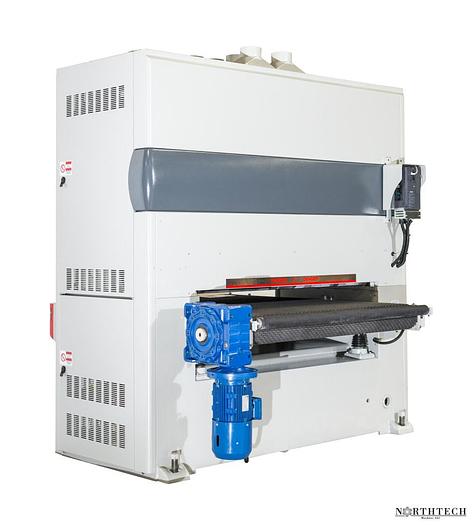

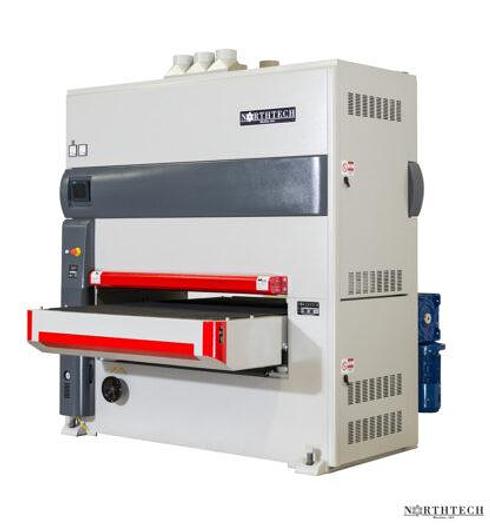

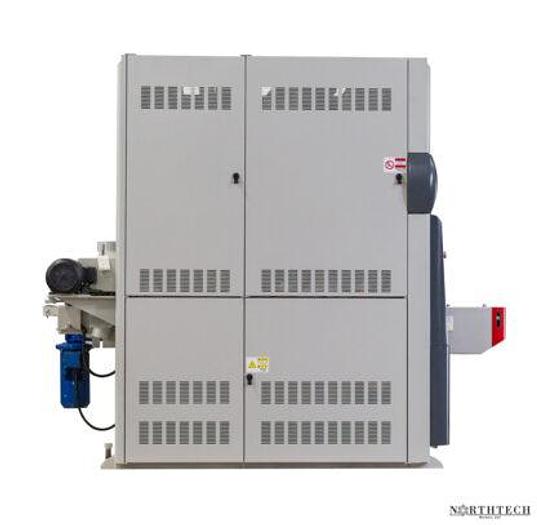

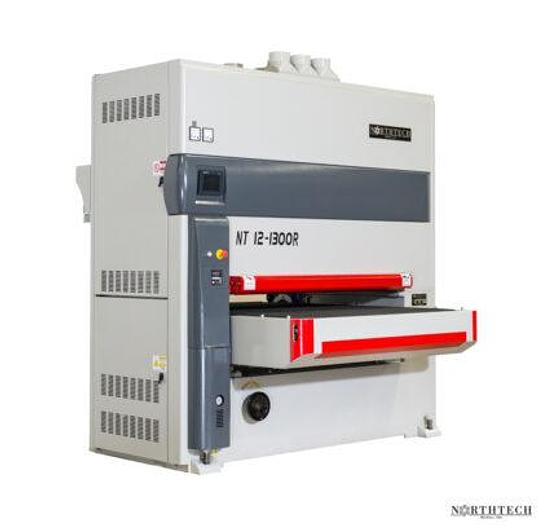

Northtech NT-10-1300RC 51'' Double Head Wide Belt Sander
orCall +1 (607) 678-4374
Description
While Northtech Wide Belt Sanders have been trusted for decades in wood shops of all sizes, 10
series machines are designed for industrial production use. The NT-10-1300RC is a two head wide
belt sander with a over 50″ of working width that is designed for multishift operations with added

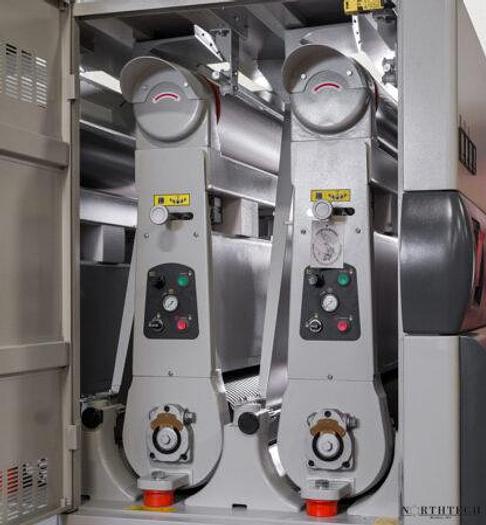

safety features and a massive fabricated steel frame. The configuration of 10″ Roller-Combination
allows for aggressive stock removal and a smooth stain ready finish in one pass. Available in a
bottom series and planer series with 85″ or 103″ belts, brush cleaner, and programable oscillating
belt cleaners.
Specifications
| Manufacturer | Northtech |
| Model | NT-10-1300RC |
| Condition | New |
| Stock Number | NT-10-1300RC |
| MACHINE HP | 59 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 149/74.5 HP |
| CONFIGURATION | Roller Combination |
| 1st HEAD | 30 HP Rubber Fluted Drum |
| 2nd HEAD | 25 HP 6'' Drum Combination Head |
| FEED HP | 3 HP |
| FEED SYSTEM | 52-3/4'' Rubber Feed Mat |
| DRIVE SYSTEM: | 3 HP Motor to Feed Mat |
| FEED SPEED RANGE | 15-60 FPM |
| VARIABLE FEED SPEED | Inverter Controlled |
| ELEVATION HP | 1 HP |
| ELEVATION STYLE | Digital Touch Screen |
| ELEVATION SYSTEM | (4) Post Jack Screw |
| TOTAL MACHINE HP | 59 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220 Volt |
| PROGRAMABLE | Elevation / Feed Speed |
| TOUCH SCREEN | 7'' Touch Screen |
| PASS-LINE | 30-3/8'' - 36'' |
| MIN. WORKING LENGTH | 19'' |
| MAX. WORKING WIDTH | 53'' |
| MIN. WORKING THICKNESS | .169'' |
| MAX. WORKING THICKNESS | 5.906'' |
| NO. OF HEADS | 2 Heads |
| SANDPAPER SIZE | 53-1/4'' x 85'' |
| PLATEN SPECIFICATIONS | 3-1/2'' x 53-1/4'' |
| 1st BELT SPEED | 4900 FPM |
| 2nd BELT SPEED | 2950 FPM |
| OSCILLATION STYLE | Photo Eye |
| OSCILLATION RATE | Adjustable |
| OSCILLATION TRAVEL | 3/8'' |
| CLEANING SYSTEM | Jet Blow Off Photo Eye (2) Paper jet Blow Of |
| TRACKING STYLE | Photo Eye Pneumatic Cylinder |
| TENSION STYLE | Pneumatic Cylinder |
| DUST COLLECTION REQUIREMENT | 681 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (8) 5'' Ports |
| IDLE ROLLERS | (4) Top Idle Rollers |
| PRESSURE SHOES | (2) Top Pressure Shoes |
| HOLD DOWN STYLE | Idle Rollers / Pressure Shoes |
| FLR INCLUDED | Filter, Lubricator, Regulator |
| CFM AIR SUPPLY REQUIREMENT | (2) 3/8'' Line @ 90 PSI |
| EMERGENCY STOP | (1) Front |
| REAR E STOP | (1) Rear |
| GUARDING | Full Enclosure |
| OPERATION STYLE | Automatic |

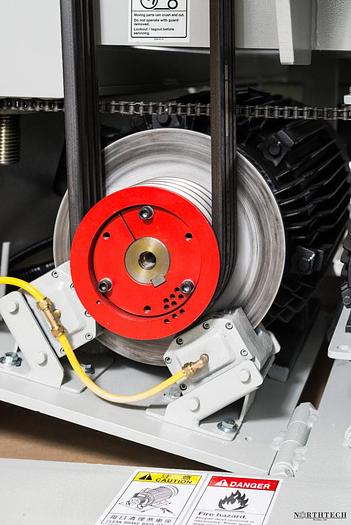

| BRAKE SYSTEM | Dual Pneumatic Caliper Brakes |
| FRAME CONSTRUCTION | Steel Construction |
| TABLE CONSTRUCTION MATERIAL | Steel |
| MEASURING METHOD | Encoder |
| DECIBEL RATING | 76 dB |
| NET WEIGHT | 9068 Lbs. |
| GROSS WEIGHT | 8643 Lbs. |
| MACHINE DIMENSIONS | 83'' x 83'' x 83'' |
| PACKAGING DIMENSIONS | 91'' x 92'' x 84'' |
