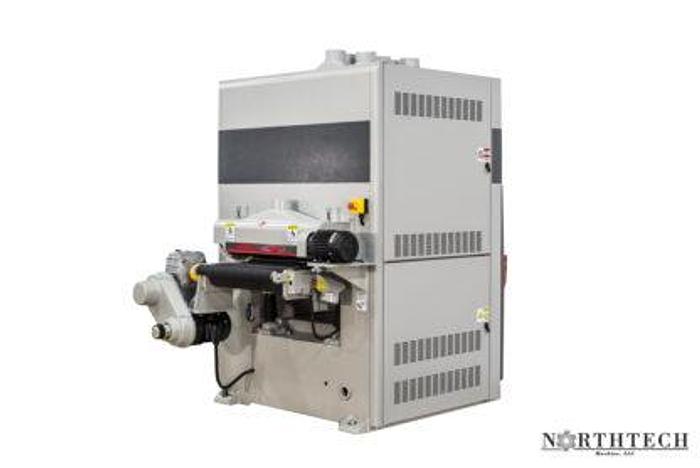

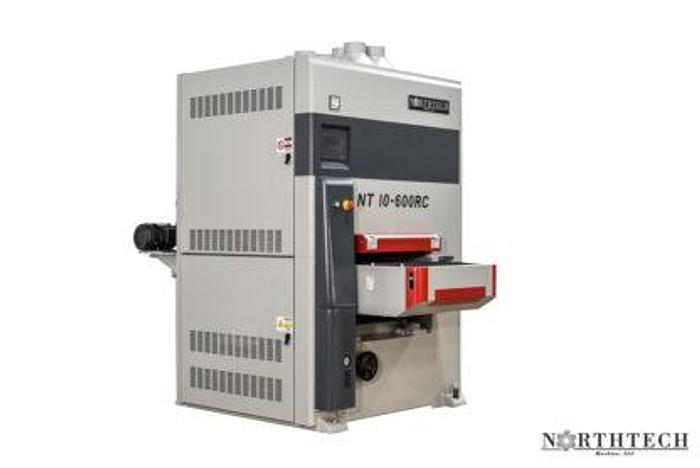

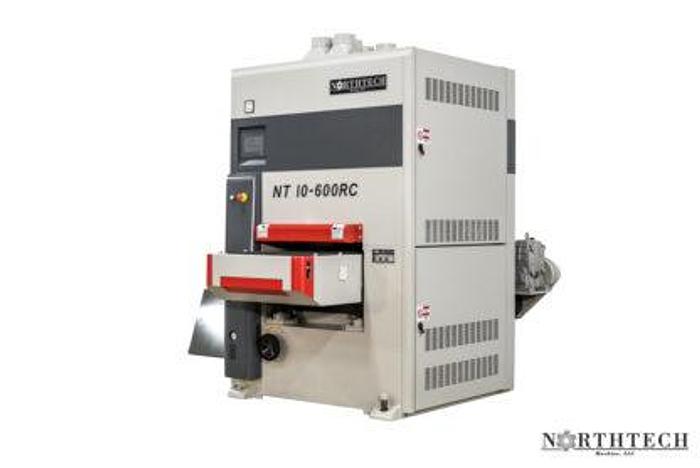

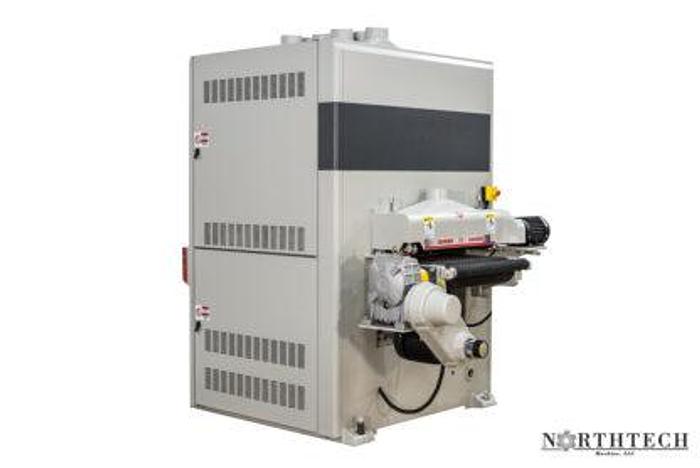

Northtech NT-10-600RC 24'' Double Head Wide Belt Sander
orCall +1 (607) 678-4374
Description
While Northtech Wide Belt Sanders have been trusted for decades in wood shops of all sizes, the 10
series machines are designed for industrial production use. The NT-10-610RC is a two head wide
belt sander with 24″ of working width that is designed for multishift operations with added safety
features and a massive fabricated steel frame. The 10″ contact drum and combination head
configuration provides excellent stock removal with a smooth finish. Available in a bottom series
with 85″ or 103″ belts, brush cleaner, and programable oscillating belt cleaners.
Specifications
| Manufacturer | Northtech |
| Model | NT-10-600RC |
| Condition | New |
| Stock Number | NT-10-600RC |
| MACHINE HP | 38 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 92/46 Amps |
| CONFIGURATION | Roller / Combination |
| 1st HEAD | 20 HP Rubber Fluted Roller |
| 2nd HEAD | 15 Hp Combination Head |
| BRUSH MOTOR HP | 1/2 Hp. |
| FEED HP | 2 HP |
| FEED SYSTEM | 24'' Rubber Feed Mat |
| DRIVE SYSTEM | 2 Hp Motor Gear Box |
| FEED SPEED RANGE | 20-80 FPM |
| VARIABLE FEED SPEED | Adjustable Pulley Knob |
| ELEVATION HP | 1/2 HP |
| ELEVATION STYLE | Digital Readout |
| ELEVATION SYSTEM | (4) Post Jack Screw |
| TOTAL MACHINE HP | 38 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220 Volt |
| PROGRAMABLE | Elevation |
| TOUCH SCREEN | 7'' Touch Screen |
| MIN. WORKING LENGTH | 19'' |
| MAX. WORKING WIDTH | 24'' |
| MIN. WORKING THICKNESS | .155'' |
| MAX. WORKING THICKNESS | 5.8'' |
| SANDPAPER SIZE | 25'' x 85'' |
| PLATEN SPECIFICATIONS | 1-3/4'' x 25'' |
| 1st BELT SPEED | 4800 FPM |
| 2nd BELT SPEED | 3000 FPM |
| OSCILLATION STYLE | Photo Eye |
| OSCILLATION RATE | Adjustable |
| OSCILLATION TRAVEL | 3/8'' |
| CLEANING SYSTEM | Jet Blow Off Photo Eye (2)Jet Blow Off on Sandpaper |
| TRACKING STYLE | Photo Eye Pneumatic Cylinder |
| TENSION STYLE | Pneumatic Cylinder |
| VERTICAL TRAVEL | 6'' |
| DUST COLLECTION REQUIREMENT | 681 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (8) 5'' Ports |
| CONVEYOR | 24'' Feed Mat |
| IDLE ROLLERS | (4) Top Idle Rollers |
| PRESSURE SHOES | (2) Top Pressure Shoes |
| HOLD DOWN STYLE | Idle Rollers Pressure Shoe |
| FLR INCLUDED | Filter, Lubricator, Regulator |
| CFM AIR SUPPLY REQUIREMENT | (2) 3/8'' Line @ 90 PSI |
| EMERGENCY STOP | (1) Font |
| REAR E STOP | (1) Rear |
| GUARDING | Full Enclosure |
| BRAKE SYSTEM | Dual Pneumatic Caliper |
| FRAME CONSTRUCTION | 1/4'' Steel |
| TABLE CONSTRUCTION MATERIAL | Steel |
| NET WEIGHT | 6500 Lbs. |
| GROSS WEIGHT | 6850 Lbs. |
| MACHINE DIMENSIONS | 89'' x 55'' x 84'' |
| PACKAGING DIMENSIONS | 51'' x 91'' x 78'' |
