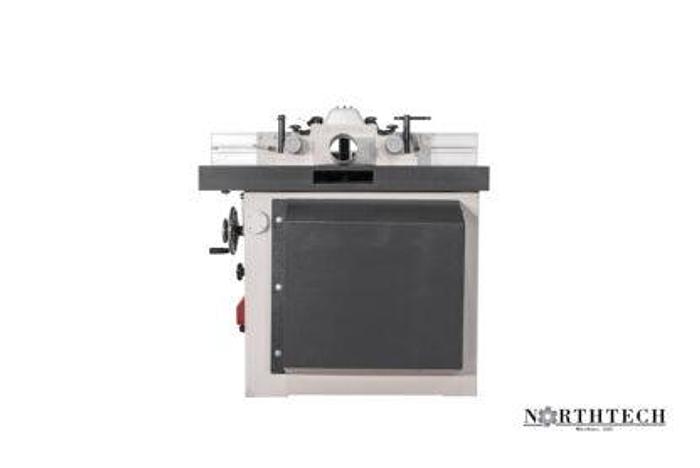

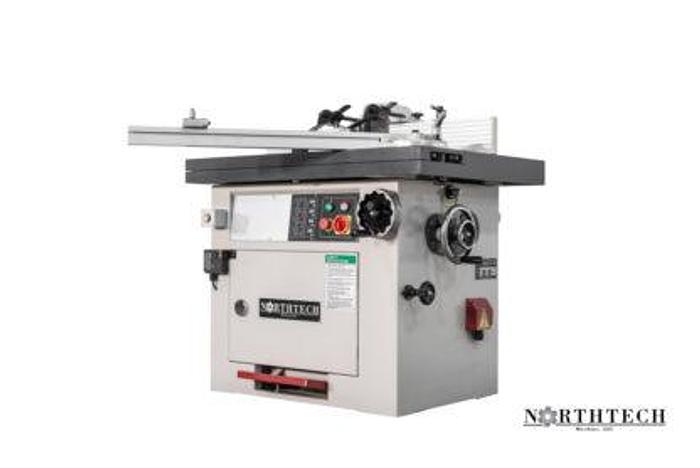

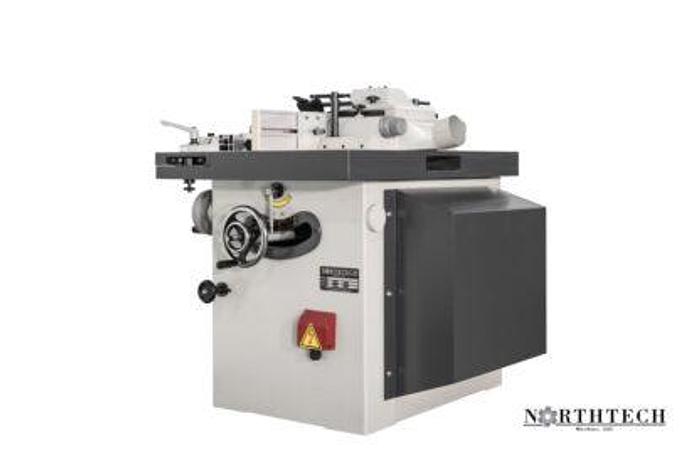

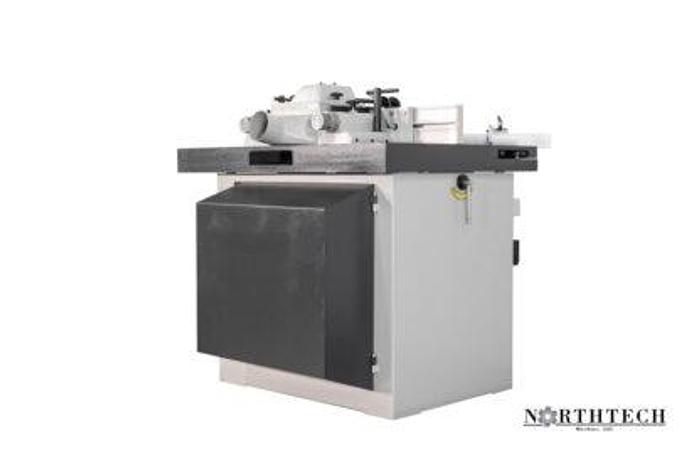

Northtech NT-625TS 7.5HP Shaper With Tilting Spindle & Sliding Table

Northtech NT-625TS 7.5HP Shaper With Tilting Spindle & Sliding Table

Contact us for price

Get Financing

Location:Dundee, NY

or
Call +1 (607) 678-4374

Description

NT-625TS SHAPER WITH TILTING SPINDLE, SLIDING TABLE

The NT 625TS is the 625 shaper equipped with a sliding table and tilting spindle. The 625 series

features a large stable base and foot-operated brake for quick spindle stop. The oversized precision

ground table on a solid steel cabinet provides stable vibration-free milling. The 7.5HP 4-speed

interchangeable spindle provides flexibility for customer-specific applications.


Show All

Specifications

ManufacturerNorthtech
ModelNT-625TS
ConditionNew
Stock NumberNT-625TS
MACHINE HP7.5 HP
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE3 Phase
AMP REQUIREMENT21/10.5 Amps
SPINDLE LENGTH5'
SPINDLE DIAMETER1-1/4''

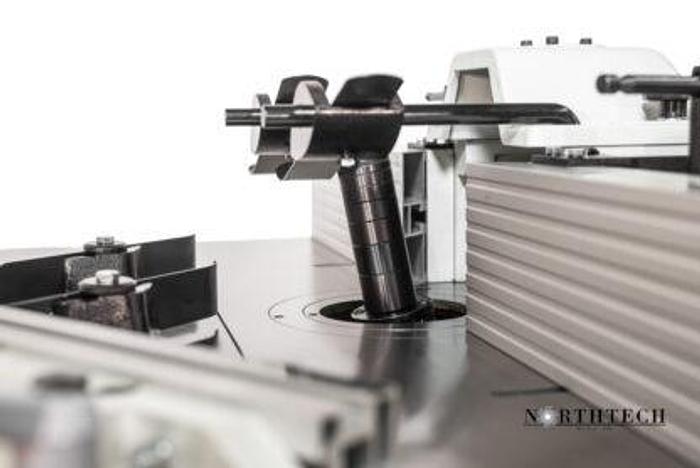

SPINDLE RPM3000, 4400, 6000, 9800 RPM

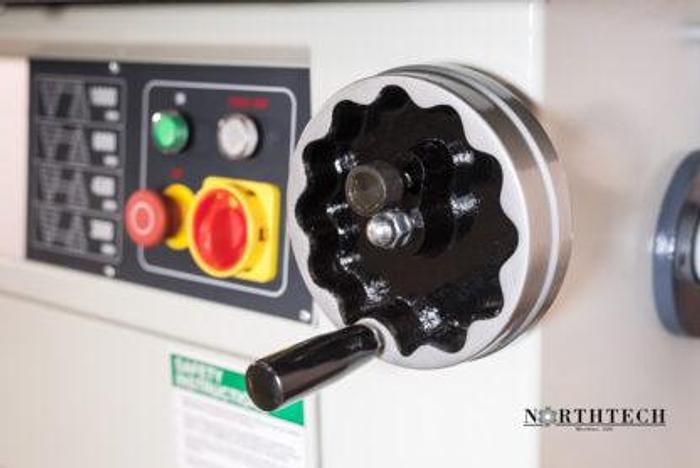

ELEVATION STYLEManual Wheel Adjustment
ELEVATION SYSTEMQuill Housing / Jack Screw
APPROVED ELECTRICAL PARTSCE Approved Parts
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
PASS-LINE33-3/4
VERTICAL TRAVEL5-1/4''
DUST COLLECTION REQUIREMENT436 CFM @ Extraction Points
DUST PORT SIZE OUTLET(1) 4''
FENCE TYPEAdjustable
FENCE DIMENSIONS(2) 5'' x 17''
MICRO FENCEKnob Adjustment
SLIDING TABLE TRAVEL19-1/2'' Each Direction
FRAME CONSTRUCTIONSteel
WORKTABLE DIMENSIONS41-1/8'' x 31-1/2''
TABLE CONSTRUCTION MATERIALCast
DECIBEL RATING70 dB
NET WEIGHT1095 Lbs.
GROSS WEIGHT1216 Lbs.
MACHINE DIMENSIONS42'' x 38'' x 42''
PACKAGING DIMENSIONS46'' x 44'' x 48''
