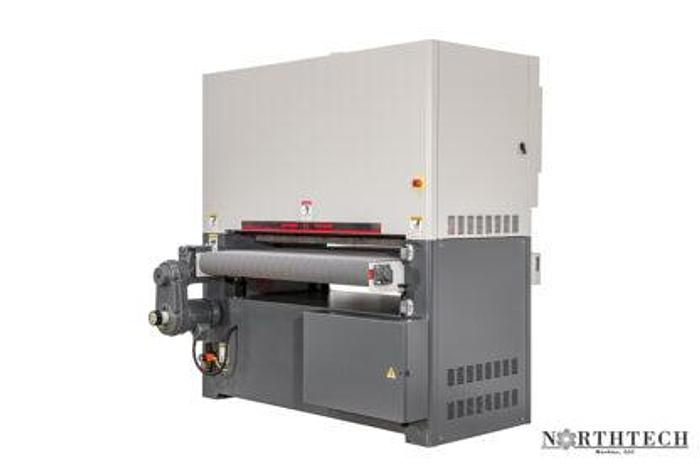

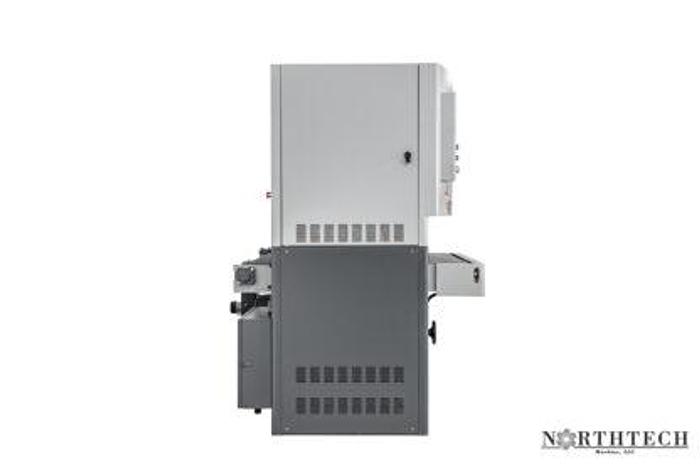

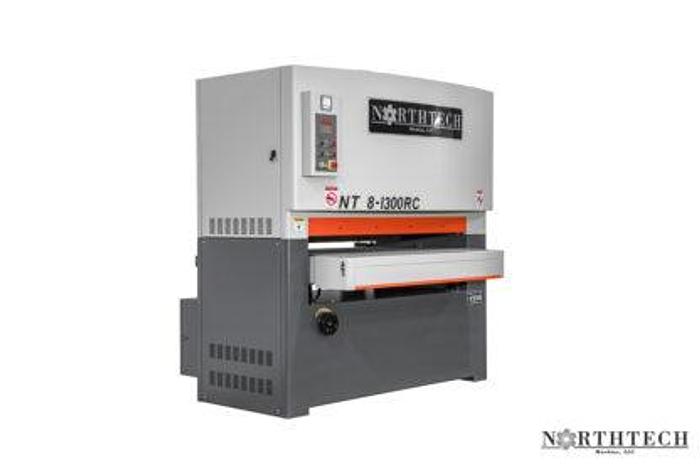

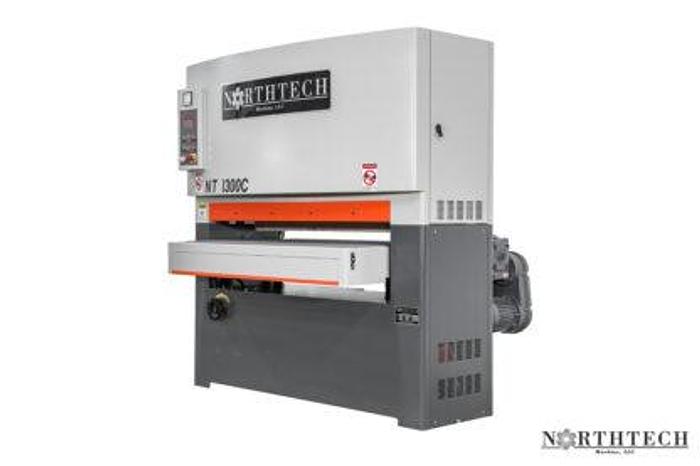

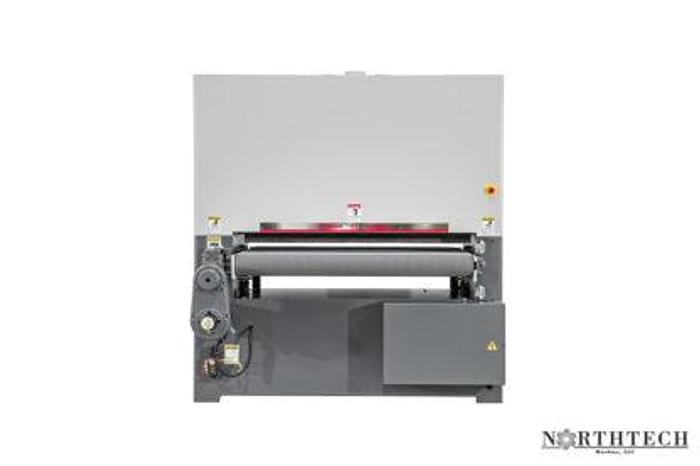

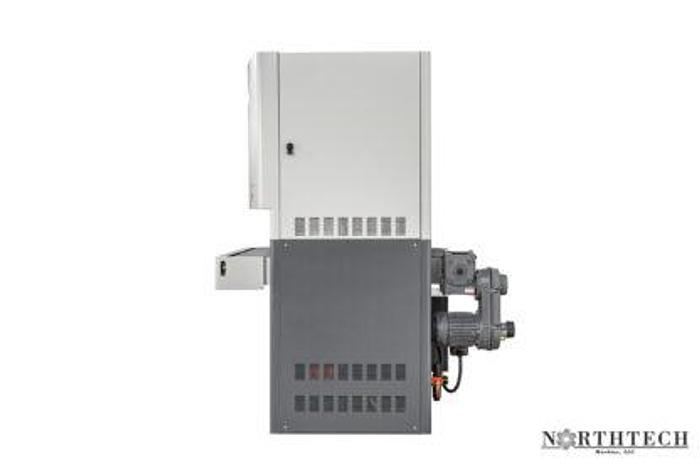

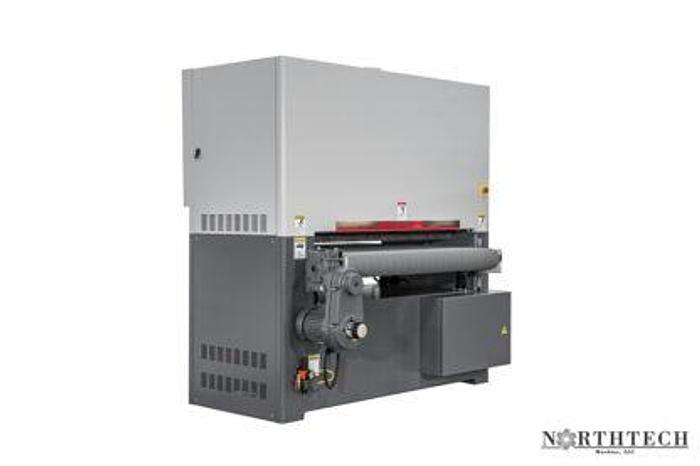

Northtech NT-8-1300RC 52'' Double Head Wide Belt Sander
Northtech NT-8-1300RC 52'' Double Head Wide Belt Sander
Contact us for price
Location:Dundee, NY
or
Call +1 (607) 678-4374
Description
NT-8-1300RC WIDE BELT SANDER
The NT-8-1300RC is a two-head wide belt sander that has a 51″ working width and comes standard
with 52″ x 75″ belts and variable speed invisible seam feed mat. The rugged 8″ rubber contact
drum provides extra sanding capability and the combination head provides a smooth finish. This
series features a heavy steel frame design and digitally positioned elevation control with close to 6″
opening and independent start/stop controls for the feed and belt.
Specifications
| Manufacturer | Northtech |
| Model | NT-8-1300RC |
| Condition | New |
| Stock Number | NT-8-1300RC |
| MACHINE HP | 32 HP |
| MAIN MOTOR HP | 30 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 76/38 Amps |
| CONFIGURATION | Roller / Combination |
| 1st HEAD | 8'' Fluted Rubber Drum |
| 2nd HEAD | 4'' Roller Combination Head |
| FEED HP | 2 HP |
| FEED SYSTEM | 51'' Rubber Feed Mat |
| DRIVE SYSTEM | Motor To Gear Box |
| FEED SPEED RANGE | 15-55 FPM |
| VARIABLE FEED SPEED | Manual Adjustable Clutch |
| ELEVATION HP | 1/4 HP |
| ELEVATION STYLE | Digital Controller |
| ELEVATION SYSTEM | (4) Post Jack Screw |
| TOTAL MACHINE HP | 32-1/4 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220 Volt |
| PROGRAMABLE | Elevation |
| PASS-LINE | 32'' - 37.5'' |
| MIN. WORKING LENGTH | 12'' |
| MAX. WORKING WIDTH | 51-1/8'' |
| MIN. WORKING THICKNESS | .155'' |
| MAX. WORKING THICKNESS | 5.83'' |
| SANDPAPER SIZE | 52'' x 75'' |
| PLATEN SPECIFICATIONS | 1-3/4'' x 52-1/8'' |
| 1st BELT SPEED | 3675 FPM |
| 2nd BELT SPEED | 2700 FPM |
| OSCILLATION STYLE | Photo Eye |
| OSCILLATION RATE | Adjustable |
| OSCILLATION TRAVEL | 3/8'' |
| CLEANING SYSTEM | Jet Blow Off Photo Eye |
| TRACKING STYLE | Phot Eye Pneumatic Cylinder |
| TENSION STYLE | Pneumatic Cylinder |
| VERTICAL TRAVEL | 6'' |
| DUST COLLECTION REQUIREMENT | 681 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (8) 5'' Ports |
| DIGITAL DISPLAY | Elevation |
| CONVEYOR | 51'' Rubber Feed Mat |
| IDLE ROLLERS | (3) Top Idle Rollers |
| PRESSURE SHOES | (3) Top Pressure Shoes |
| HOLD DOWN STYLE | Idle Rollers Pressure Shoes |
| FLR INCLUDED | Filter, Lubricator, Regulator |
| CFM AIR SUPPLY REQUIREMENT | 3/8'' Line @ 90 PSI |
| EMERGENCY STOP | (1) Font |
| REAR E STOP | (1) Rear |
| GUARDING | Full Enclosure |
| BRAKE SYSTEM | Dual Pneumatic Caliper |
| FRAME CONSTRUCTION | 1/4'' Steel |
| TABLE CONSTRUCTION MATERIAL | Steel |
| DECIBEL RATING | 75 dB |
| NET WEIGHT | 3540 Lbs. |
| GROSS WEIGHT | 3885 Lbs. |
| MACHINE DIMENSIONS | 71'' x 60'' x 75'' |
| PACKAGING DIMENSIONS | 74'' x 62'' x 85'' |
