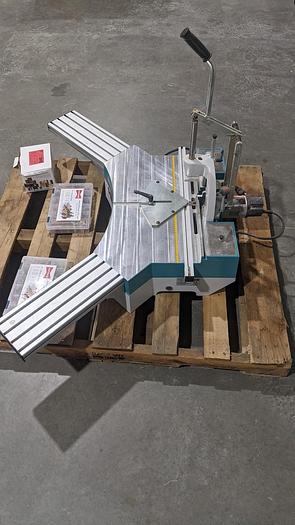

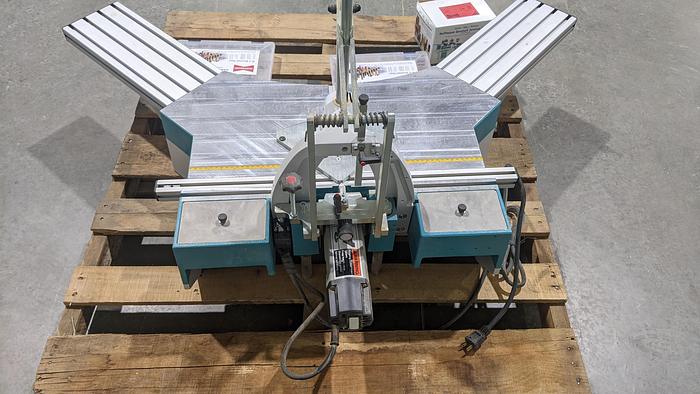

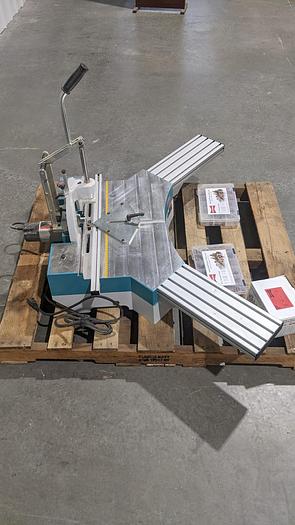

Hoffmann MU3 Manual Dovetail Routing Machine


Hoffmann MU3 Manual Dovetail Routing Machine

Dundee, NY

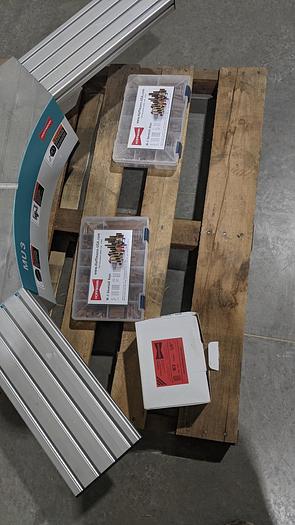

Used Like New comes with splines and extension tables

Standard Features:

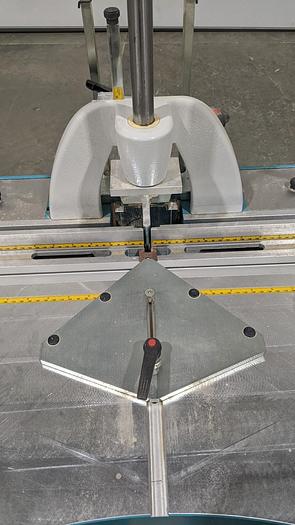

Hoffmann Dovetail Routing Machine, model MU 3, ready for operation, W-2 solid carbide router bit installed, standard 45 degree center fence plate, center line locator and square stop, motor fine adjustment, covered parts storage, toolkit and manual.

Technical data

Power Supply        120 volts – 7.4 Amps

Motor               885 Watt motor with double front bearing

Motor speed         35,000 rpm at idle

Collet size           1/4”

Motor carriage guides  20mm diameter guide rods, precision ground

Operation           manual– dual action design

Max. height routing    3 3/8” – 85mm / moulding 5 1/8” – 130mm

Dust collection port    2” – 50mm diameter

Installed router bit     W-2, solid carbide

Available router bits   W-0, W-1, W-2, W-3 (W-4 with optional larger motor)

Dimensions W/D/H    29 1/8” x 25 5/8” x 32 3/4” (without optional table extensions)

Weight             70.4 lbs.

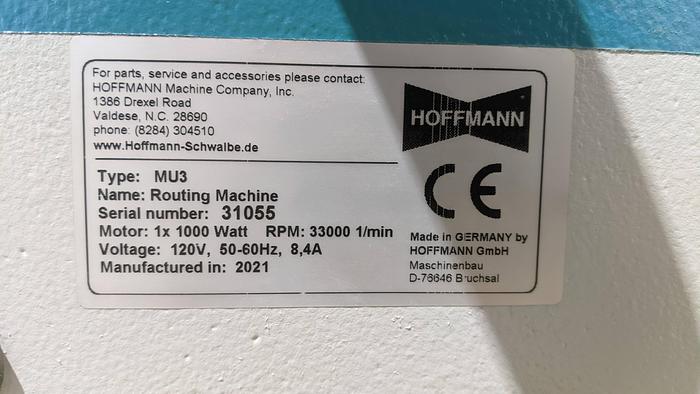

Serial Number31055
