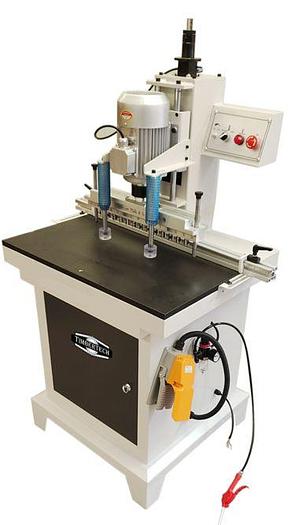

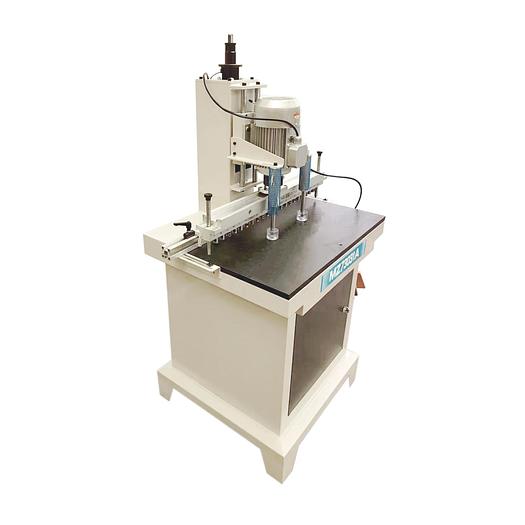

Timbertech T-LBM-13 13 Spindle Line Boring Machine

Timbertech T-LBM-13 13 Spindle Line Boring Machine

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

"The Timbertech T-LBM-21 Line Boring Machine is engineered

to enhance the efficiency of your line drilling operations.

Featuring a total of 21 spindles set at 32mm intervals, this

machine is designed for precision and speed.

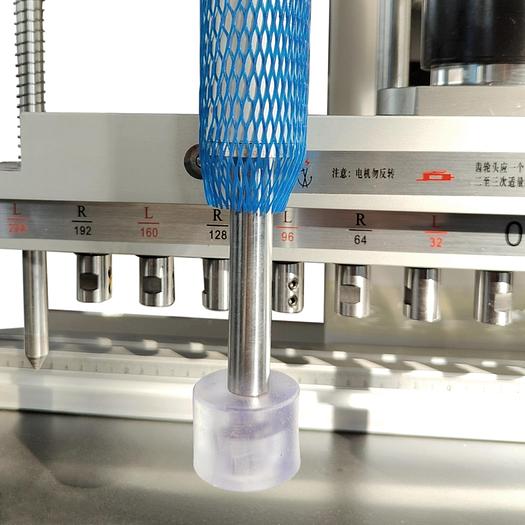

Equipped with spring-loaded index pins, the T-LBM-21 enables accurate

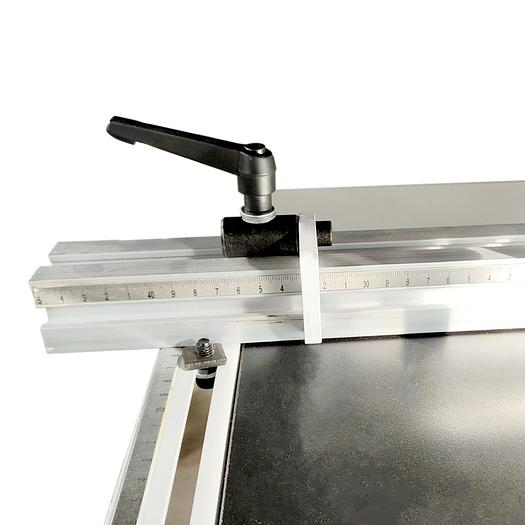

and seamless continuous line drilling. The precision rear aluminum fence,

complete with a linear scale and two flip stops, ensures a meticulous and

user-friendly setup. The entire back fence is adjustable to accommodate

various measurements from the panel edge to the holes.

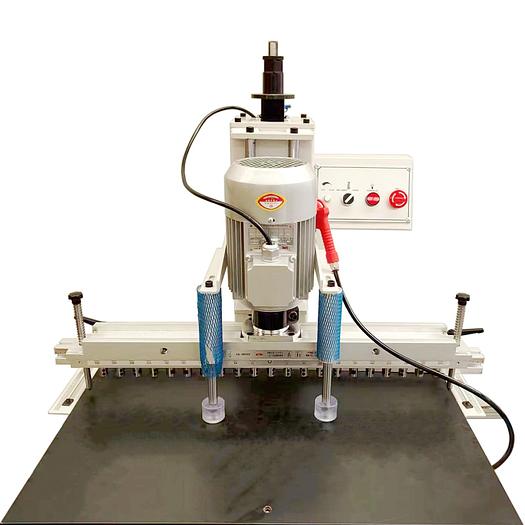

The machine's precision boring head boasts interlocking steel gears

and alternating spindles, accepting industry-standard boring bits with

10mm shank. For added convenience, a foot pedal initiates the drilling cycle,

allowing your hands to swiftly adjust the workpiece for the next operation.

Specifications

ManufacturerTimbertech
ModelT-LBM-13
ConditionNew
Motor2 HP, 220V, single-phase
FeedVariable Speed Air Powered
Spindle travel2’’
Spindle speed3450 RPM
Drill Bit TypeFlat shank boring bits
Drill bit capacity10 mm
Air requirement70 PSI
Table Size29" W x 24" D
Floor to table height32”
Distance between spindle centers32mm
Number of spindles on the boring head13
Fence length40”
Footprint24" x 24”
Approximate shipping weight400 lbs.
Overall Dimensions40" W x 25" D x 61" H
