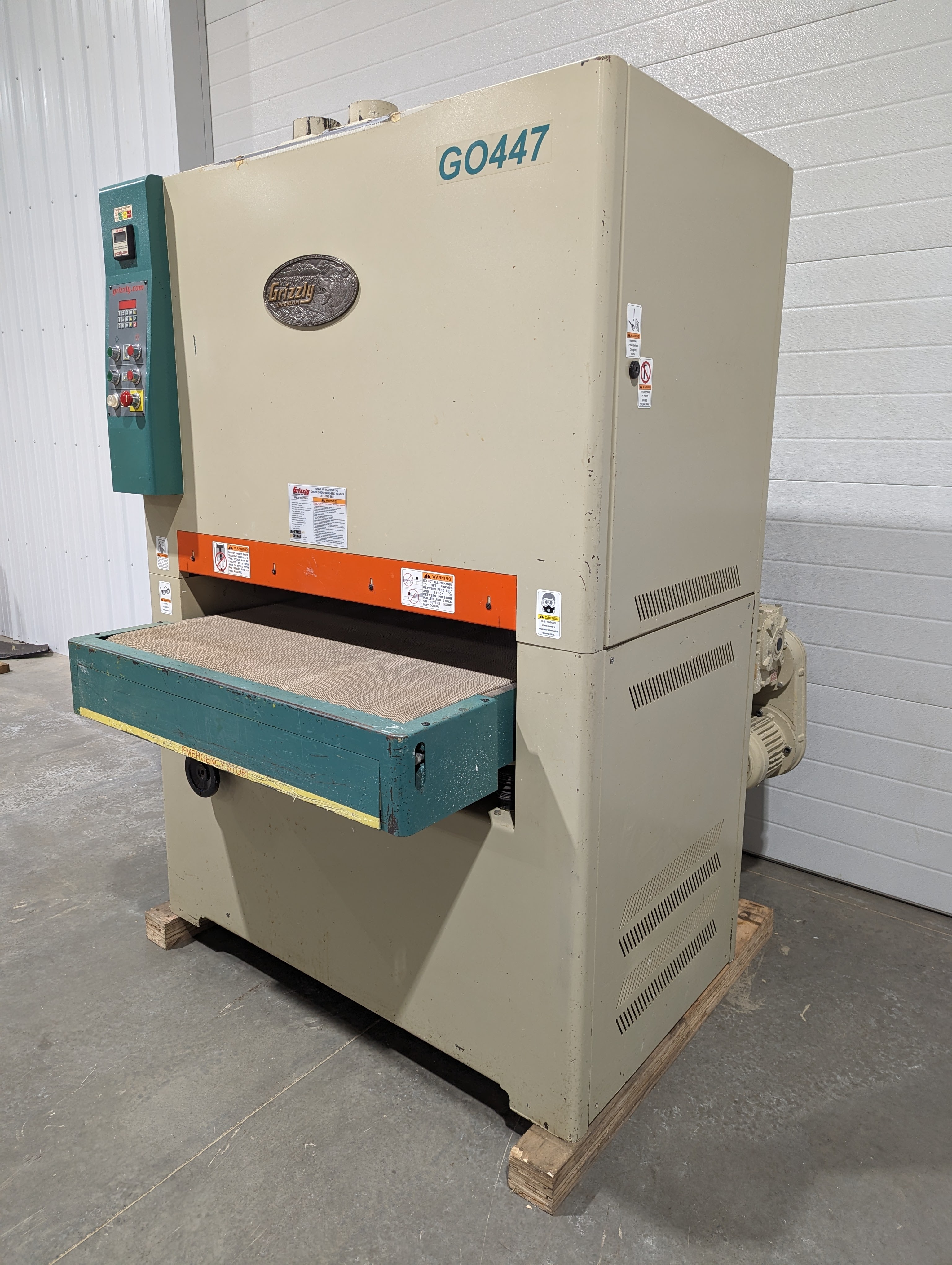

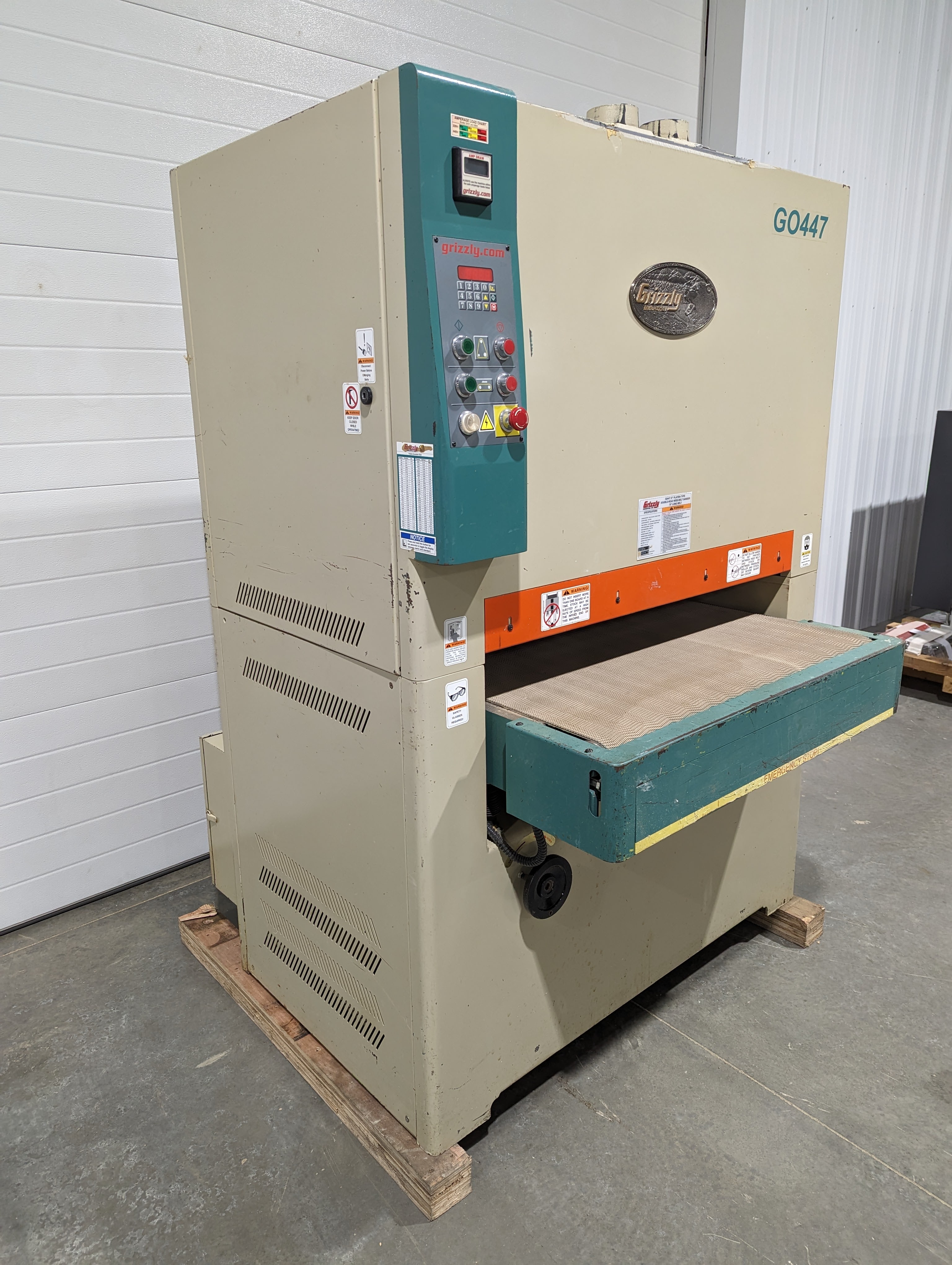

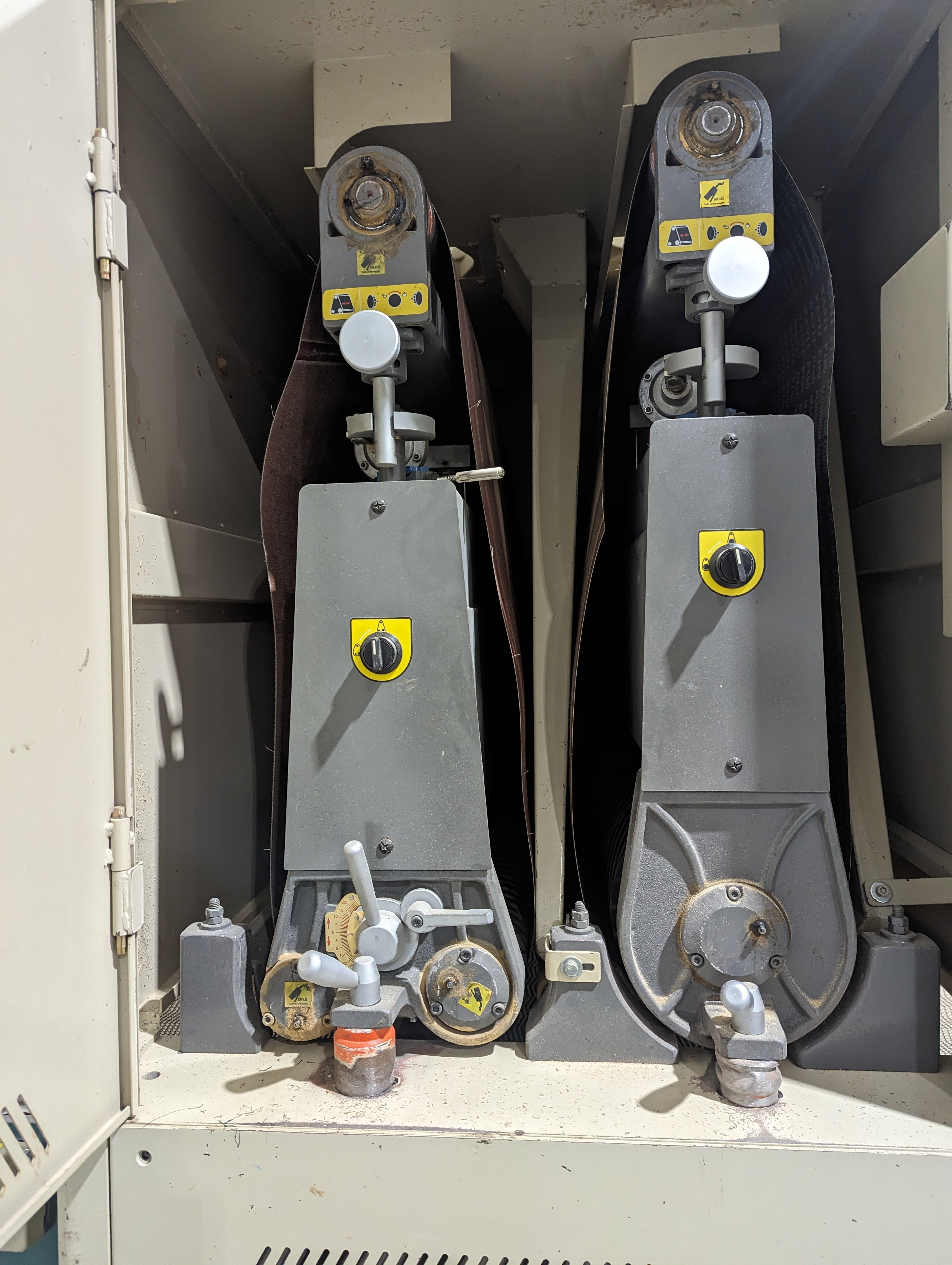

Grizzly G0447 37" 20 HP 3-Phase Double Head Wide-Belt Sander

Grizzly G0447 37" 20 HP 3-Phase Double Head Wide-Belt Sander

$10,000 (USD)

Dundee, NY

orCall +1 (607) 243-7167

Description

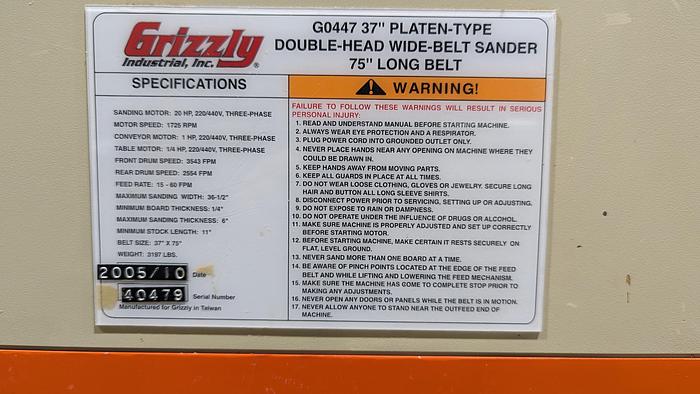

SPECIFICATIONS:

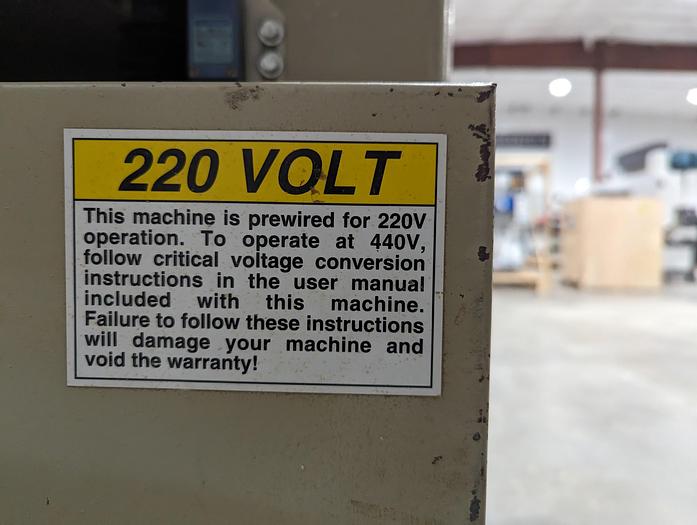

Sanding motor HP: 20 HP, 220V/440V*, 3-phase, 50.3A/25.1A

Conveyor motor HP: 1 HP, 3.4A/1.7A

Table lift motor HP: 1/4 HP, 1.2A/0.6A

Maximum board width: 36-1/2"

Maximum board thickness: 6"

Minimum board length: 11"

Minimum board thickness: 3/16"

Front drum surface speed: 3500 FPM

Rear drum surface speed: 2600 FPM

Conveyor speed: 14–60 FPM

Sanding belt size: 37" x 75"

Air requirement: 57–75 PSI, 12.3 CFM

Dust ports: 6 x 5"

Footprint: 52" x 31"

Overall dimensions: 53-1/2" W x 59-1/2" D x 79" H

Approx. shipping weight: 2920 lbs.


FEATURES:

Rubber pressure rollers

Hard rubber infeed drum

Adjustable graphite platen

Digital encoder depth control

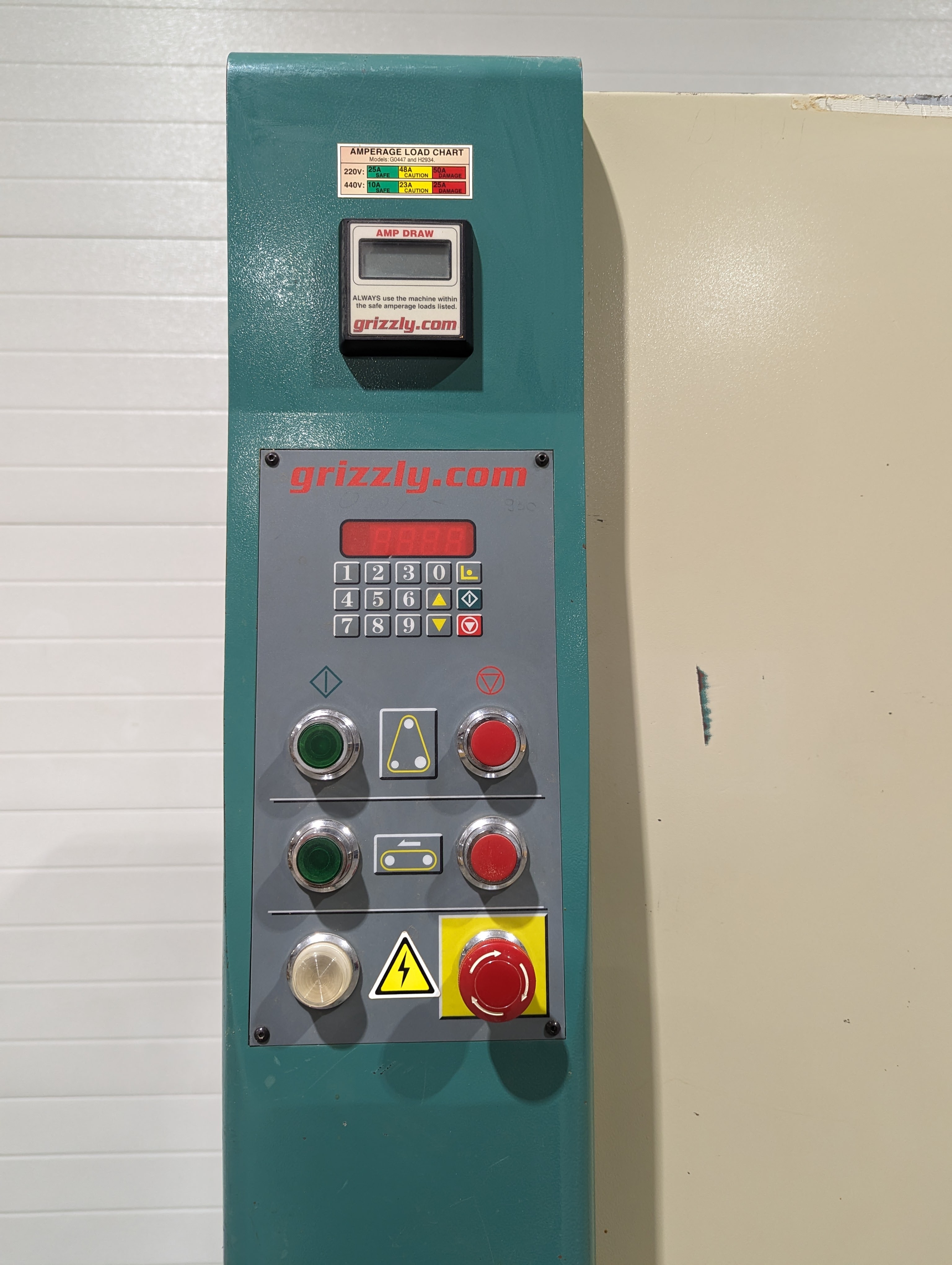

Amp/load meter

Disc brake for emergency stop

Variable feed speed

Specifications

ManufacturerGrizzly

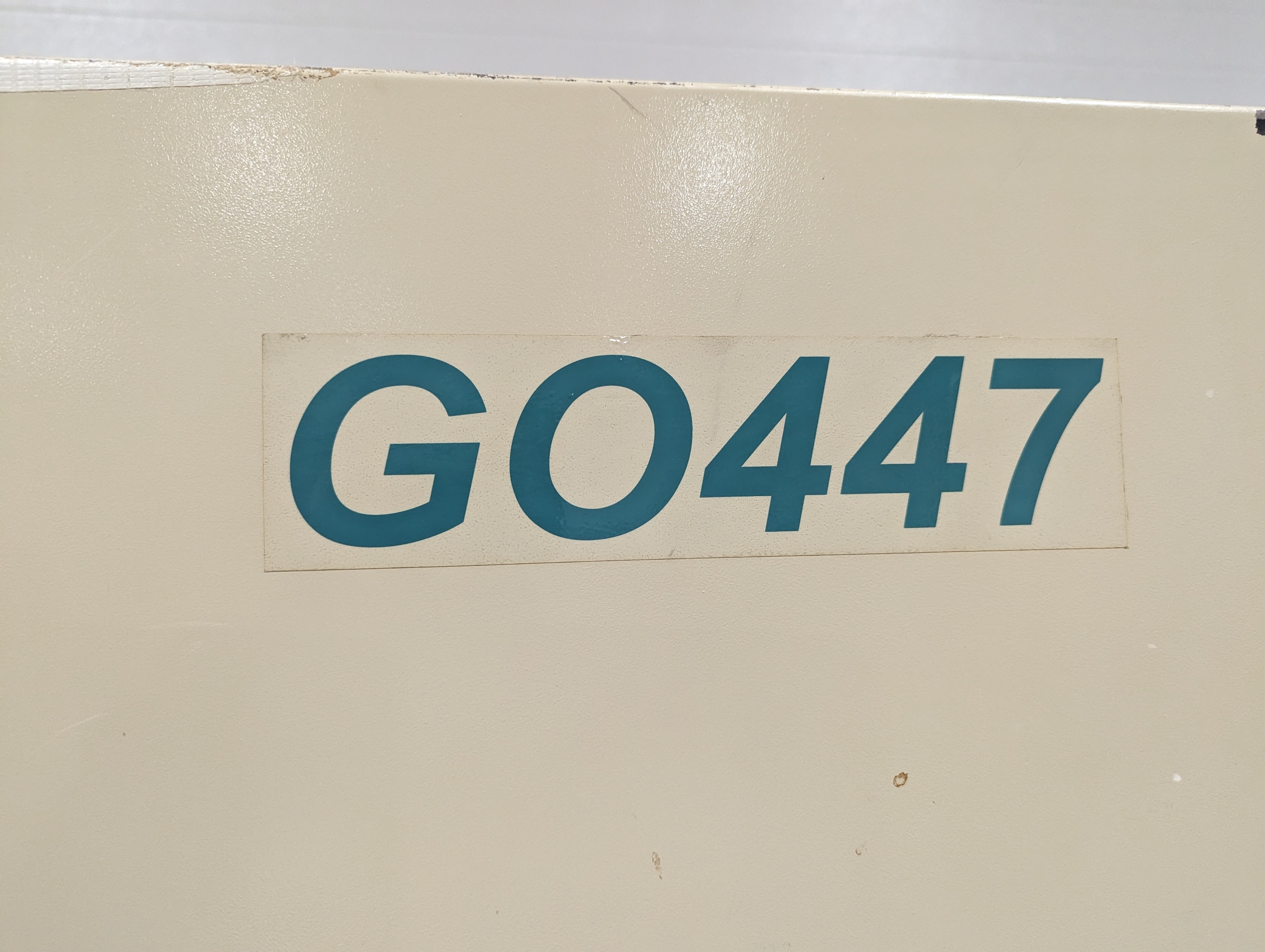

ModelG0447
ConditionUsed
Serial Number40479
Stock NumberU11253
