Ritter R46 46 Spindle Double Row System Drill

Ritter R46 46 Spindle Double Row System Drill

$6,500 (USD)

Available quantity: 1

Dundee, NY

orCall +1 (607) 243-7167

Description

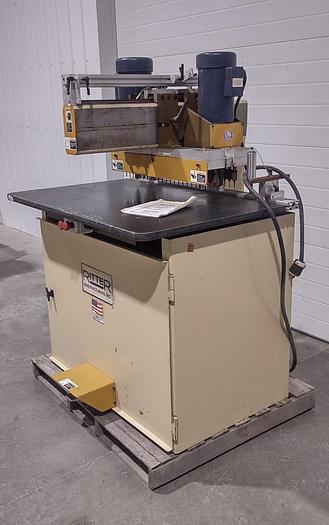

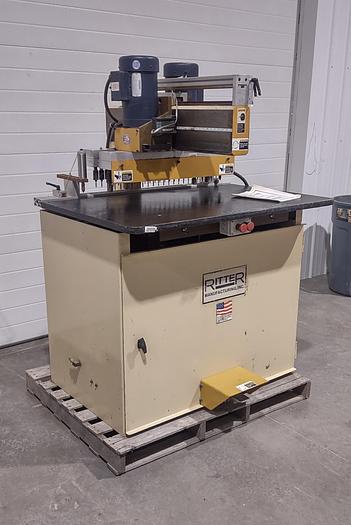

Used Ritter R-46 46 Spindle Double Row System Drill

This machine comes with a full set of tooling.


Standard Features:

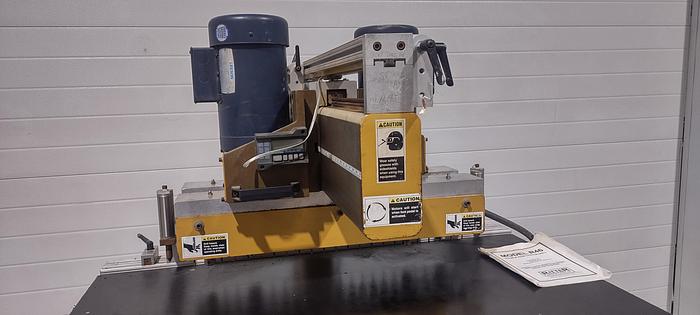

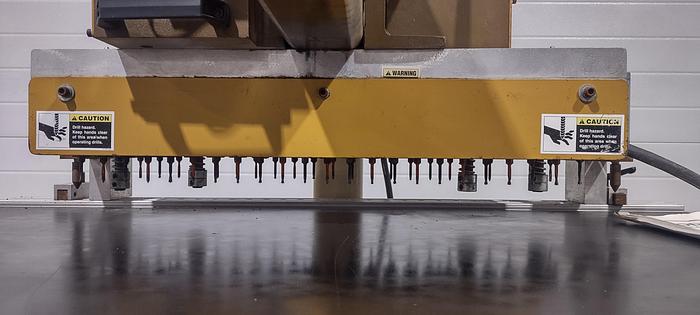

(2) 23-Spindle Gear Driven Drill Head on 32mm Centers

(24) Right Hand, (22) Left Hand

4"-24" Centers Between Rows

Digital Readout Front Head Position Display

Precision Linear Head Ways

(4) Quick Set Drill Head Position Stops

Rear Drill Row Nesting

48" Back Fence with (4) Adjustable Material Stops

Right and Left Hand Work Stations

(2) Air Index Pins

(2) Spring Operated Material Clamps

(2) Position Drill Depth Stop Turret

Pneumatic Foot Actuated Boring Cycle

Specifications

ManufacturerRitter
ModelR46
ConditionUsed
Drive Motor3 HP
Spindle Centers32mm
Collet Size10mm
Throat Capacity24"
Maximum Material Thickness1.25"
Electrical230V, 3Ø, 60Hz, 20A or 460V, 3Ø, 60Hz, 10A
CFM AIR SUPPLY REQUIREMENT2 CFM at 80 – 100 PSI
Work height39″
Footprint48″ x 43″
Table Area30″ x 48″
