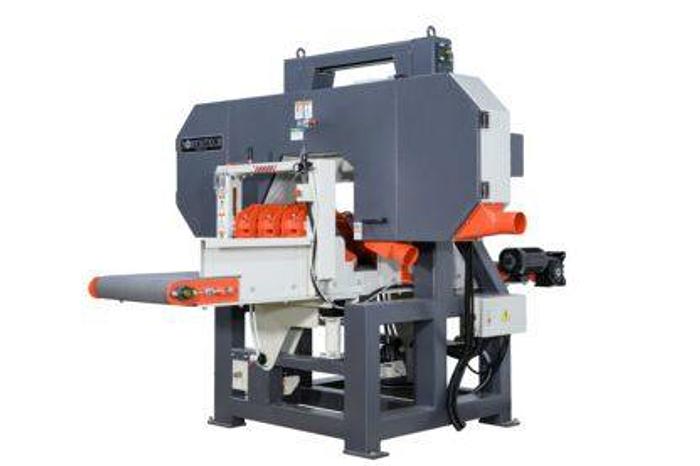

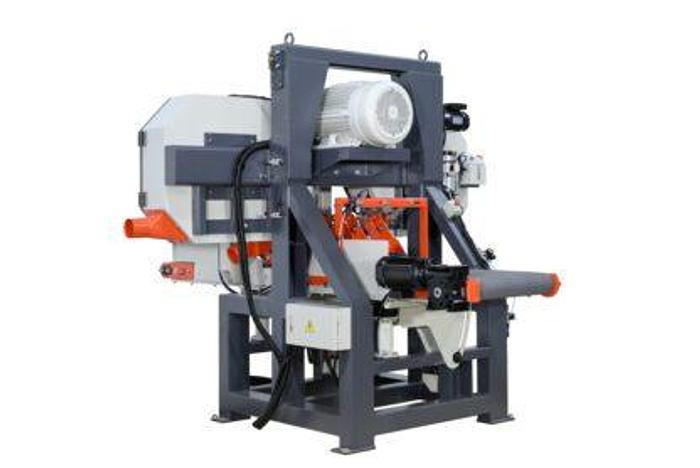

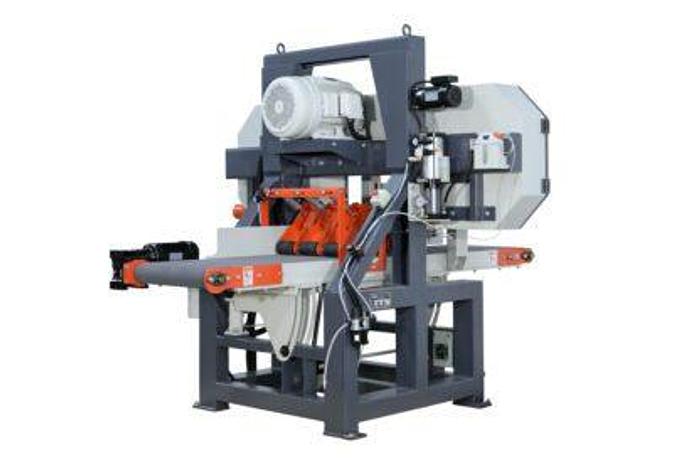

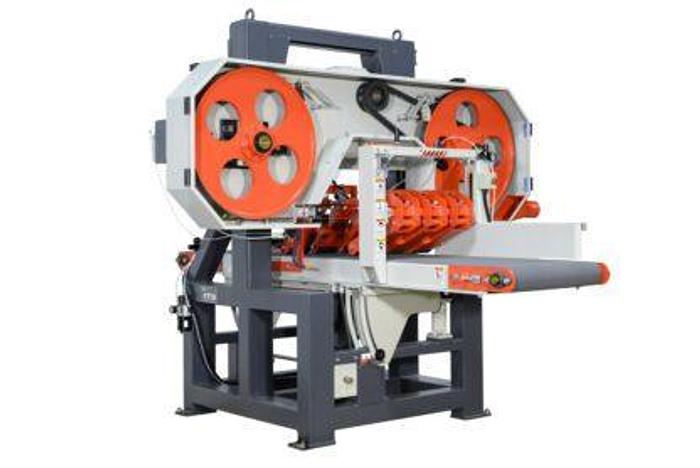

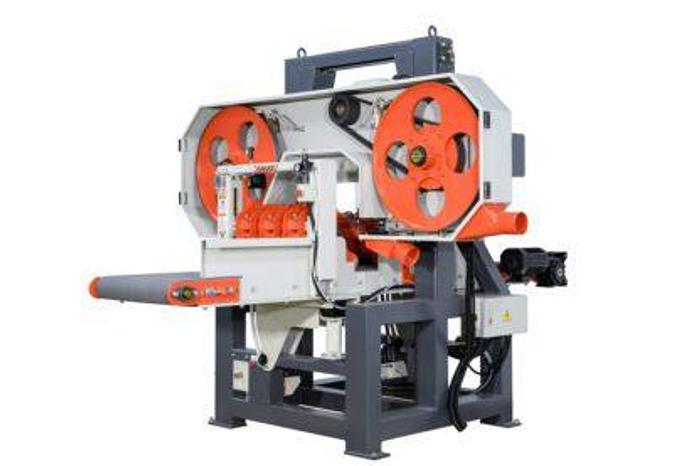

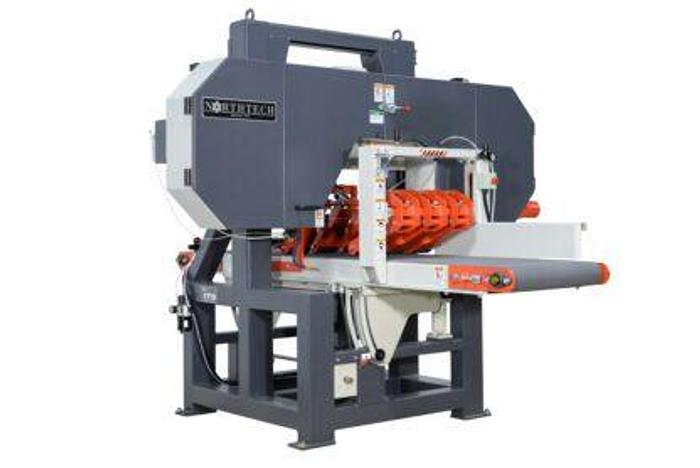

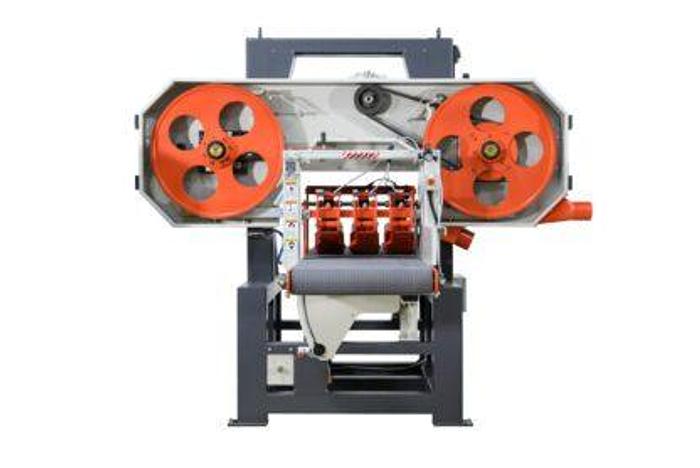

Northtech NT-HBR24PBXT HORIZONTAL BAND RESAW WITH POWERED RETURN WITH TILT
Northtech NT-HBR24PBXT HORIZONTAL BAND RESAW WITH POWERED RETURN WITH TILT
Contact us for price
Location:Dundee, NY
or
Call +1 (607) 678-4374
Description
The Northtech HBR24PBXT is our 24″ horizontal resaw. This machine has a 24″x8″ cut capacity, digital thickness control, 2×28″ band wheels, powered return conveyor, a heavy-duty steel frame and tilt for multiple shift operation for a functional simplicity that makes it easy to operate. The variable speed feed mat has pneumatic infeed and pneumatic outfeed hold downs to provide a wide variety of capability and reliability.
Specifications
| Manufacturer | Northtech |
| Model | NT-HBR24PBXT |
| Condition | New |
| Stock Number | NT-HBR24PBXT |
| MAIN MOTOR HP | 30 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60 Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 78 / 39 Amps |
| FEED HP | 2 HP |
| FEED SYSTEM | 23'' Feed Mat |
| DRIVE SYSTEM | 2 HP Motor Gearbox Feed Mat |
| FEED SPEED RANGE | 0-105 FPM |
| VARIABLE FEED SPEED | Inverter Controlled |
| ELEVATION HP | 1/4 HP |
| ELEVATION STYLE | CH525 Digital Controller |
| ELEVATION SYSTEM | 2 Post Jack Screw |
| TOTAL MACHINE HP | 32-1/4 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220 Volt |
| ASSISTED START | Wye Delta |
| PASS-LINE | 33-7/8'' |
| CUTTING ENVELOPE | 8'' x 23-3/4'' |
| MIN. WORKING LENGTH | 23'' |
| MIN. WORKING WIDTH | 1-3/4'' |
| MAX. WORKING WIDTH | 23-3/4'' |
| MIN. WORKING THICKNESS | 3/16'' |
| MAX. WORKING THICKNESS | 8'' |
| ABLE TO CUT ANGLE | Yes |
| BLADE SIZE | 2'' x 201'' |
| NO. OF TEETH ON BLADE | 268 Teeth |
| TOOTH SPACING | 3/4'' |
| BLADE KERF | 1.45 mm |
| BLADE SPEED | 6375 FPM |
| TENSION STYLE | Air Over Hydraulic Tensioning |
| VERTICAL TRAVEL | 9-3/4'' on Blade |
| DUST COLLECTION REQUIREMENT | 436 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (2) 4'' Ports |
| ARBOR DIAMETER | 2-9/16'' (65 mm) |
| DIGITAL DISPLAY | Elevation / Feed Speed |
| CONVEYOR | 23'' Feed Mat |
| HOLD DOWN STYLE | (6) Pneumatic Hold Downs |
| FLR INCLUDED | Filter, Lubricator, Regulator |
| CFM AIR SUPPLY REQUIREMENT | 1/4'' @ 90 PSI |
| SAFETY FEATURE | Door Switch |
| GUARDING | Full Enclosure |
| OPERATION STYLE | Manual |
| FENCE TYPE | Fixed |
| FENCE DIMENSIONS | 6-1/2'' x 79'' |
| TILT-ABLE | 0 - 30 Degrees |
| BLADE GUIDE | Steel |
| WHEEL DIMENSIONS | 1-3/4'' x 28'' |
| WHEEL CONSTRUCTION | Machined Cast |
| FRAME CONSTRUCTION | Fabricated steel |
| TABLE CONSTRUCTION MATERIAL | Fabricated Steel |
| MEASURING METHOD | End Coder |
| DECIBEL RATING | 73 dB |
| NET WEIGHT | 3602 Lbs. |
| GROSS WEIGHT | 3764 Lbs. |
| MACHINE DIMENSIONS | 104'' x 90'' x 93'' |
| PACKAGING DIMENSIONS | 118'' x 90'' x 85'' |
