Maksiwa Sliding Panel Saw Platinum - BMP.3200.IR - 10 foot - 7.5HP / 3 Phase
Maksiwa Sliding Panel Saw Platinum - BMP.3200.IR - 10 foot - 7.5HP / 3 Phase
Contact us for price
Location:Dundee, NY
Description

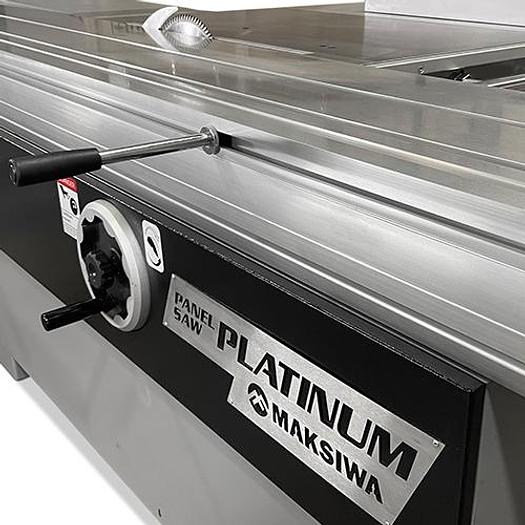

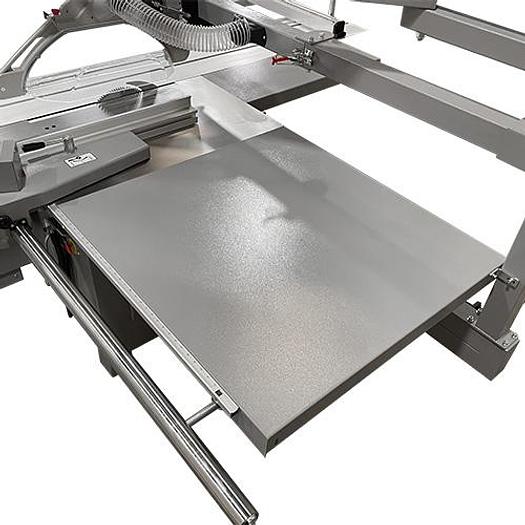

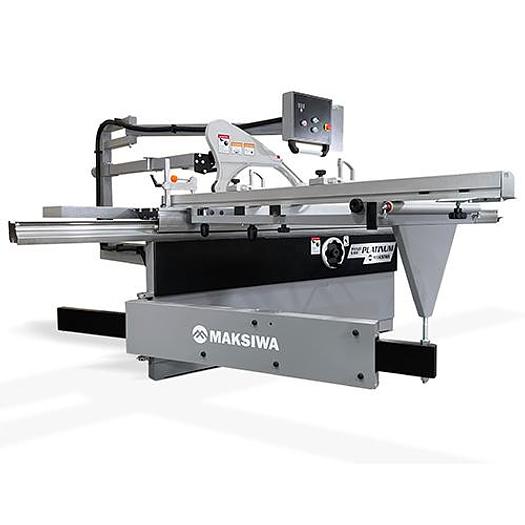

The BMP.3200.IR Platinum is the most powerful sliding panel saw from Maksiwa, equipped with a 7.5HP main motor and ¾ HP Scoring motor (3 phase). The 126” sliding table is constructed of anodized aluminum and runs on precision linear guide rails that gives you an ultra-smooth movement allowing you to move the table effortlessly. Designed with a European style 51″ rip fence, it has a digital readout with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar.

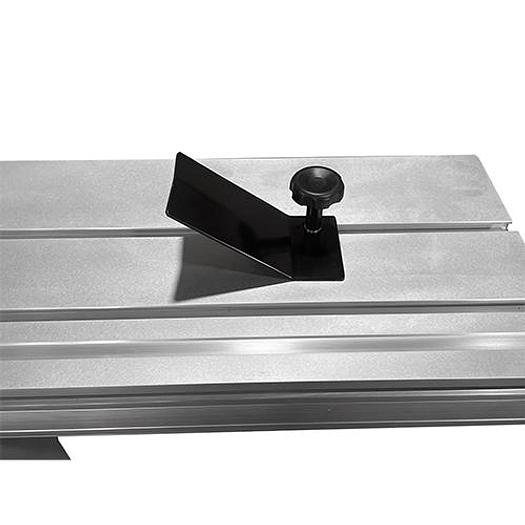

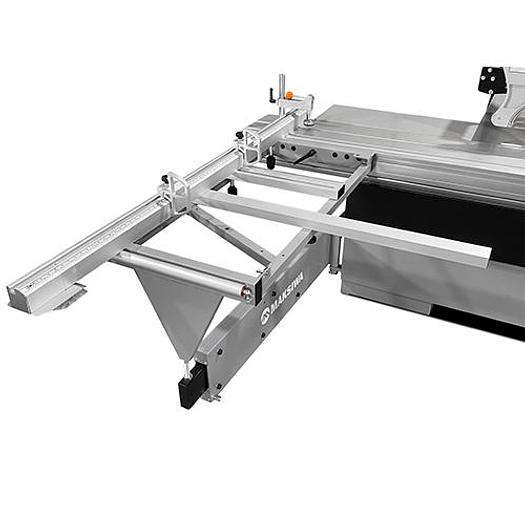

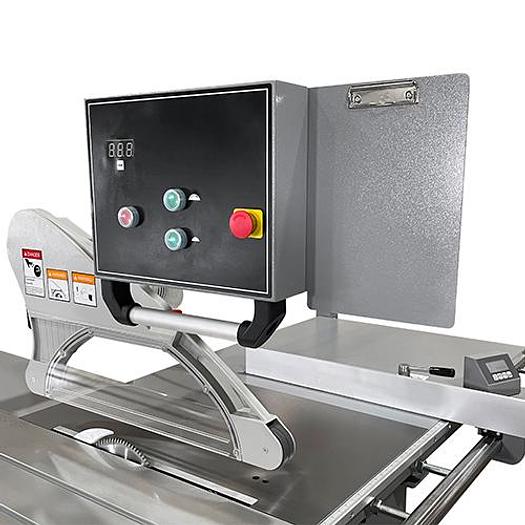

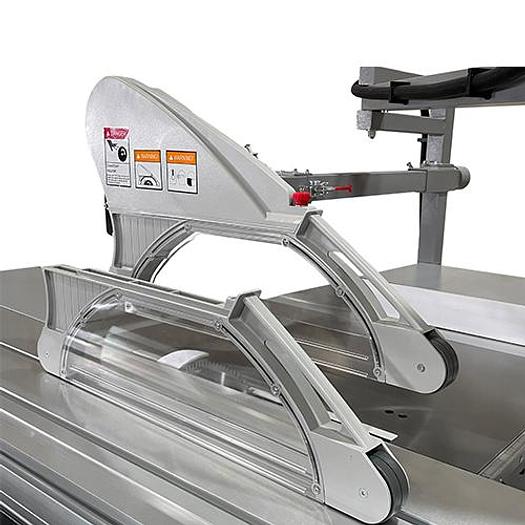

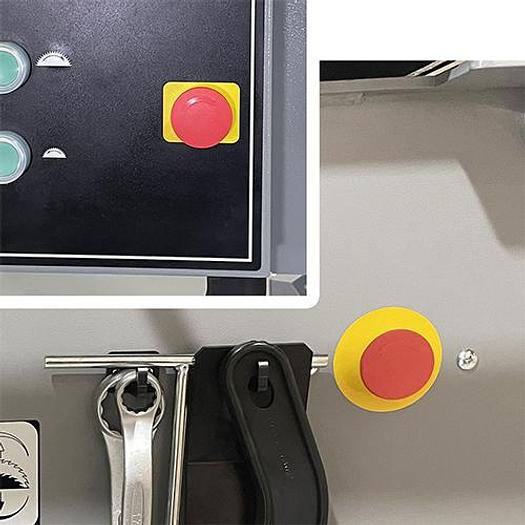

Our heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 120″), 45° miter and is ergonomically designed to make it easier to read the tape. The control panel is conveniently located on an eye-level position with easy access to the main operation buttons. It comes standard with two overhead guards 90° and 45° featuring a quick-change and swing-away function, easily switch from one to the other in a matter of seconds and move the guard out of the way easily if necessary. It also includes a push handle, hold-down clamp and wedge clamp.
Specifications
Manufacturer | Maksiwa |
Condition | New |
Stock Number | BMP.3200.IR |
Main Motor | 7.5 HP/ 4000 RPM 5.5 Kw |
Main Blade Max cutting Height at 90° | 3 1/2" | 90 mm |
Main Blade Cutting Height at 45° | 2 7/16" | 63mm |
Scoring Motor | 3/4 HP / 8000 RPM .74Kw |
Crosscut Fence Capacity Closed/Open | 78" / 120" | 1981mm / 3048 mm |

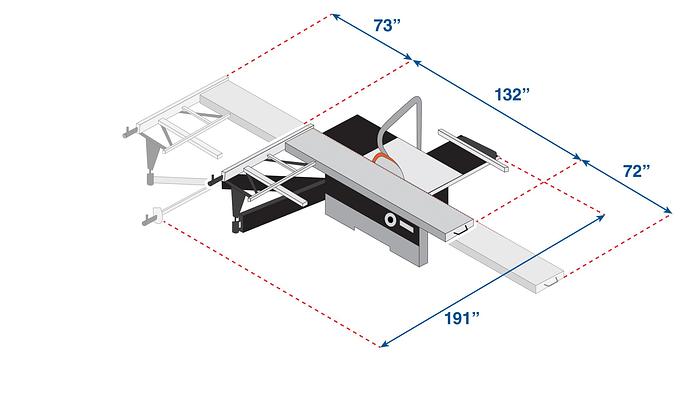

Machine Working Dimensions (LxWxH) | 132" x 137" x 75" | 3352 x 3479 x 1905 mm |
Cast Iron Table Dimension (LxWxH) | 35" x 21" x 34" | 896 X 548 X 864 mm |
Sliding Table Dimension (LxW) | 126" x 14 " | 3200 x 358 mm |
Dust Collection Port (2) | 4" | 100mm |
Minimum Dust Collection Requirements | 1000 CFM | 28m/min |
Electrical Specs | 3 Phase 220V 30 Amps 60 Hz |
Main Body Crate Dimensions (LxWxH) | 83" x 45" x 45" | 2108x 1143 x 1143 mm |
Main Body Crate Weight Net/Gross | 1470 LBS | 667 KGS |
Sliding Table Crate Dimensions (LxWxH) | 133" x 18" x 15" | 3378 x 457 x 381 mm |
Sliding Table Crate Weight Net/Gross | 274 LBS | 124 KGS |
Scoring Motor Blade | 4 3/4" | 12mm |
Scoring Blade Arbor | 3/4" | 20mm |
Scoring Blade Type | Conical |
Max Ripping Capacity | 51" | 1295mm |
Crosscut Capacity | 126" | 3200 mm |
Max Blade Diameter | 14" | 355mm |
Main Blade Arbor | 1 3/16" | 30mm |
