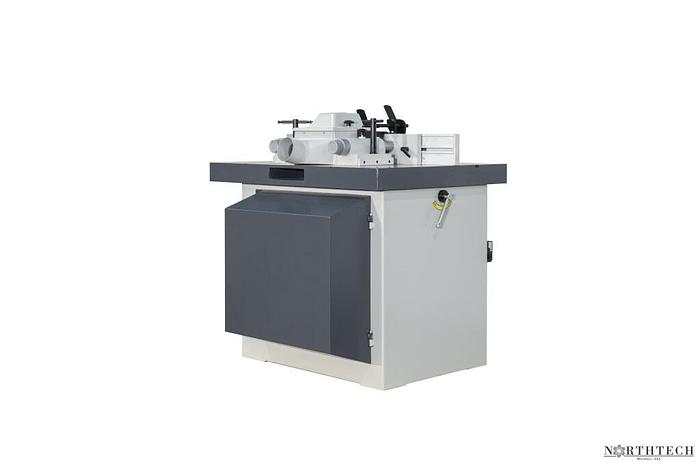

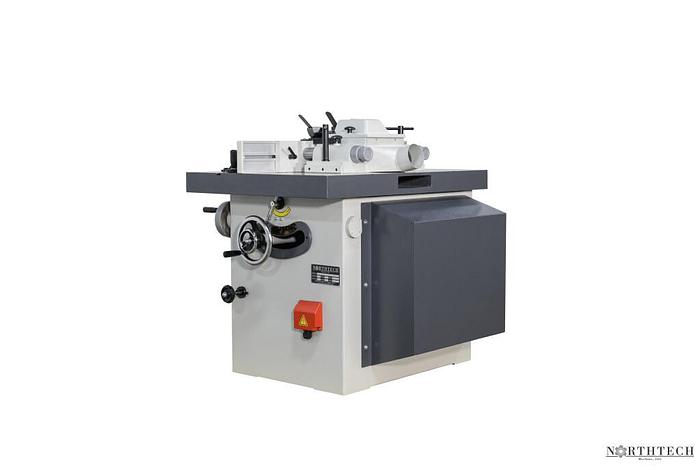

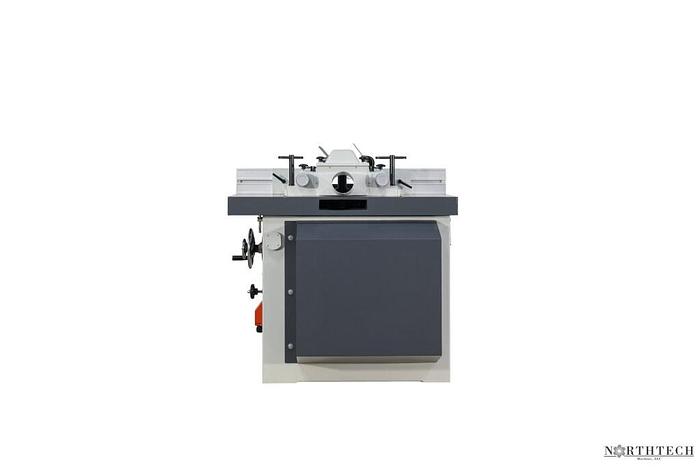

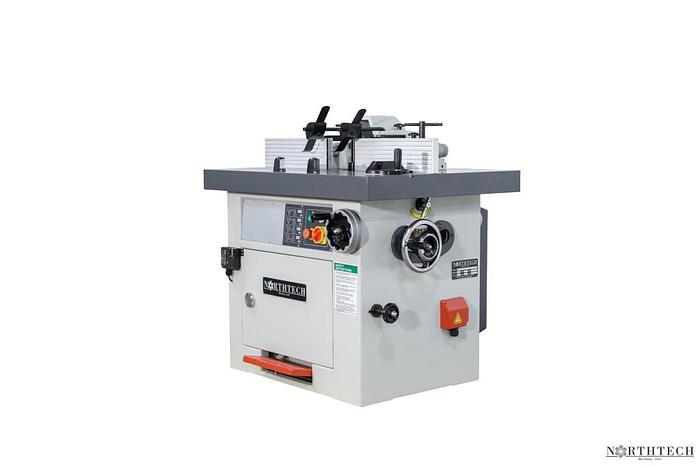

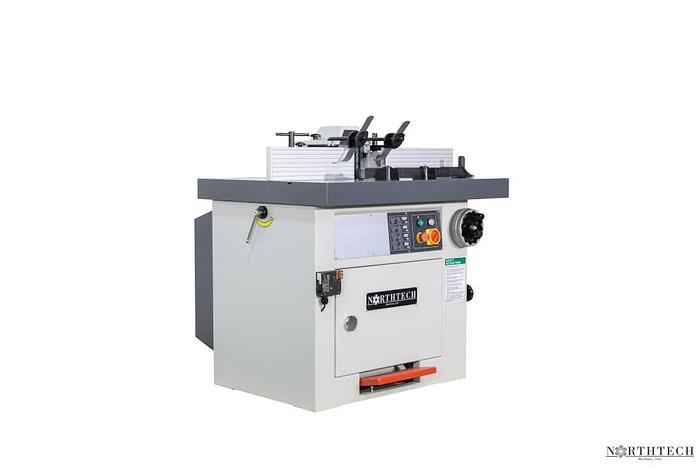

Northtech NT-625T 7.5HP SHAPER WITH TILTING SPINDLE

Northtech NT-625T 7.5HP SHAPER WITH TILTING SPINDLE

Contact us for price

Get Financing

Location:Dundee, NY

or
Call +1 (607) 678-4374

Description

The NT 625T is the 625 shaper equipped with a tilting spindle. The 625 series features a large stable base and foot-operated brake for quick spindle stop. The oversized precision ground table on a solid steel cabinet provides stable vibration-free milling. The 7.5HP 4-speed interchangeable spindle provides flexibility for customer-specific applications



Show All

Specifications

ManufacturerNorthtech
ModelNT-625T
ConditionNew
Stock NumberNT-625T
MACHINE HP7.5 HP
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE3 Phase
AMP REQUIREMENT22 / 11 Amps
SPINDLE LENGTH6''
SPINDLE DIAMETER1-1/4''

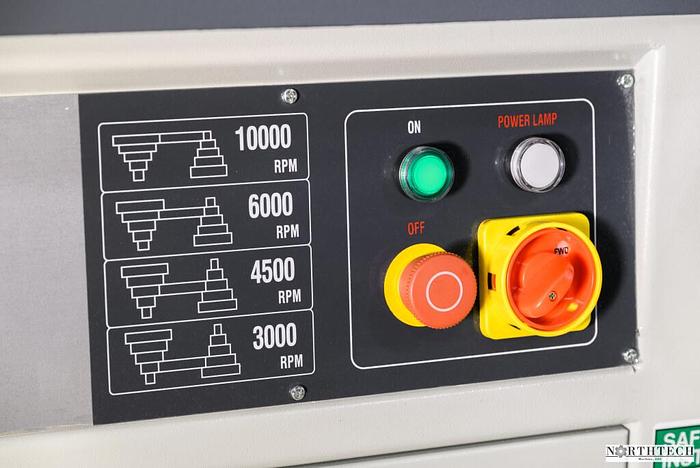

SPINDLE RPM3000, 4500, 6000, 10000 RPM
ELEVATION STYLEManual Wheel Adjustment
ELEVATION SYSTEMQuill Housing / Jack Screw
APPROVED ELECTRICAL PARTSCE Approved Parts
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
PASS-LINE33-1/2''
HORIZONTAL TRAVEL3-3/4'' Fence Travel
VERTICAL TRAVEL5-1/4'' Spindle Travel
DUST COLLECTION REQUIREMENT436 CFM @ Extraction Points
DUST PORT SIZE OUTLET(1) 4''

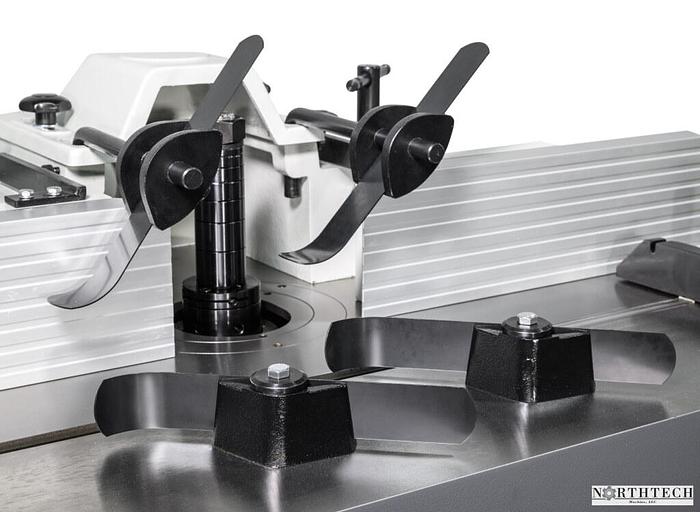

FENCE TYPEAdjustable
FENCE DIMENSIONS(2) 5'' x 17''
MICRO FENCEKnob Adjustment

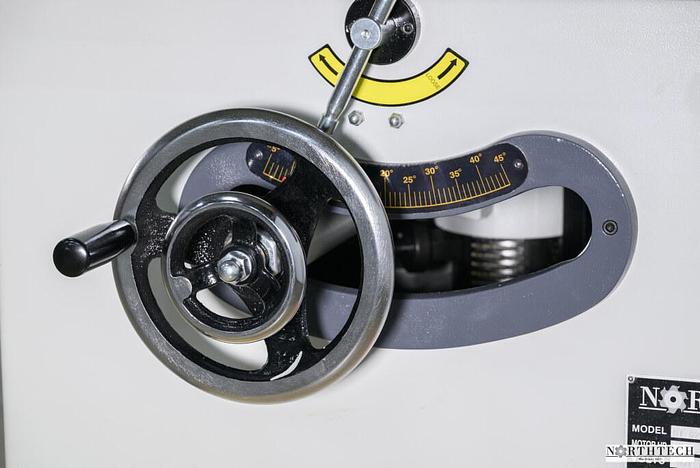

TILT-ABLE-5 / 45 Degrees
BRAKE SYSTEMFoot Pedal
FRAME CONSTRUCTIONFabricated Steel
WORKTABLE DIMENSIONS41'' x 31-1/4''
TABLE CONSTRUCTION MATERIALMachined Cast
DECIBEL RATING68 dB
NET WEIGHT965 Lbs.
GROSS WEIGHT1088 Lbs.
MACHINE DIMENSIONS43'' x 41'' x 43''
PACKAGING DIMENSIONS46' x 44'' x 48
