Northtech NT-625M 7.5HP Shaper
or
Call +1 (607) 678-4374
Description

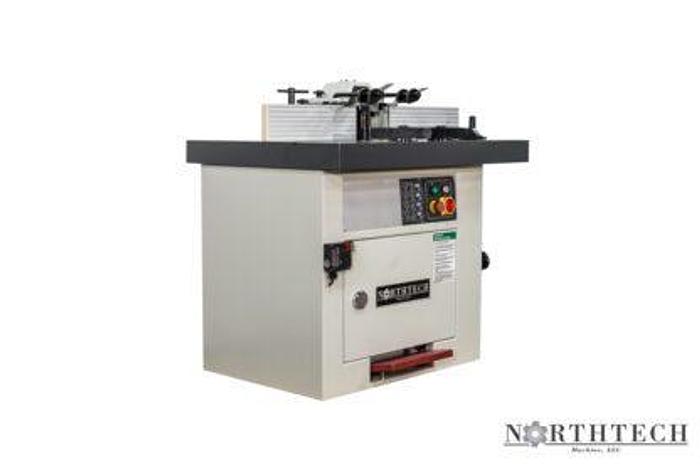

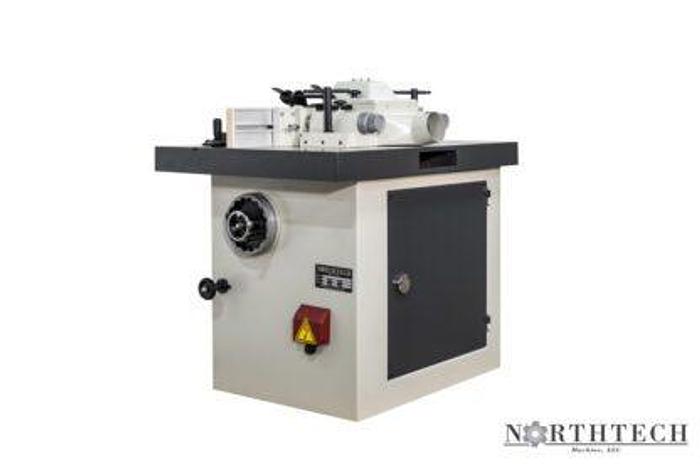

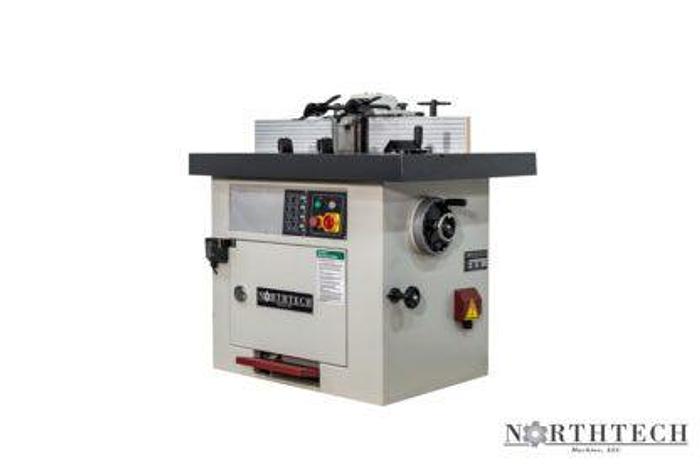

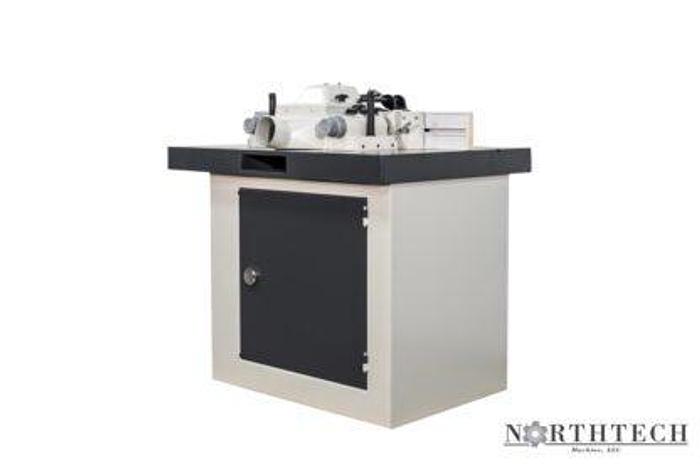

The 625M shaper is a powerful strong, heavy duty built shaper. The 625 series features a large stable base and foot operated brake for quick spindle stop. The oversized precision ground table on solid steel cabinet provides stable vibration free milling. The 7.5HP 4 speed interchangeable spindle provides flexibility for customer specific applications.
Specifications
| Manufacturer | Northtech |
| Model | NT-625M |
| Condition | New |
| MACHINE HP | 7.5 HP |
| REVERSIBLE MOTOR | Spindle Motor |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 18 / 9 Amps |
| 1ST SPINDLE | 1-1/4'' Spindle |
| SPINDLE LENGTH | 6'' |
| SPINDLE DIAMETER | 1-1/4'' |
| SPINDLE RPM | 3000, 4500, 6000, 9000 RPM |
| UNDER THE NUT CAPACITY | 5'' |
| TOTAL MACHINE HP | 7.5 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 110 Volt |
| PASS-LINE | 33-1/2'' |
| VERTICAL TRAVEL | 6'' on Spindle |

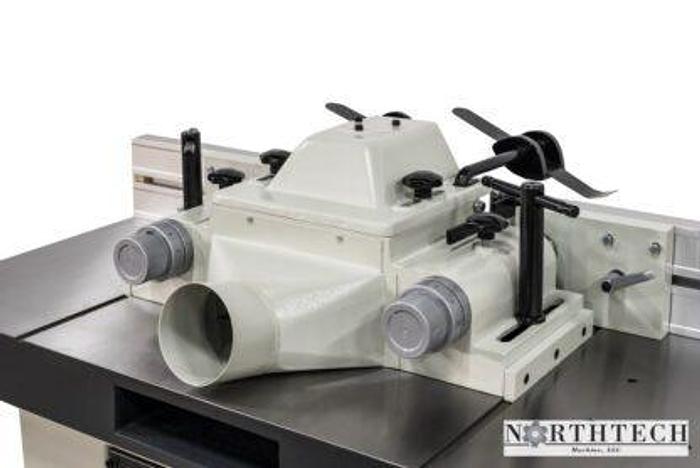

| DUST COLLECTION REQUIREMENT | 436 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (1) 4'' Port |

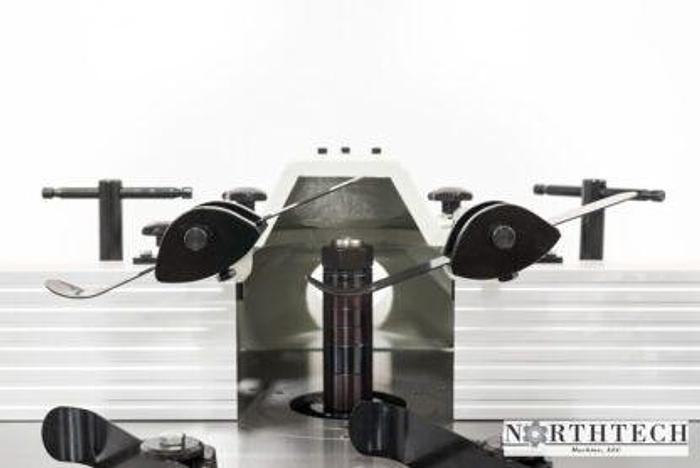

| HOLD DOWN STYLE | Spring Tensioners |
| EMERGENCY STOP | (1) Front |
| FENCE DIMENSIONS | (2) 5'' x 17'' |
| MICRO FENCE | Micro Adjustable |

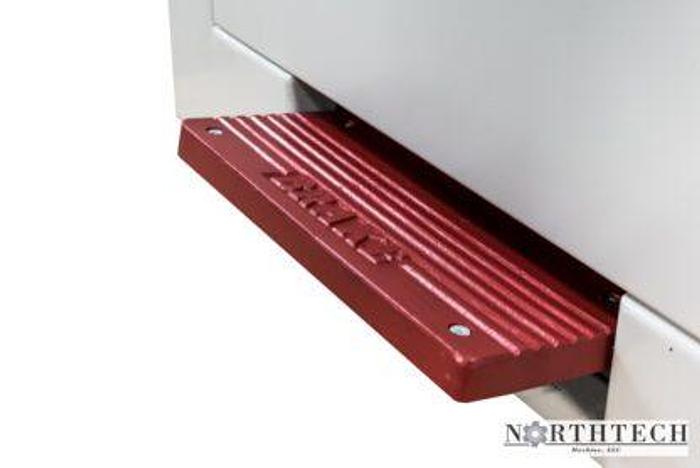

| BRAKE SYSTEM | Foot Pedal |
| FRAME CONSTRUCTION | Fabricated Steel |
| WORKTABLE DIMENSIONS | 31-1/2'' x 41'' |
| TABLE CONSTRUCTION MATERIAL | Machined Cast Iron |
| DECIBEL RATING | 70 dB |
| NET WEIGHT | 786 Lbs. |
| GROSS WEIGHT | 904 Lbs. |
| MACHINE DIMENSIONS | 42'' x 32'' x 42'' |
| PACKAGING DIMENSIONS | 46'' x 36'' x 48'' |
