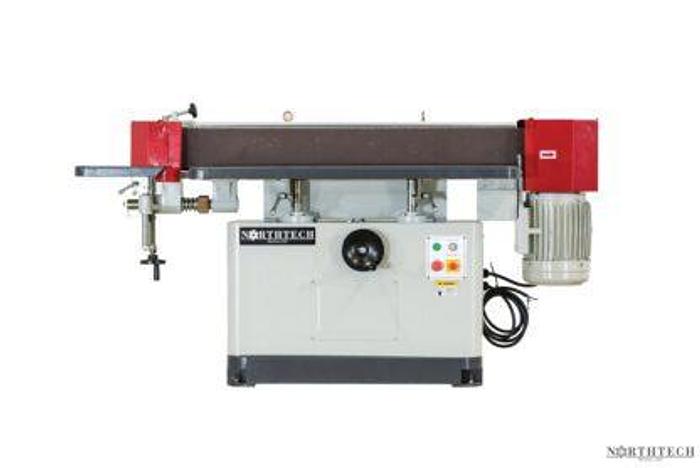

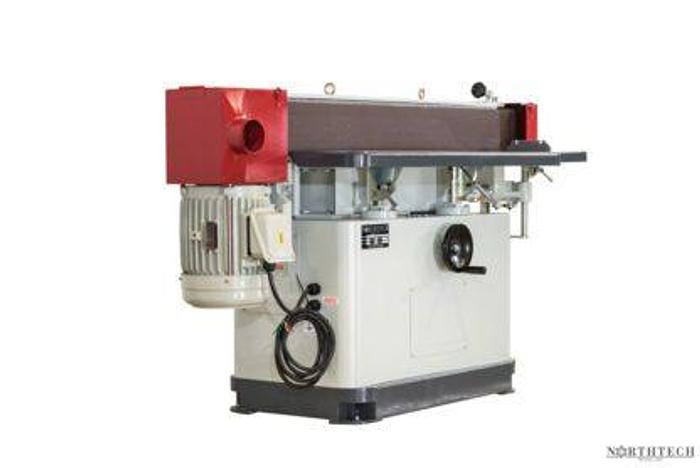

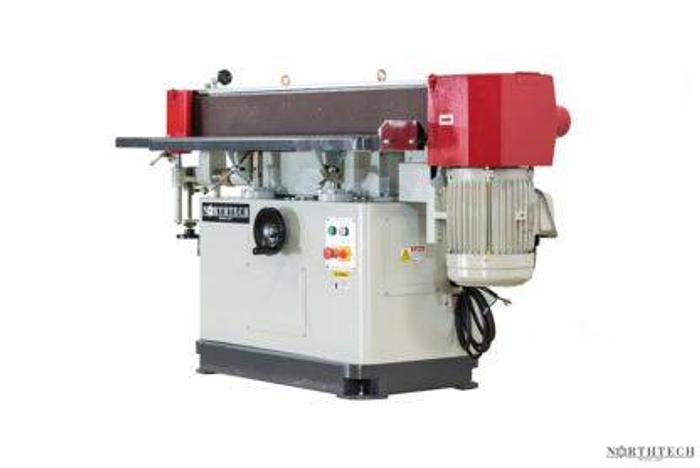

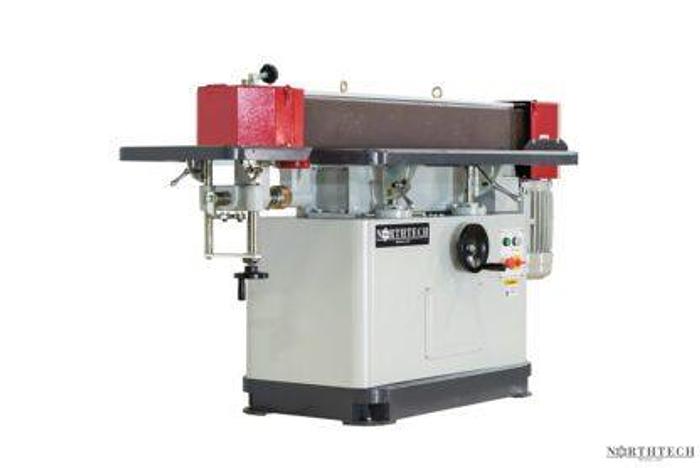

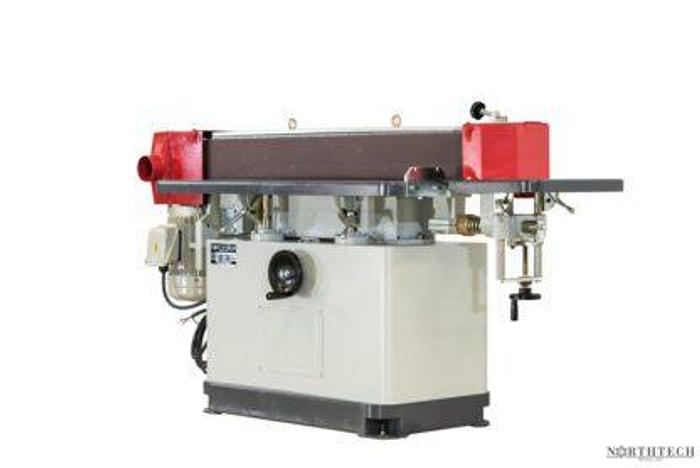

Northtech NT-ES648DE 7.5HP 6'' X 48'' Double Sided Edge Sander

Northtech NT-ES648DE 7.5HP 6'' X 48'' Double Sided Edge Sander
Contact us for price
Location:Dundee, NY
or
Call +1 (607) 678-4374
Description
The NT-ES648DE is a compact edge sander that has a 6″x48″ sanding area on both sides of the machine along with an end table for smaller and contoured sanding work. Edge Sanders with double side tables can have a centrally located control station that allows for machine start/stop from both sides. Chrome side tables are tiltable to 45 degrees and are on a gear-driven elevation system making it easy to take advantage of full use of the sanding belts on smaller parts. The electronic oscillation and heavy-duty cast iron frame provides a vibration-free base and heavy stock removal capability.
Specifications
| Manufacturer | Northtech |
| Model | NT-ES648DE |
| Condition | New |
| Stock Number | NT-ES648DE |
| MACHINE HP | 7.5 HP |
| DIRECT DRIVE (MOTOR) | Yes |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 20 / 10 Amps |
| ELEVATION STYLE | Manual Wheel Adjustment |
| ELEVATION SYSTEM | (2) Post Jack Screw |
| TOTAL MACHINE HP | 10 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 24 Volt |
| PASS-LINE | 31-1/2'' Down 35-3/4'' Up |
| MAX. WORKING LENGTH | 48'' |
| MAX. WORKING THICKNESS | 6'' |
| SANDPAPER SIZE | 6'' x 141'' |
| PLATEN SPECIFICATIONS | 6-1/2'' x 48'' |
| DRUM SPECIFICATIONS | Drive 6.5'' x 7'' Idle 6.5'' x 7'' |
| ROLLER TYPE | Drive Aluminum Idle Rubber |
| 1st BELT SPEED | 3300 FPM |
| OSCILLATION RATE | 30 Cycles/Minute |
| OSCILLATION TRAVEL | 1/2'' |
| TRACKING STYLE | Manual Knob Adjustment |
| TENSION STYLE | Manual Knob Adjustment |
| VERTICAL TRAVEL | Table Adjust 4-1/2'' |
| DUST COLLECTION REQUIREMENT | 436 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (2) 4'' Ports |
| TILT-ABLE | 45 Degree |
| FRAME CONSTRUCTION | Fabricated Steel |
| END TABLE DIMENSIONS | 13-3/4'' x 17-3/4'' |
| WORKTABLE DIMENSIONS | 47-3/4'' x 10-1/2'' |
| TABLE CONSTRUCTION MATERIAL | Chromed Steel |
| DECIBEL RATING | 62 dB |
| NET WEIGHT | 858 Lbs. |
| GROSS WEIGHT | 1054 Lbs. |
| MACHINE DIMENSIONS | 79'' x 29'' x 42'' |
| PACKAGING DIMENSIONS | 83'' x 34'' x 48'' |
