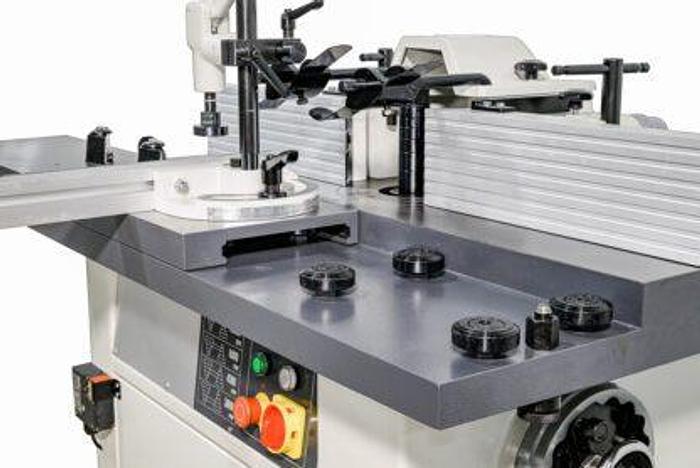

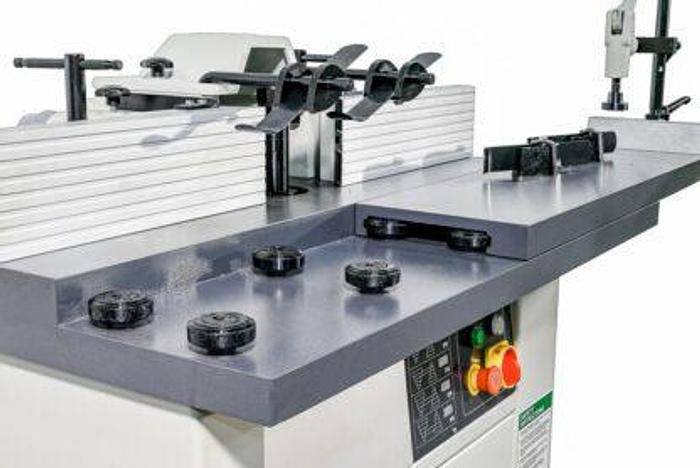

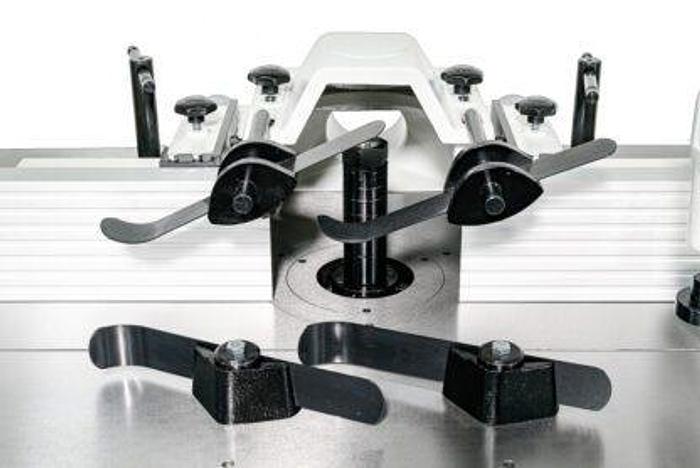

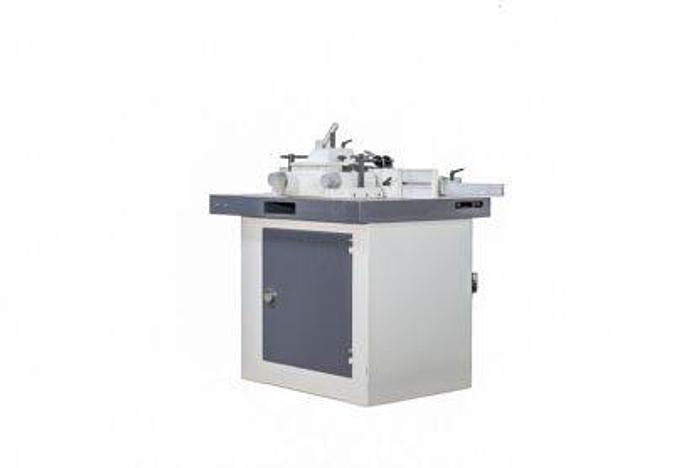

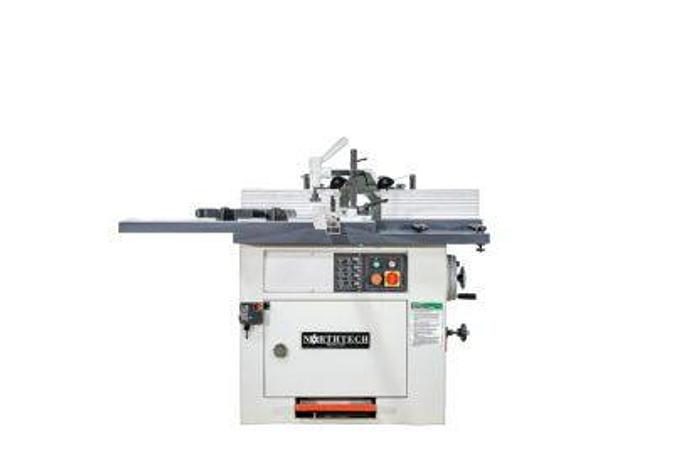

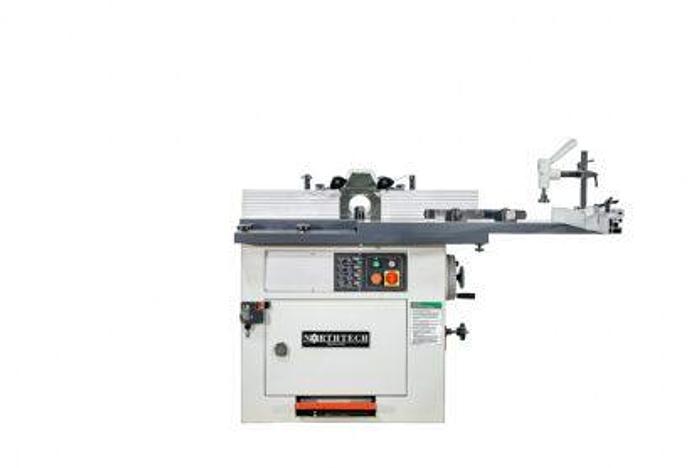

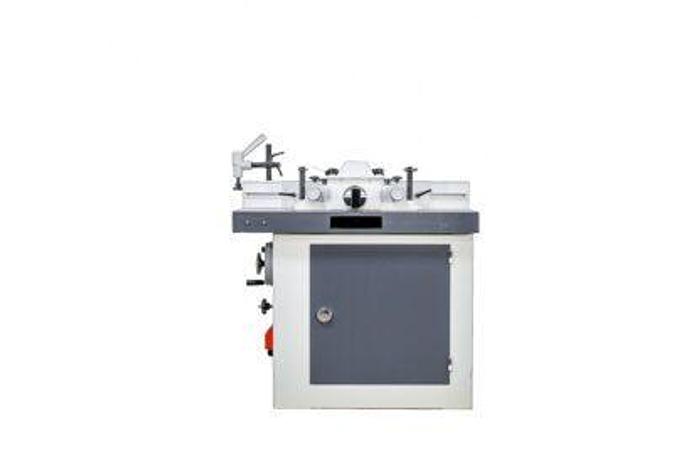

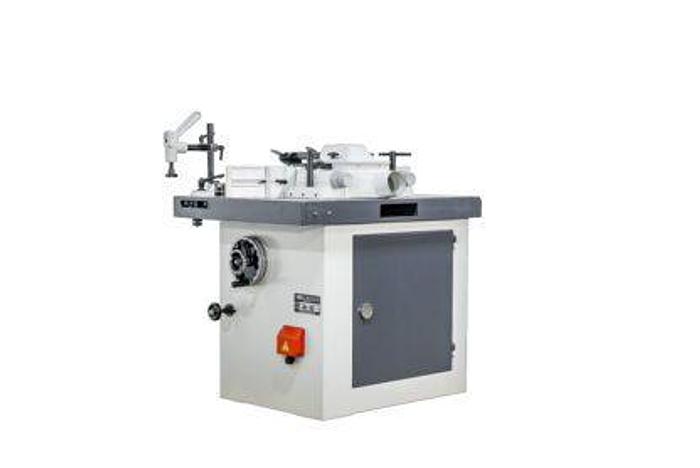

Northtech NT-625S 7.5HP Shaper with Sliding Table

Northtech NT-625S 7.5HP Shaper with Sliding Table

Contact us for price

Get Financing

Location:Dundee, NY

or
Call +1 (607) 678-4374

Description

The NT 625MS is the 625 shaper equipped with a sliding table. The 625 series features a large stable base and foot operated brake for quick spindle stop. The oversized precision ground table on solid steel cabinet provides stable vibration free milling. The 7.5HP 4 speed interchangeable spindle provides flexibility for customer specific applications.

Show All

Specifications

ManufacturerNorthtech
ModelNT-625S
ConditionNew
Stock NumberNT-625S
MACHINE HP7.5 HP
REVERSIBLE MOTORSpindle Motor
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE3 Phase
AMP REQUIREMENT18 / 9 Amps
CONFIGURATIONSingle Spindle
1ST SPINDLE1-1/4'' Spindle
SPINDLE LENGTH6''
SPINDLE DIAMETER1-1/4''
SPINDLE RPM3000, 4500, 6000, 9000 RPM
UNDER THE NUT CAPACITY5''
ELEVATION STYLEManual Wheel Adjustment
ELEVATION SYSTEMQuill Housing Jack Screw
TOTAL MACHINE HP7.5 HP
APPROVED ELECTRICAL PARTSCE Approved Parts
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
PASS-LINE33-1/2''
HORIZONTAL TRAVEL19-7/8'' Left 19-7/8'' Right
VERTICAL TRAVEL6'' on Spindle
DUST COLLECTION REQUIREMENT436 CFM @ Extraction Points
DUST PORT SIZE OUTLET(1) 4'' Port
HOLD DOWN STYLESpring Tensioners
TOTAL CLAMPS(1) Clamp
EMERGENCY STOP(1) Front
FENCE TYPEAdjustable
FENCE DIMENSIONS(2) 5'' x 17''
MICRO FENCEMicro Adjustable
SLIDING TABLE TRAVEL19-7/8'' Left and Right
BRAKE SYSTEMFoot Pedal
FRAME CONSTRUCTIONFabricated Steel
WORKTABLE DIMENSIONS41-3/16" x 31-3/8''
TABLE CONSTRUCTION MATERIALMachined Cast Iron
DECIBEL RATING70 dB
NET WEIGHT806 Lbs.
GROSS WEIGHT963 Lbs.
MACHINE DIMENSIONS42'' x 32'' x 42''
PACKAGING DIMENSIONS46'' x 37'' x 48''
