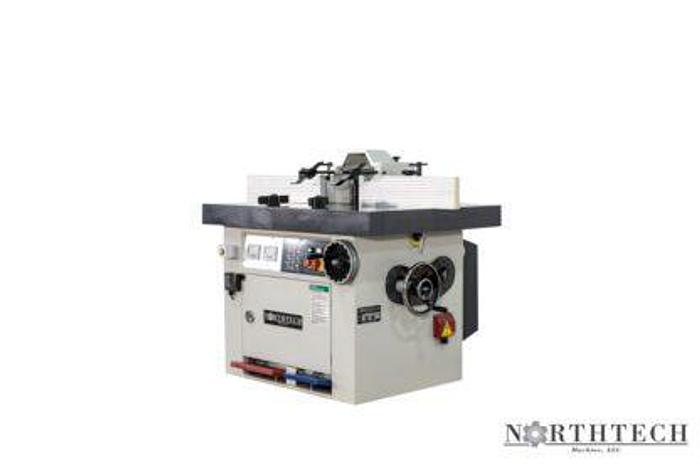

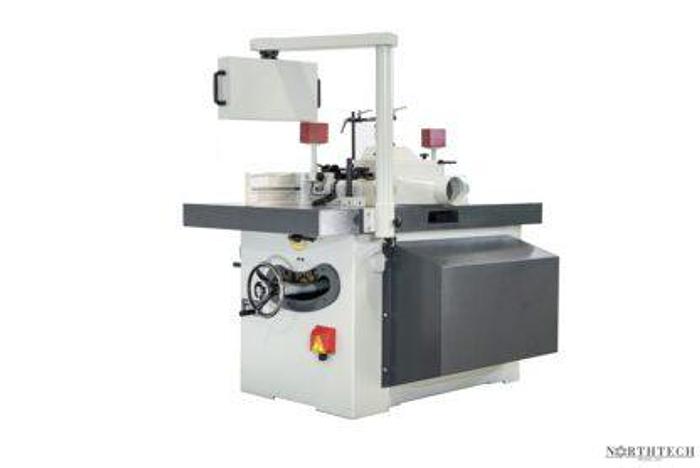

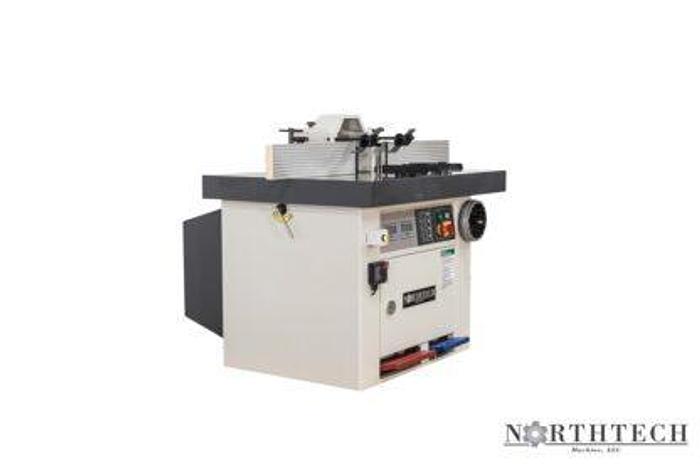

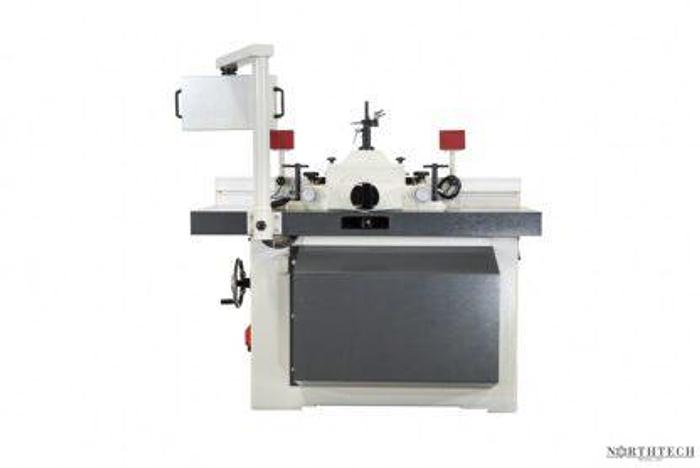

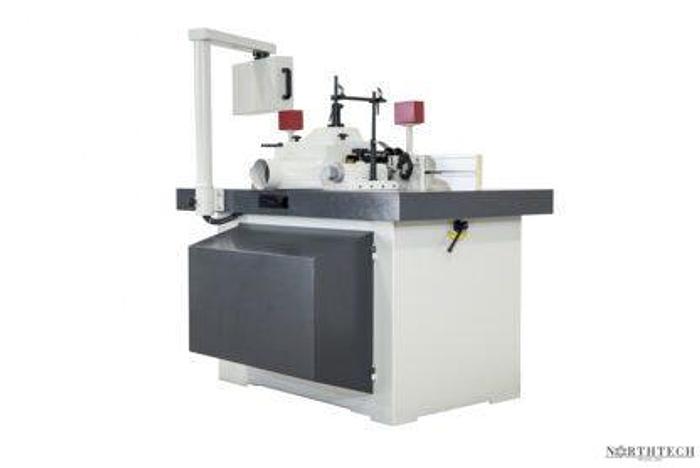

Northtech NT-735T 10HP SHAPER WITH TILTING SPINDLE

Northtech NT-735T 10HP SHAPER WITH TILTING SPINDLE

Contact us for price

Get Financing

Location:Dundee, NY

or
Call +1 (607) 678-4374

Description

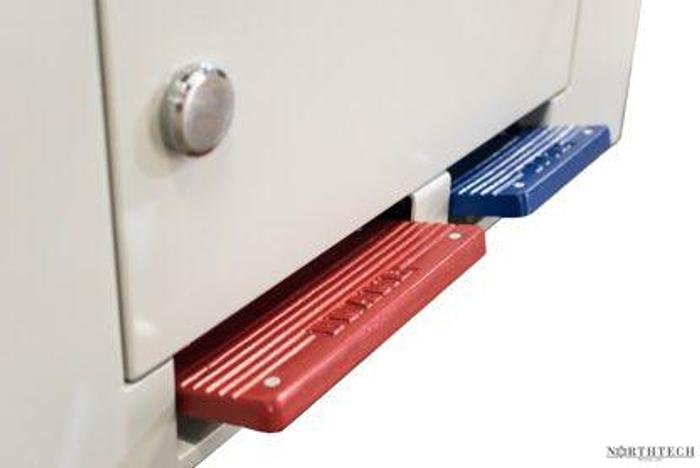

The NT 735T is the 735 shaper equipped with a tilting spindle. The 735 series features a large stable base, foot operated brake for quick spindle stop and a foot operated lock for easy tool changes. The oversized precision ground table on solid steel cabinet provides stable vibration free milling. The 10HP 4 speed interchangeable spindle provides flexibility for customer specific applications.

Show All

Specifications

ManufacturerNorthtech
ModelNT-735T
ConditionNew
Stock NumberNT-735T
MACHINE HP10 HP
REVERSIBLE MOTORForward Reverse Switch
PHASE3 Phase
AMP REQUIREMENT26 / 13 Amps
SPINDLE LENGTH6''
Spindle RPM3000, 4500, 6000, 9800 RPM
UNDER THE NUT CAPACITY5''
FEED SYSTEMManual
APPROVED ELECTRICAL PARTSCE Approved Parts
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
DUST COLLECTION REQUIREMENT681 CFM @ Extraction Point
DUST PORT SIZE OUTLET5''
HOLD DOWN STYLESpring Board Clamp
EMERGENCY STOP(1)
FENCE TYPEAdjustable
FENCE DIMENSIONS(2) 5-3/4'' x 23-3/4''
MICRO FENCEMicro Adjustable
TILT-ABLE-5 - 45 Degrees
BRAKE SYSTEMFoot Pedal / Brake Shoe
FRAME CONSTRUCTIONFabricated Steel
WORKTABLE DIMENSIONS36'' x 47-3/4''
TABLE CONSTRUCTION MATERIALMachined Cast
DECIBEL RATING71dB
NET WEIGHT1437 Lbs.
GROSS WEIGHT1586 Lbs.
MACHINE DIMENSIONS48'' x 48'' x 46''
PACKAGING DIMENSIONS54'' x 53'' x 53''
