Maksiwa CBC.PCR Edgebander Platinum Corner Rounding - Delivery and onsite installation included

Maksiwa CBC.PCR Edgebander Platinum Corner Rounding - Delivery and onsite installation included
Contact us for price
Location:Dundee, NY
Available quantity:1
or
Call +1 (607) 678-4374
Description

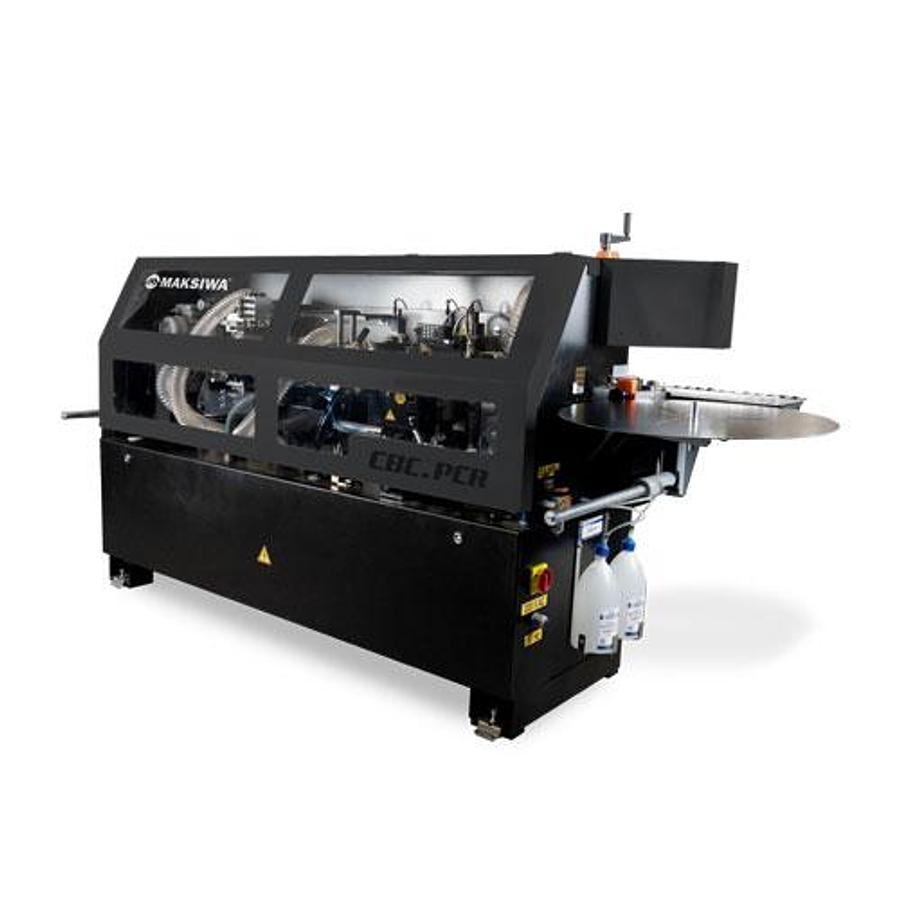

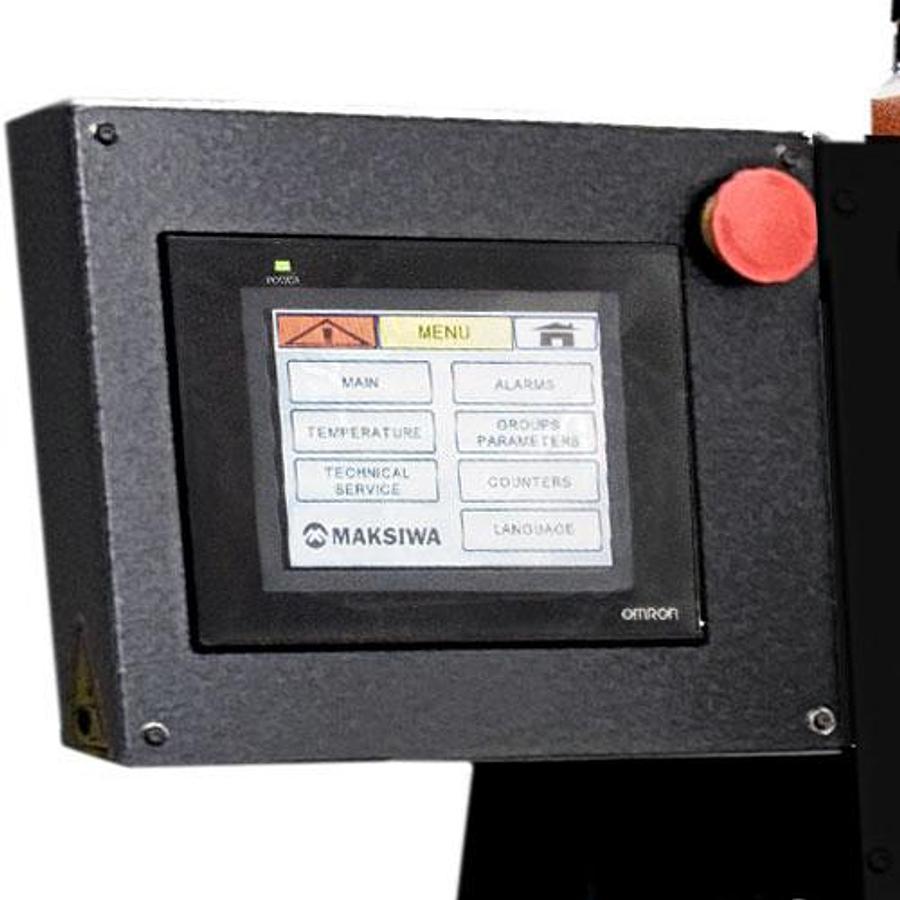

The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade performance with the highly requested corner rounding feature. It also includes pre-milling, trimming, glue scraping, and buffing for a premium finish. The XMELT glue pot system supports EVA and PUR adhesives. With a 8HP motor and user-friendly PCL touchscreen, it handles edge tapes of 0.4-3mm and panel thicknesses from 10-50mm.
Pre-milling & Corner Rounding in a small footprint
- Edge Tape: 0.4-3 mm
- Panel Thickness: 8-50mm
- 1 Phase 220V 60Hz

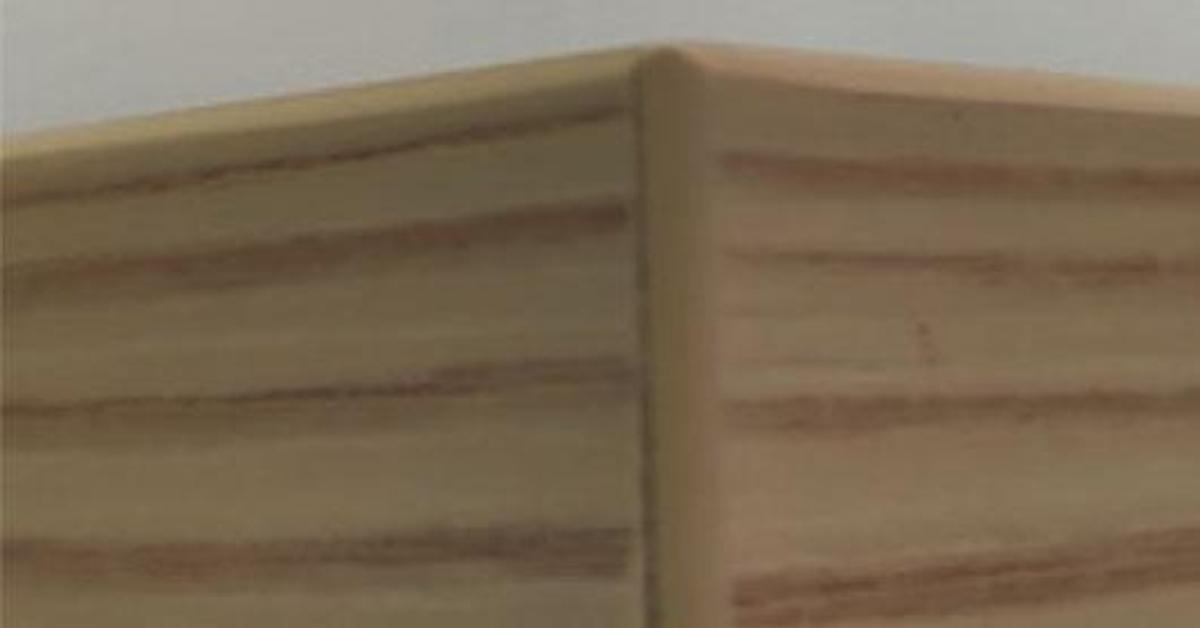

- Corner Rounding Unit
- Glue Scraper Unit
- Buffing Unit
- End Trimming HF Motor

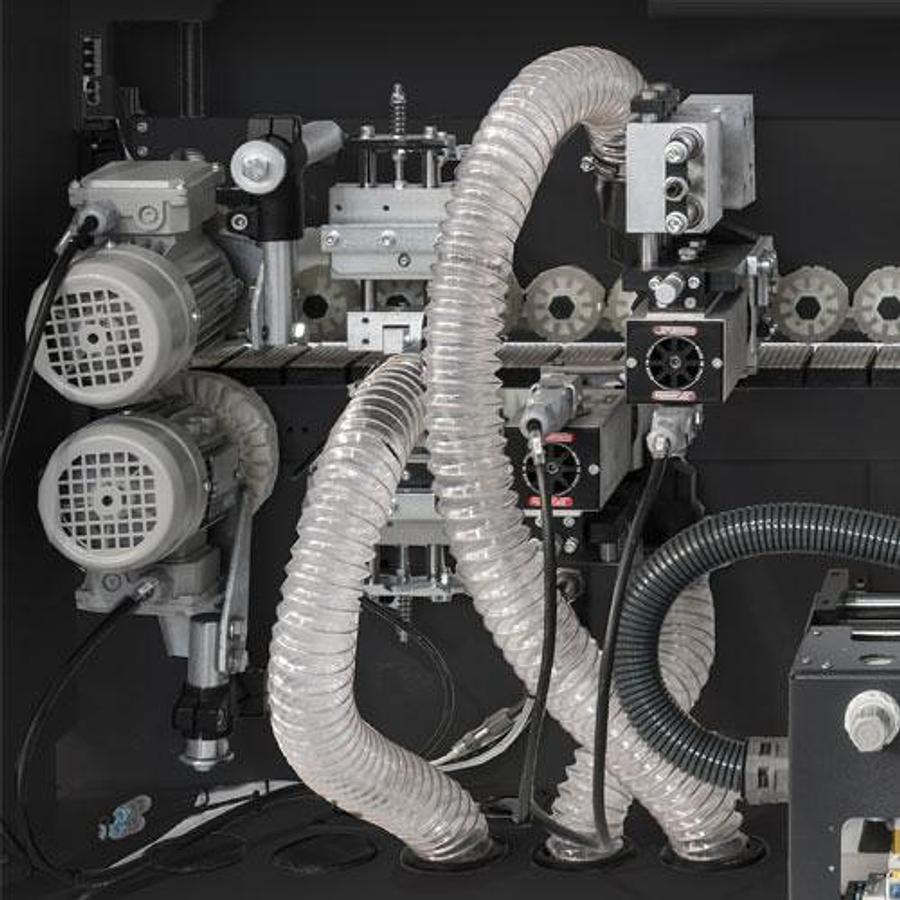

- Pre-milling Unit 2 HF Motors with Diamond Cutters
- XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)
- C.A.S.S - Cleaning Agent Spraying System
- Glue Pot Capacity 1.5kg | 3.3lbs Teflon Coated
- Automatic feeding Speed 18 ft/min
- Conveyor Chain Feed System for optimum results.
- HF motors controlled by independent electronic inverters
- Net Weight 1653 Lbs | 750 kgs
- Compact Design
- Melamine/PVC/ABS/PP
Specifications
Manufacturer | Maksiwa |
Model | CBC.PCR |
Condition | New |
Stock Number | CBC.PCR |
Automatic Feeding speed | 18 ft/min |
Panel thickness Min/Max | 21/64” - 1 31/32” |
Max Pre-milling Height | 1” |
Edgebanding thickness | 0.0157" - 0.118" |
Glue Pot Capacity | 3.3lbs |
Max Edgebanding Height | 2" |
Minimum panel width | 3" |
Minimum panel length | 7 7/8" |
Extendable Panel Support Rail Length | 103" |
Extension table Max Width | 54" |
Size of Dust Collector Ports | 6'' |
Minimum Dust Collection Requirements | 1236 CFM |
Air Pressure Requirement | 14 SCFM @ 87PSI |
Edgebanding coil Support Diameter | 59" |
Recommend Glue Temperature Range | 356°F - 410°F |

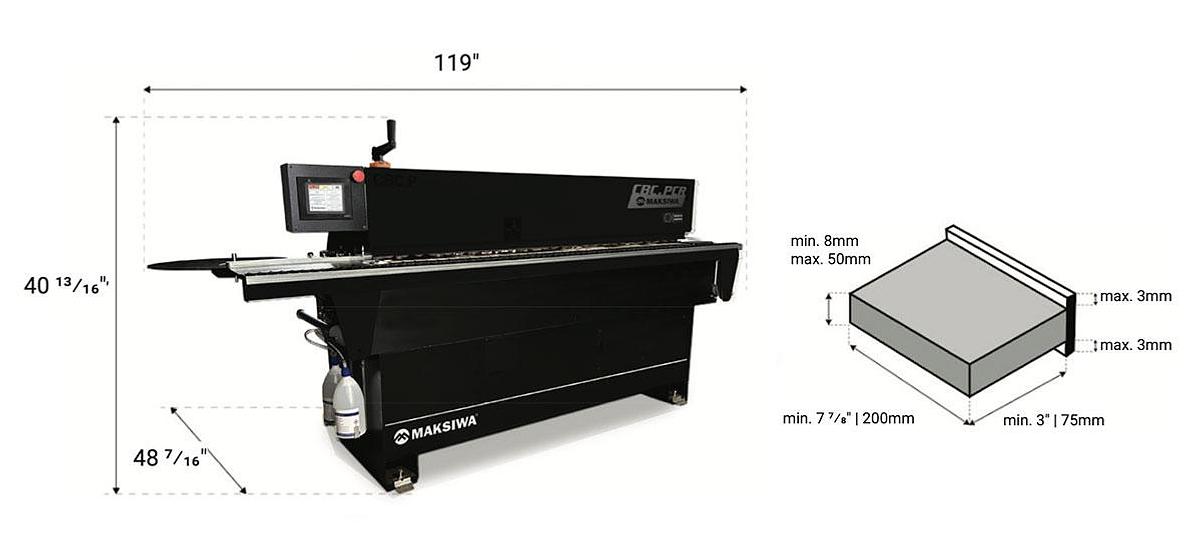

Max. machine dimensions (LxWxH) | 119”x 40 16/16”x 48. 7/16” |
Net weight | 1411 LBS |
Shipping dimensions (LxWxH) | 111” x 30” x 57” |
Glue Type | Granulated Hot-Melt EVA / PUR |
Electrical Information | 1 Phase 220V 30 Amps 60Hz |
Sound Rating | 80 dB |
