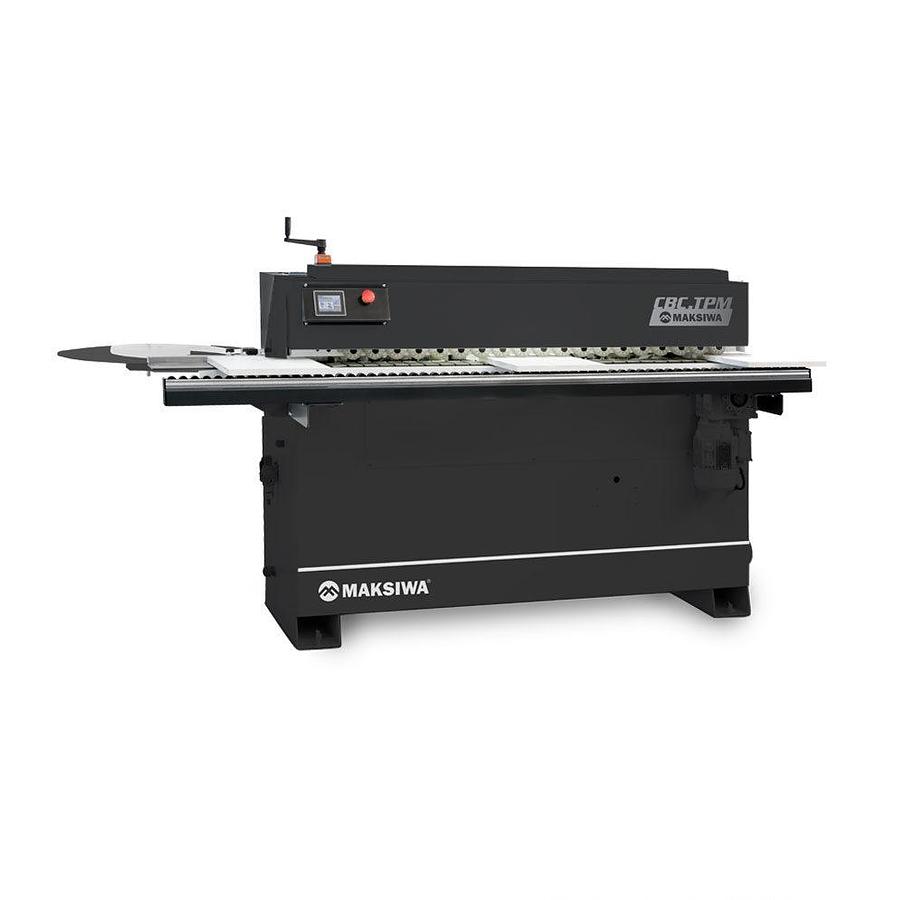

Maksiwa CBC.TPM Edgebander Pre-Milling

Maksiwa CBC.TPM Edgebander Pre-Milling

Contact us for price

Get Financing

Location:Dundee, NY

or
Call +1 (607) 678-4374

Description

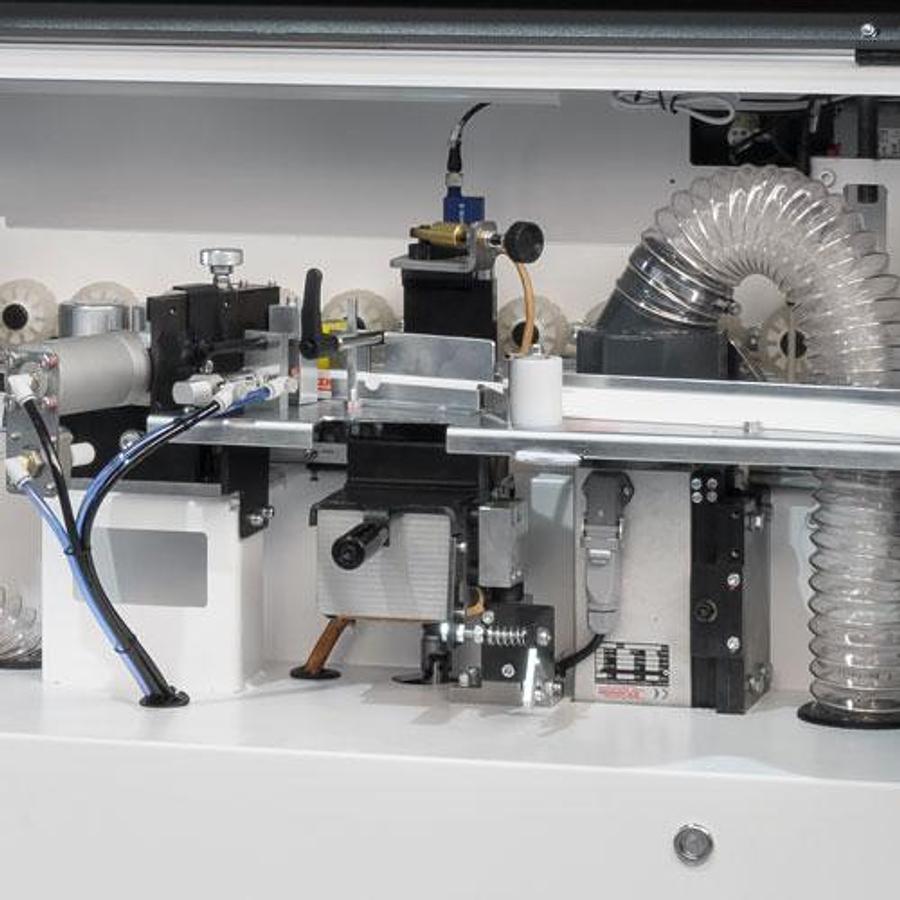

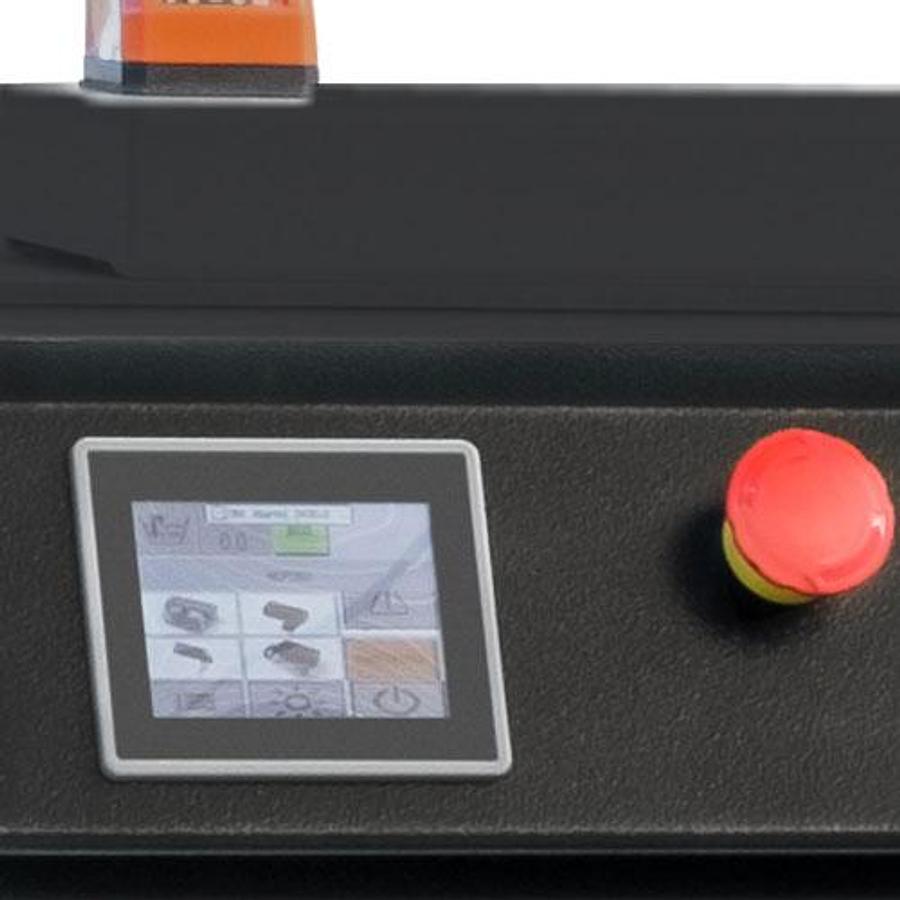

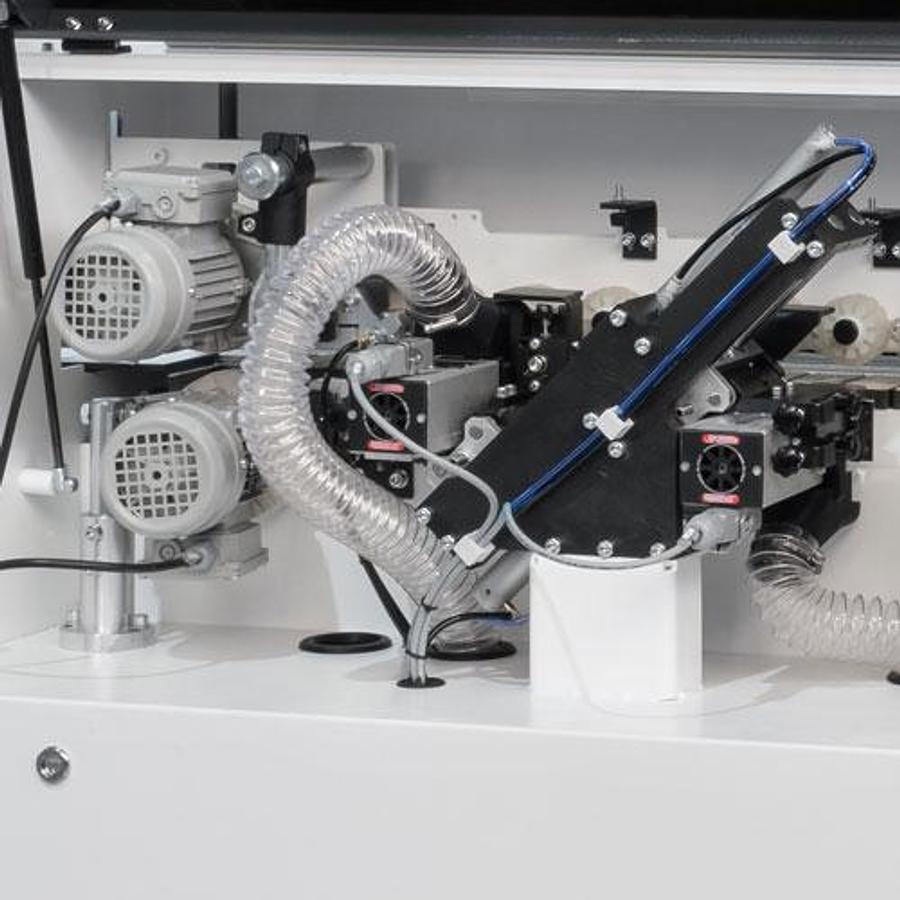

The Maksiwa CBC.TPM Automatic Edgebander combines precision and efficiency with a compact design, making it ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end trimming and top & bottom trimming, glue scraping, buffing, and vertical rounding for versatile performance. Equipped with a touchscreen panel, this machine ensures ease of operation and delivers a flawless finish. Each high-frequency motor is controlled by an independent electronic converter.


Pre-milling in a small footprint

  • Edge Tape: 0.4-2 mm
  • Panel Thickness: 10-40mm
  • 1 Phase 220V 60Hz
  • Glue Scraper Unit
  • Buffing Unit
  • End Trimming HF Motor
  • Pre-milling Unit 1 HF Motors
  • Glue Pot Capacity 0.5kg | 1lbs Teflon Coated
  • Automatic feeding Speed 21 ft/min
  • Net Weight 1146 Lbs | 520 kgs
  • Compact Design
  • Melamine/PVC/ABS/PP


Show All

Specifications

ManufacturerMaksiwa
ModelCBC.TPM
ConditionNew
Stock NumberCBC.TPM
Automatic Feeding speed21 ft/min
Panel thickness Min/Max13/32” - 1 3/4”
Max Pre-milling Height1”
Edgebanding thickness0.0157" - 0.07"
Glue Pot Capacity1lbs
Max Edgebanding Height1"
Minimum panel width1 3/4"
Minimum panel length4 3/4''
Extendable Panel Support Rail Length83 1/2"
Extension table Max Width10"
Size of Dust Collector Ports6"
Minimum Dust Collection Requirements1236 CFM
Air Pressure Requirement14 SCFM @ 87PSI

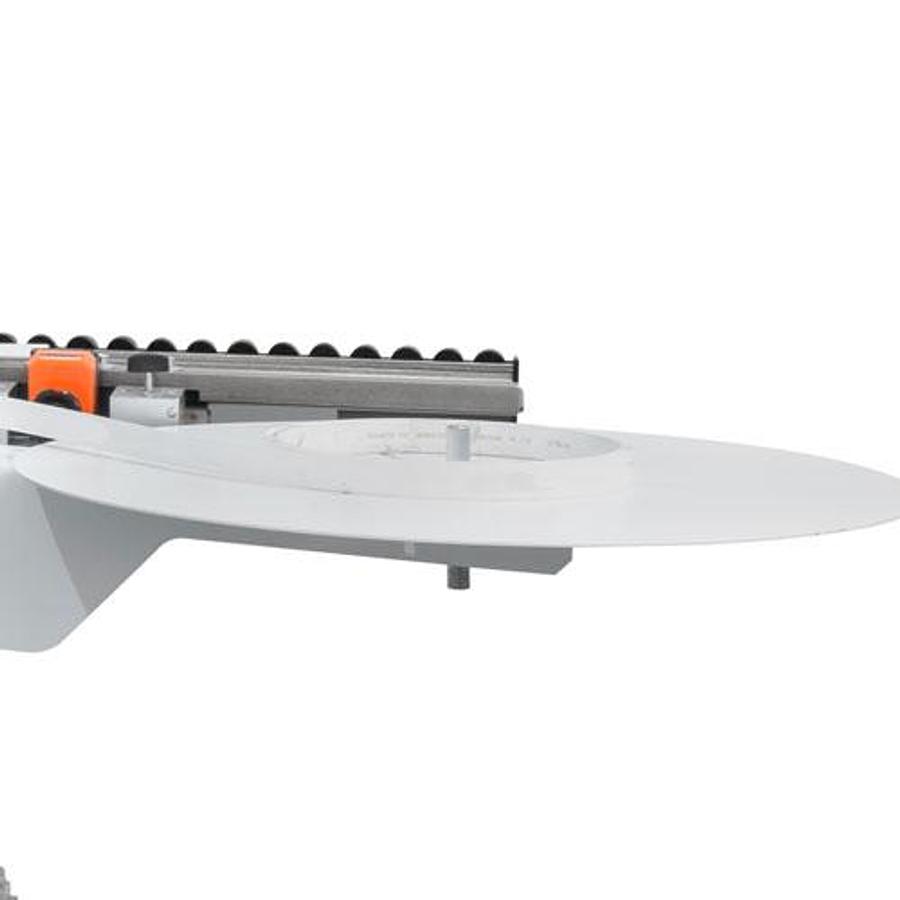

Edgebanding coil Support Diameter59"
Recommended Glue Temperature Range356°F - 410°F

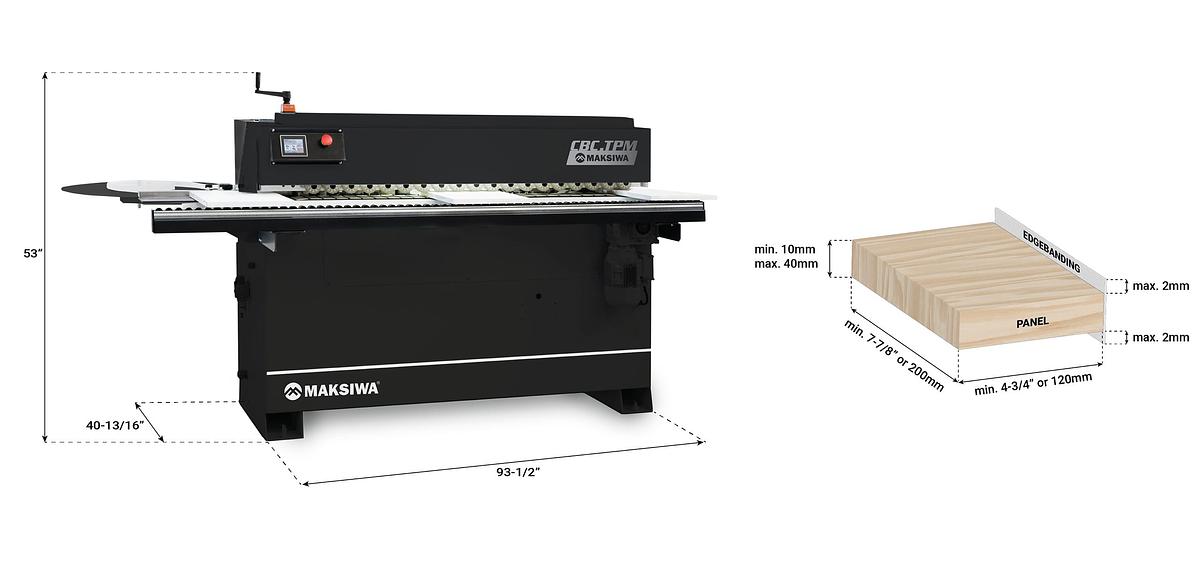

Max. machine dimensions (LxWxH)93 1/2”x 40 13/16”x 53”
Net weight1191 LBS
Shipping dimensions (LxWxH)91” x 30” x 57”
Glue TypeGranulated Hot-Melt EVA
Electrical Information1 Phase 220V 30 Amps 60Hz
Sound Rating80 dB
