Maksiwa CBC.T Titanium Automatic Edgebander

Maksiwa CBC.T Titanium Automatic Edgebander

Contact us for price

Location:Dundee, NY

Description

Experience a finished product like never before. A masterpiece of engineering, this edgebander is packed with features to make your job easier. The exceptionally steady and stable CBC.T platform uses a stainless-steel mono-block base. Simply lift the protection hood to access all operating components.

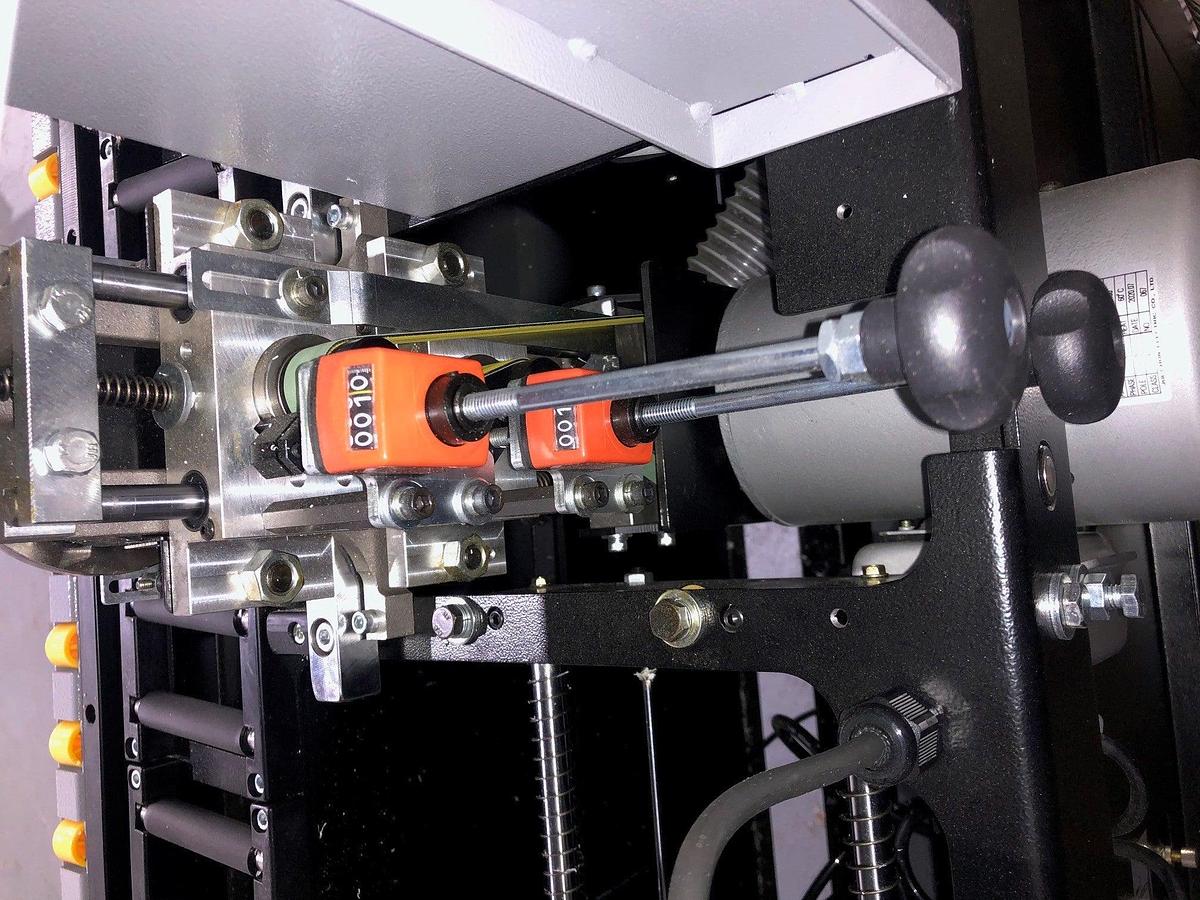

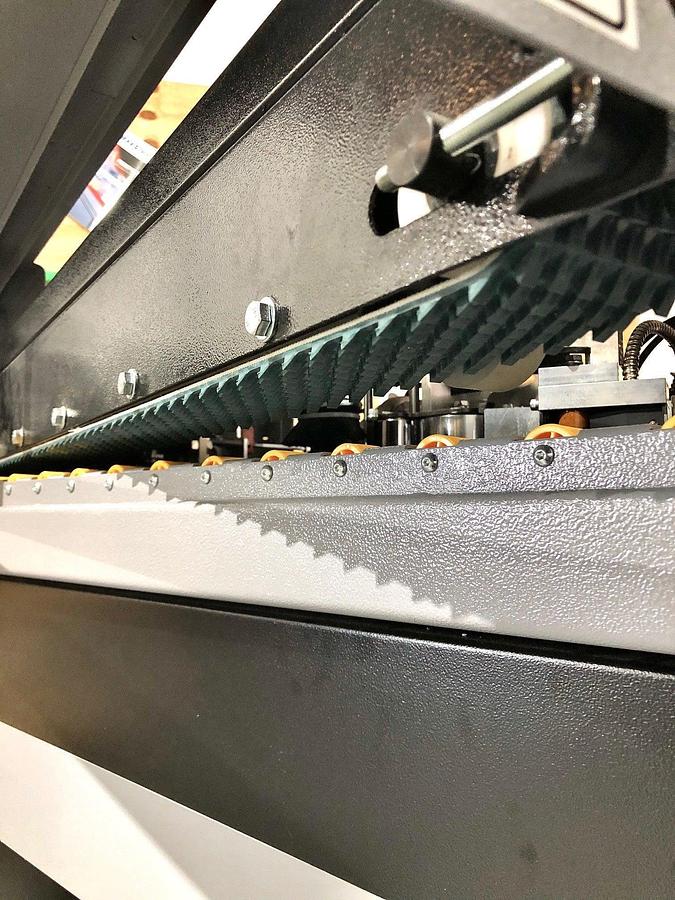

A friction-free worktable feeds panels with high-precision as rollers move the panels through effortlessly and smoothly. Panel processing is fully automated and synchronized, while maintaining manual adjustments and mechanical readouts for reference.

Specifications

ManufacturerMaksiwa
ModelCBC.T
ConditionNew
Stock NumberCBC.T
Automatic Feeding speed16ft/MIN
Panel thickness Min/Max31/64" - 1 3/4"
Edgebanding thickness0.0157" - 0.118"
Glue Pot Capacity2 Lbs
Max Edgebanding Height2"
Minimum panel width4 3/4"
Minimum panel length9 7/16"
Extendable Panel Support Rail Length78 21/32"
Extension table Max Width12"

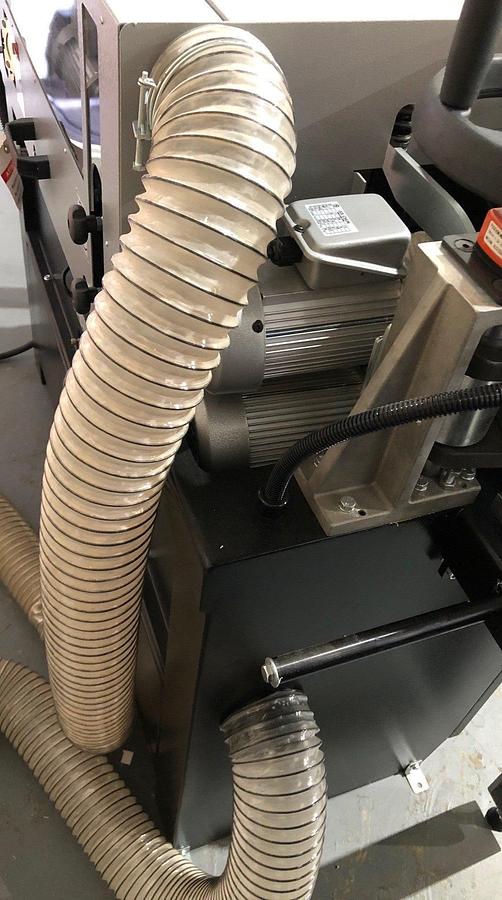

Size of Dust Collector Ports (2)4"
Minimum Dust Collection Requirements700 CFM

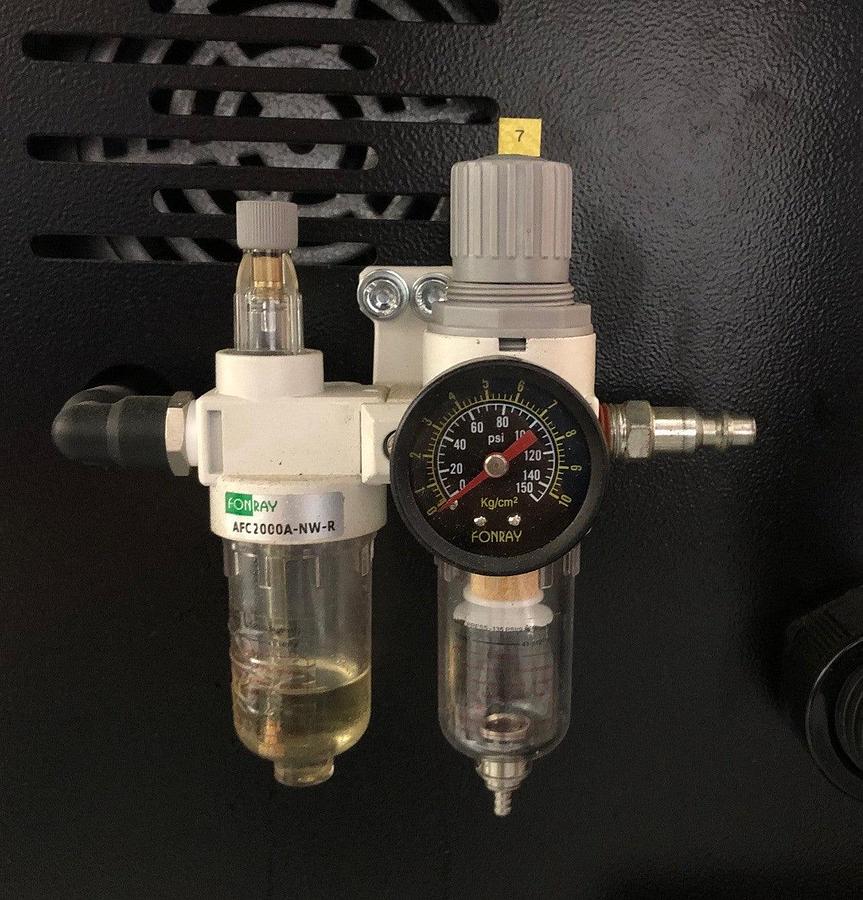

Air Pressure Requirement6 SCFM @ 100 PSI
Edgebanding coil Support Diameter31 1/2"
Recommend Glue Temperature Range356°F - 410°F
Glue TypePellet - Granulated Hot-Melt
Max. machine dimensions (LxWxH)112"x 63"x 51"
Machine weight849 LBS
Shipping dimensions (LxWxH)86" x 36" x 57"
Shipping weight1025 Lbs
Sound Rating80 dB
