Laguna, 18|Bx Bandsaw

Laguna, 18|Bx Bandsaw

Contact us for price

Dundee, NY

orCall +1 (607) 243-7167

Description

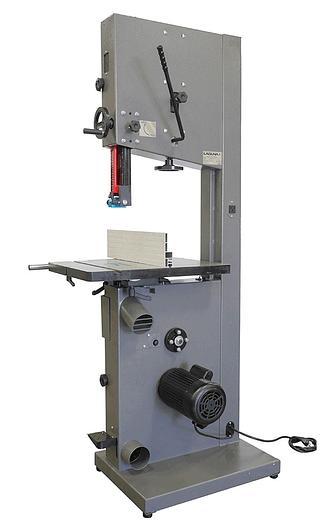

The 18|BX Bandsaw follows the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models.

The 18|bx is built around a 3HP, 220V motor, and 145” (368 cm) blade for consistent results, cut-after-cut, regardless of material.

(Shown with optional mobility kit)


Features

Disc-Brake With Micro Switch

220V Outlet On Back For Light

Window For Tension

Window For Tracking

Magnetic Blade Tension Guide

Worm Gear & Pinion Upper Guide

10 Point Laguna Ceramic Guides

Flat Poly-Groove Drive Belt

Premium Anodized Insert With Micro Adjustment

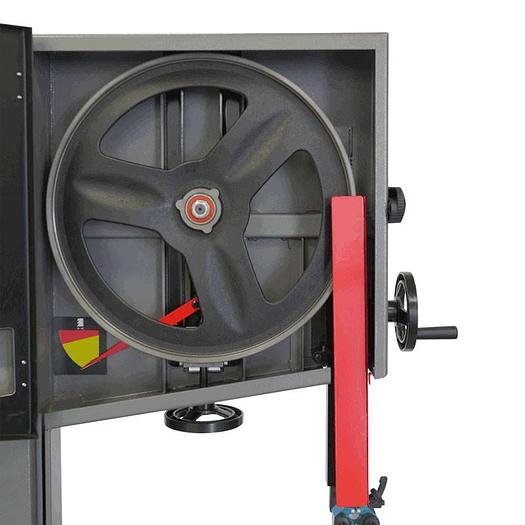

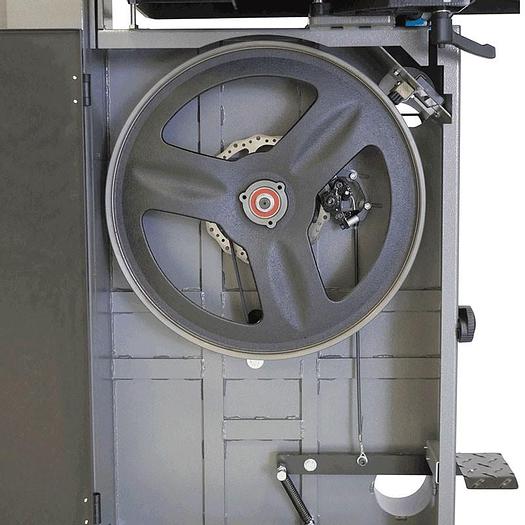

Dynamically Balanced Cast Iron Wheels

Urethane Single Piece Snap-On Tire

Cast Table Size: 20″ x 26″

Table Tilt: -6°, +45°

Cast Table Size: 20″ x 26″

Table Tilt: -6°, +45°

Quick-Release Tension

Hi/Low Anodized Aluminum Fence: 22½” x 5¾” x ½”

Table Height: 38″

Dust Ports: 4″ x 2

Overall Height: 77¾”

Dimensions (Base): 27″ x 20″

Dimensions Overall: 36″ x 30″

Dimensions Box: 82″ x 34″ x 24″

Weight (Net/Ship): 410/460 lbs

Shipping Weight: 490lbs

Shipping Dimensions (L x W x H): 55in x 22in x 25in

Specifications

ManufacturerLaguna
ConditionNew
Stock NumberMBAND18BX2203
