Laguna, 14|Bx Bandsaw
or
Call +1 (607) 678-4374
Description
14|bx Bandsaw
Main differences from 14|12:
– Weight increased
– Solid one-piece Frame
– Frame is heavier Gauge
– Magnetic On/Off Switch

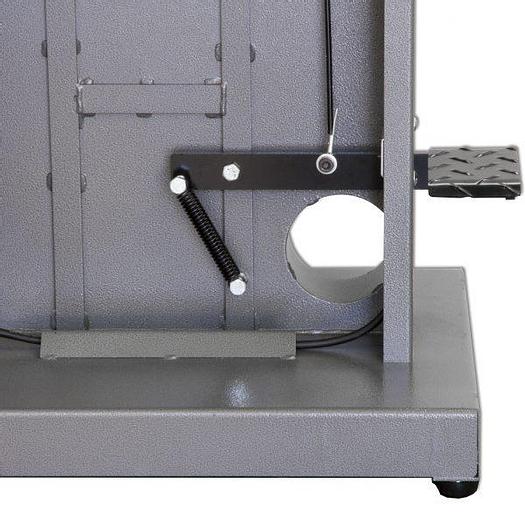

– Disc-Brake w/ Micro-Switch
– Dual light mounting positions
Shown with optional Blade
* Blade Not Included
Features
- 12″ Resaw
- Height: 70-1/4″
- 21-1/2″ X 16″ Table
- Table Height: 38″
- 7° Table Tilt Left
- 2 X 4″ Dust Ports
110 Volt
- 1.75HP, 14 Amp, TEFC
- 110 Volt Outlet for Light
- 6′ Cord with Nema Plug: 5-15P
- Weight (Net/Ship): 260/320 lbs
220 Volt
- 1 Phase, 2.5HP, 9.8 Amp, TEFC
- 220 Volt Outlet for Light
- 6′ Cord with Nema Plug: 6-15P
- Weight (Net/Ship): 270/330 lbs
Specifications
| Manufacturer | Laguna |
| Model | 14|Bx |
| Condition | New |
| Stock Number | MBAND14BX |
| Height | 70-¼″ |
| Table Size | 21-½″ x 16″ |
| Table Height | 38″ |
| Table Tilt Left | 7° |
| Table Tilt Right | 45° |
| Number of dust ports | 4″ x 2 |
| Blade Length | 115'' |

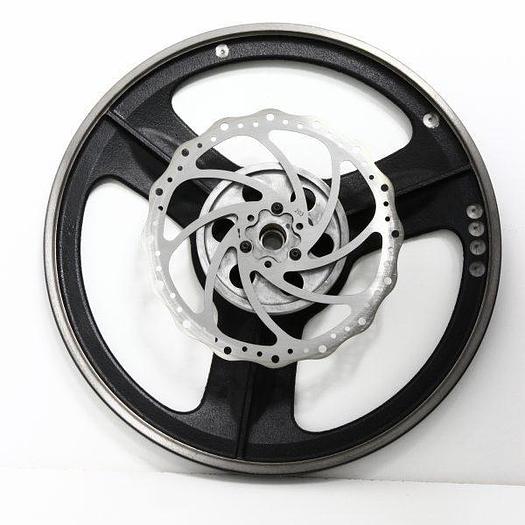

| Cast Iron Wheels | Yes |
| Magnetic Starter | Yes |
| Dual Light Mount | Yes |
| Max. Blade Width | ¾″ |
| Pyramid-Shaped Spine | Yes |
| Min. Blade Width | ⅛″ |
| Footprint | 17-½″ x 22-½″ |
| Quick Release Tension | Yes |
| Magnetic Blade Guard | Yes |

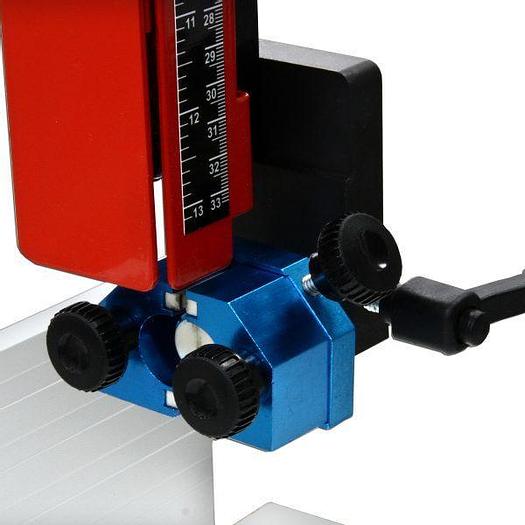

| Laguna Ceramic Guides | Yes |
| Hi/Low Aluminum Fence | Yes |
| Worm Gear Rack & Pinion | Yes |

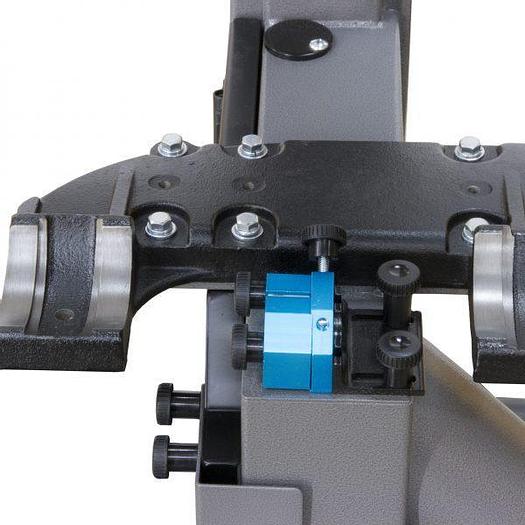

| Massive Cast Trunion | 8″ x 13″ |
| Shipping Weight | 350lbs |
| Shipping Dimensions (L x W x H) | 73″ x 27″ x 29″ |
