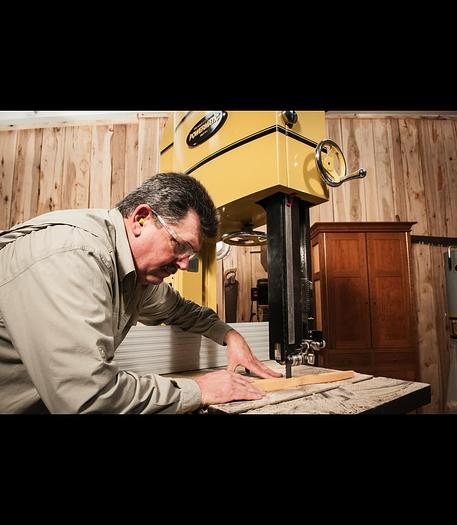

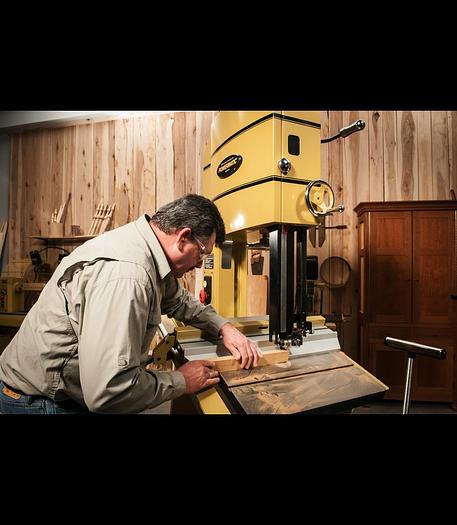

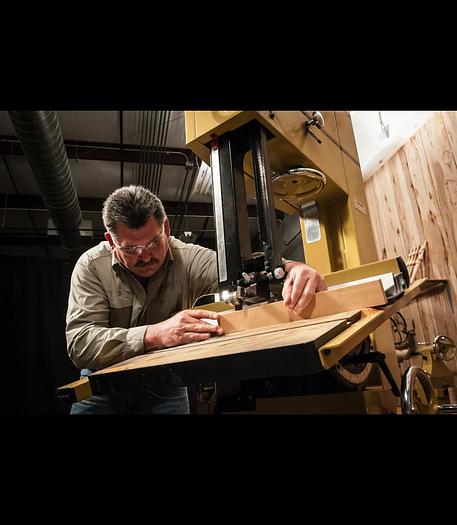

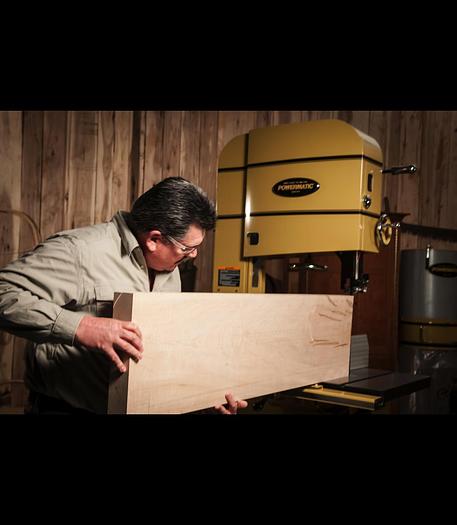

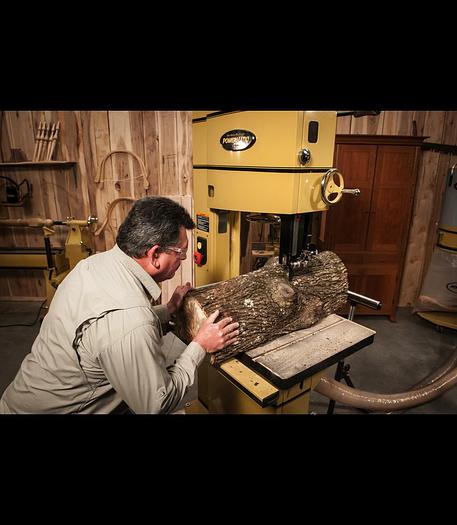

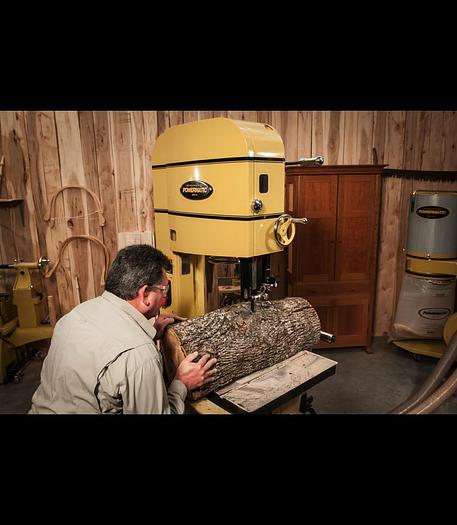

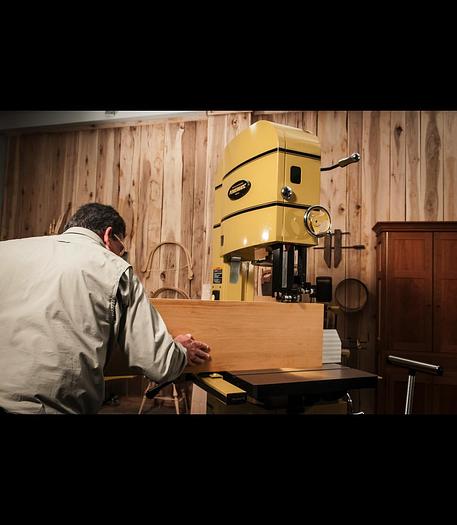

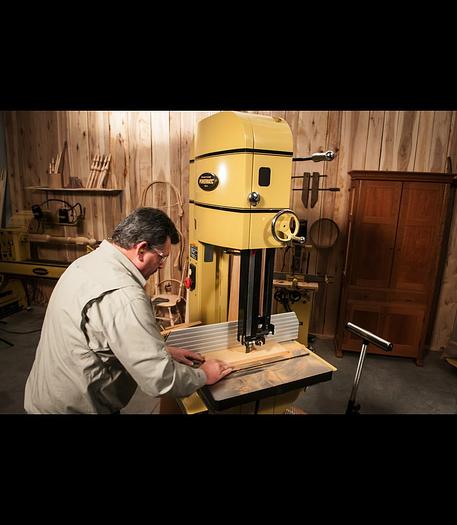

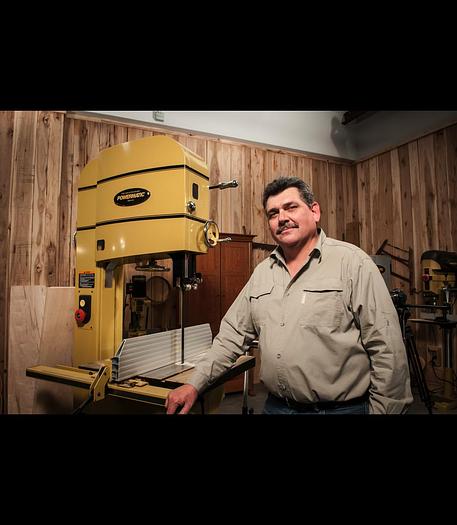

Powermatic, PM2415B-3, 24" Bandsaw, 5HP 3PH 230/460V

Powermatic, PM2415B-3, 24" Bandsaw, 5HP 3PH 230/460V

Contact us for price

Dundee, NY

orCall +1 (607) 243-7167

Description

At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.


Features

  • Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned

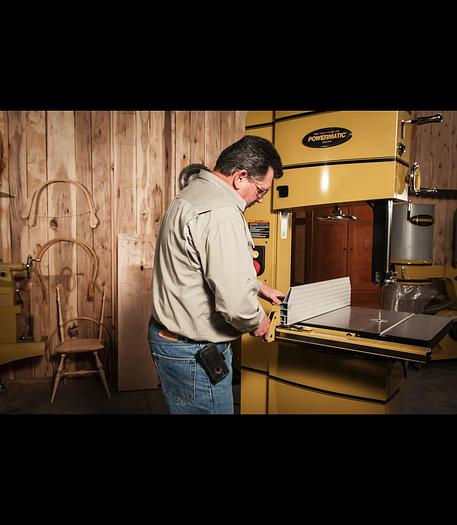

  • Exclusive Powermatic T-square style Accu-FenceĀ® maximizes accuracy and safety
  • Heavy duty upper wheel support and tracking mechanism for smooth operation
  • High end blade guides with tool less adjustment provide stability, increasing cut accuracy
  • Oversized side plate can be used in the horizontal or vertical position

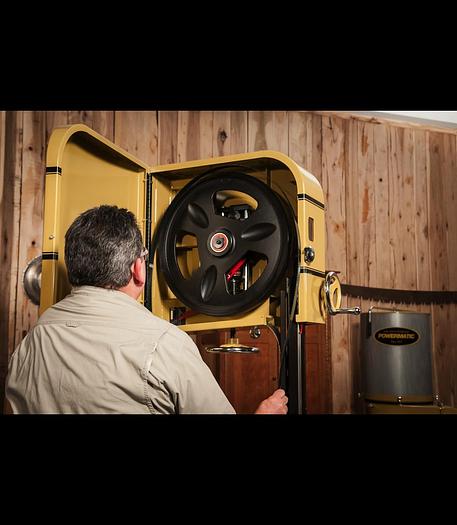

  • Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
  • Spacious, heavy duty cast iron table with more room in the front of the blade
  • Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
  • Accu-Fence has complete adjustability for aligning to blade and squaring to table


Specifications

ManufacturerPowermatic
ModelPM2415B
ConditionNew
Stock Number1791260B
BLADE LENGTH (IN)183
BLADE SPEED (SFPM)2500/4800
CUTTING CAPACITY HEIGHT (IN)15
CUTTING CAPACITY WIDTH (IN)24''
DUST COLLECTION REQUIREMENT600 CFM
DUST PORT SIZE OUTLET4''
MINIMUN SAW BLADE WIDTH1/4''
MOTOR PHASE3
MAIN MOTOR HP5
DUAL VOLTAGE230/460
PRE WIRED VOLTAGE230
RECOMMENDED CIRCUIT SIZE20 Amps
TABLE HEIGHT FROM FLOOR35''
TABLE T-SLOT3/4''

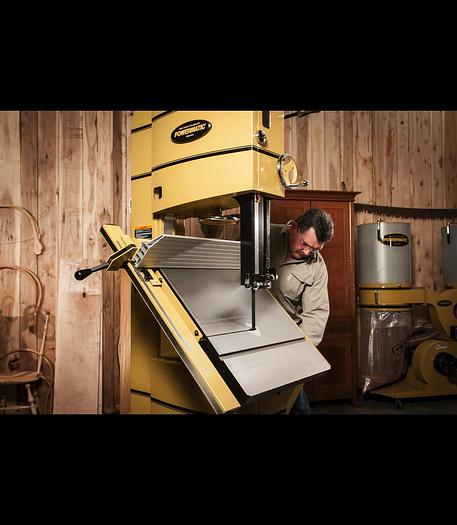

TABLE TILT(DEG)45 Right / 10 Left
