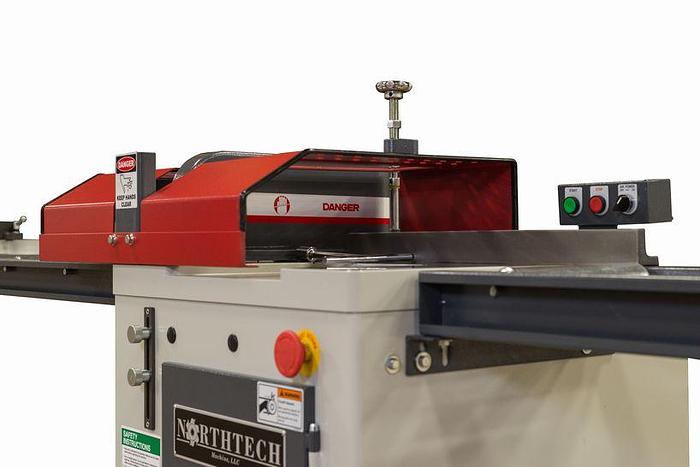

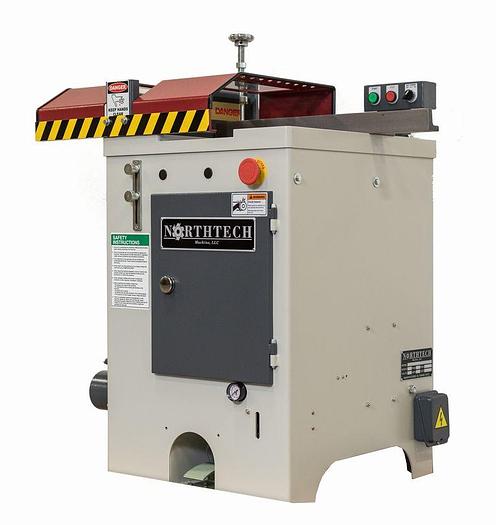

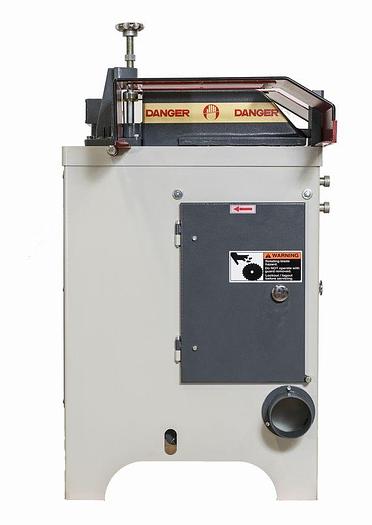

Northtech, NT-UCS14L 14″ 7.5HP Upcut Saw (Left-Hand Cut)

Northtech, NT-UCS14L 14″ 7.5HP Upcut Saw (Left-Hand Cut)

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

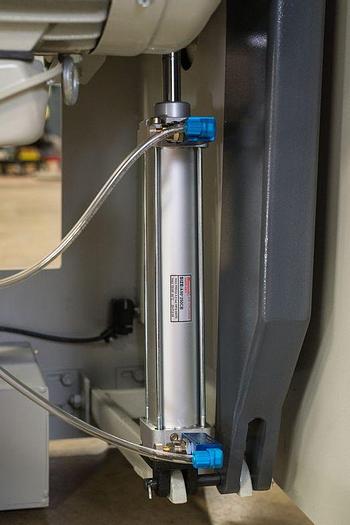

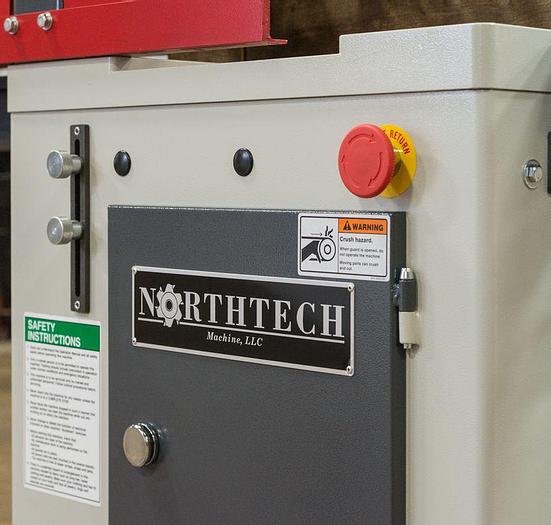

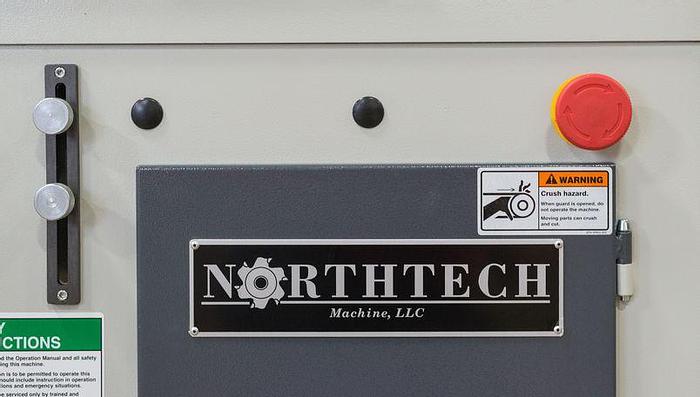

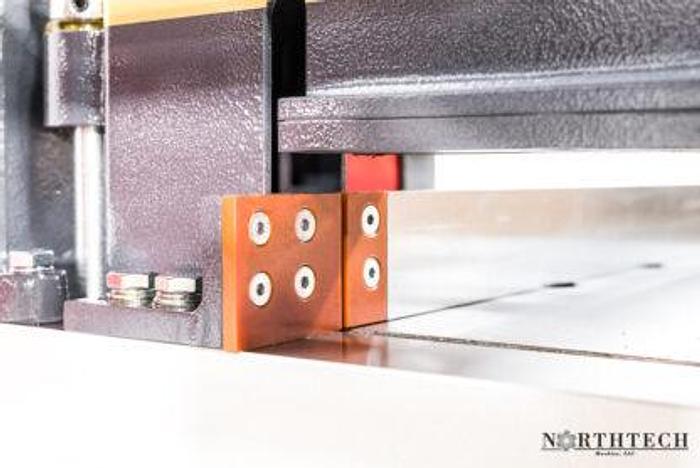

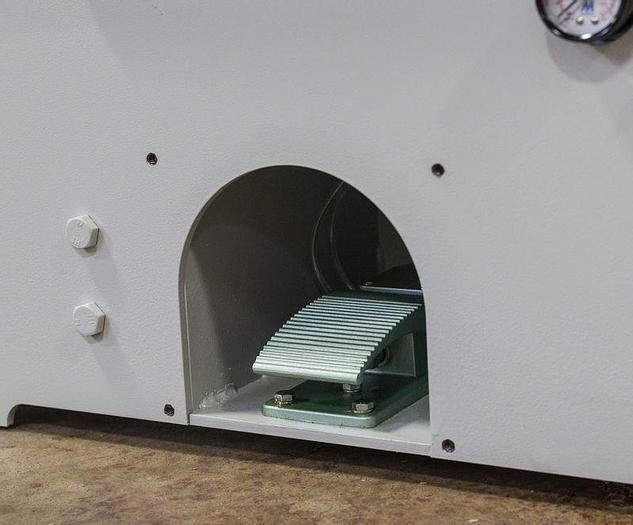

The NT UCS14L Up Cut Saw is the baby of the Northtech Up Cut Saw family. Upcut Saws house the blade inside the cabinet of the machine and use a double action cylinder to hold and cut the product safely. Left handed Up Cut Saws have the blade on the left side of the machine as you face the front of the machine and material is fed from the right to the left. Using a 14″ diameter blade the UCS14 has a capable 2″x10″ cut capacity in a small footprint making it the most user friendly model for small parts. The UCS series boasts some noteworthy features over competitive models with an improved dust collection system and preventing the need for daily blow out under the machine and it also comes with a full length fence and backer to prevent blowout on the back side of the part. This machine comes standard with stroke speed control, emergency stop, safety switch, guarding, foot operation and stroke adjustments for the blade and the top clamp making it ideal for wood and plastic application. The UCS14 has several available options such as two handed cycle operation, infeed/outfeed tables, chromed machine table and safety interlocked cabinet doors for restricted operator access.

PRODUCT DIMENSIONS •  Max cutting capacity:  1" x 11", 2" x 10", 3" x 7-1/2"


FEATURES •   7.5 HP motor, 3PH  230V with 24V magnetic controls •  14” 100T Carbide tipped blade included •  1” Saw arbor diameter •  Cycle operation:  Pneumatic •  Table size:  25” x  23-1/4” •  Quick access on front of the machine to adjust blade stroke. •   Dust requirements:  (1) 4" dust port requiring 450 CFM at point of extraction •   Net weight:   548 lbs. •   Gross weight:   685 lbs. •   Packing dimensions:  (L) 30" x (W) 30" x (H) 51" •   (1) Tool box and manual •   Warranty is one year parts •   All machines are tested stateside prior to shipment providing trouble free start up.

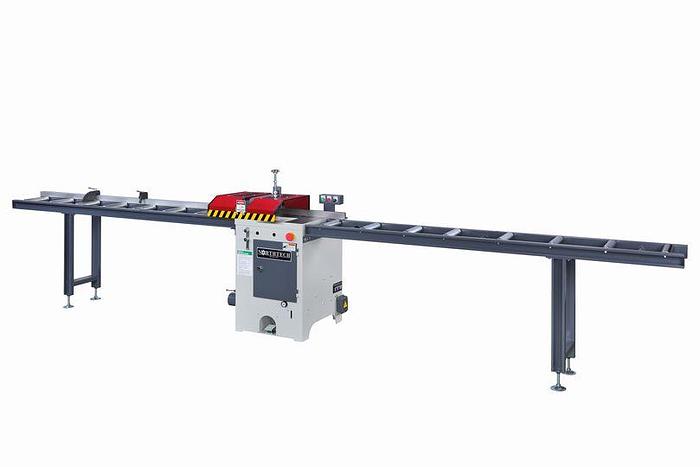

OPTIONS • 8’ infeed and 8’ outfeed with fence, legs, (2)gravity   flip stops • 16’ infeed and 16’ outfeed with fence, legs (4) sets, (2)   gravity flip stops • Custom infeed/outfeed up to 20’ long • 14" x 72T carbide tipped blade (standard with saw) • 14” x 80T carbide tipped blade • 14" x 100T carbide tipped blade • Gravity flip stops • Double palm button actuation in lieu of foot pedal • Safety interlock for blade access • 460V 3Ø electrics


Specifications

ManufacturerNorthtech
ModelNT-UCS14L
ConditionNew

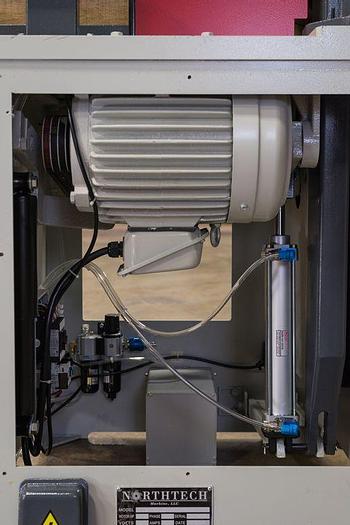

MAIN MOTOR HP7.5 HP
VOLTAGE, FREQUENCY230/460 Volt 60 Hz
PHASE3 Phase
AMP REQUIREMENT18/9 Amps
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt

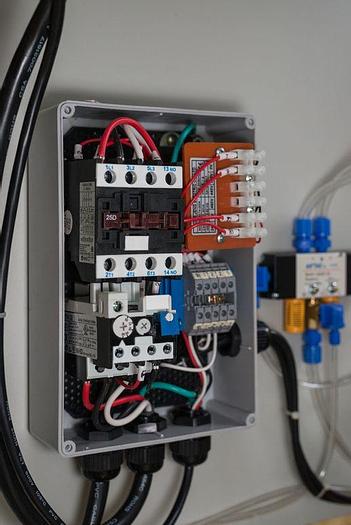

CONTROL VOLTAGE24 Volt Control Voltage
ADJUSTABLE OPERATOR PANELFixed
CUTTING ENVELOPE1/2'' x 10-1/2'', 1'' x 10-1/8'', 2'' x 9-1/8'', 3'' x 7-1/4'', 3-7/8'' x 1-7/8''
MAX. WORKING THICKNESS3-7/8''
ARBOR RPM3127 RPM

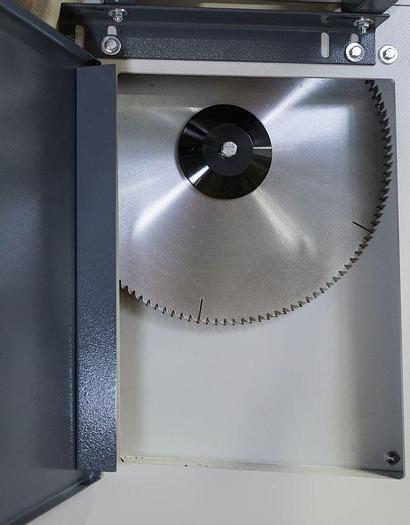

BLADE SIZE14'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE100 Tooth
TOOTH SPACING.40''
BLADE KERF.125''

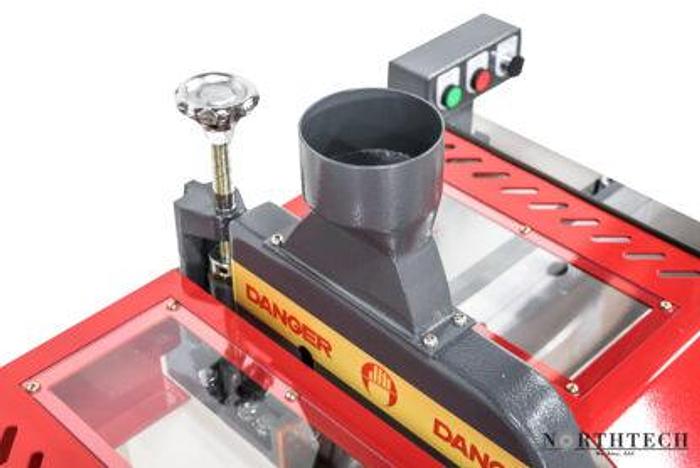

DUST COLLECTION REQUIREMENT4'' Port @ 450CFM Optional 2nd Top Port
ARBOR DIAMETER1'' Arbor
CYCLES/MINUTE78 Cuts Per Minute Adjustable
HOLD DOWN STYLET Clamp

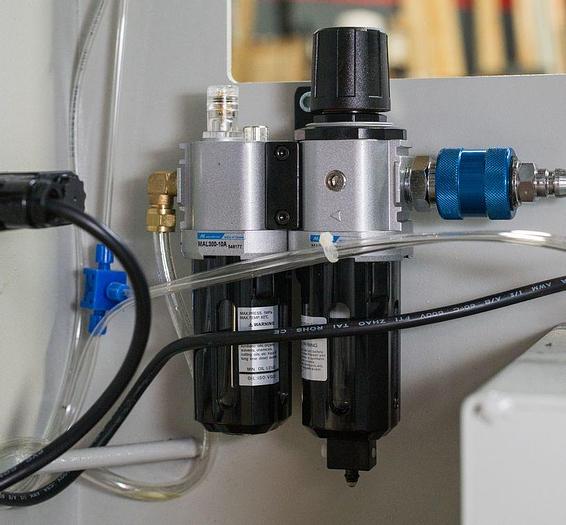

FLR INCLUDEDFilter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT1/4'' Line @ 90 PSI
SAFETY FEATURESawblade Door Safety Interlock Optional
FENCE TYPEFixed
FRAME CONSTRUCTIONSteel Construction
WORKTABLE DIMENSIONS23-1/4'' x 24-7/8''
TABLE CONSTRUCTION MATERIALCast Construction
DECIBEL RATING75 dB
NET WEIGHT548 Lbs.
GROSS WEIGHT685 Lbs.
PACKAGING DIMENSIONS40'' x 48'' x 50''
