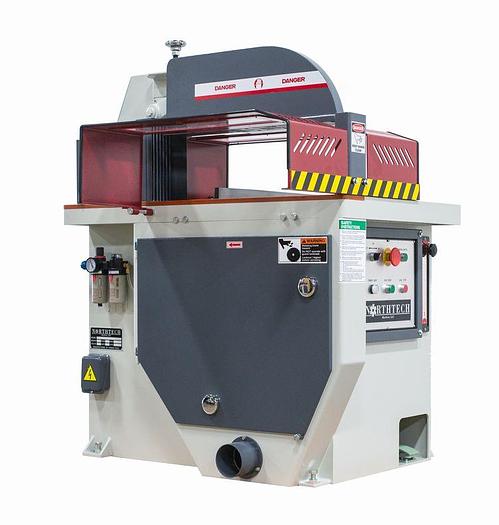

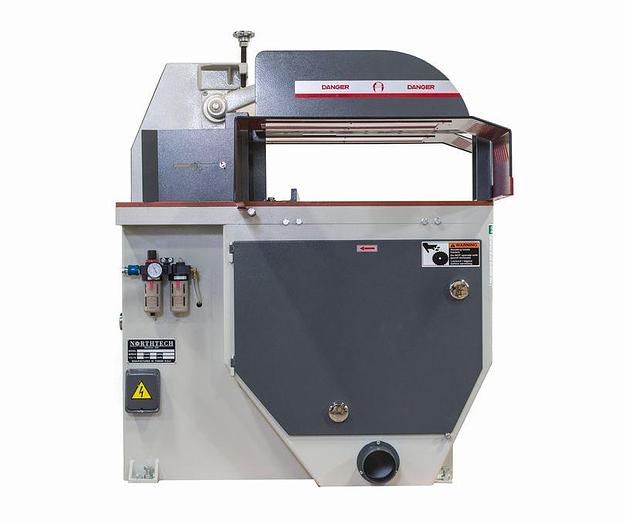

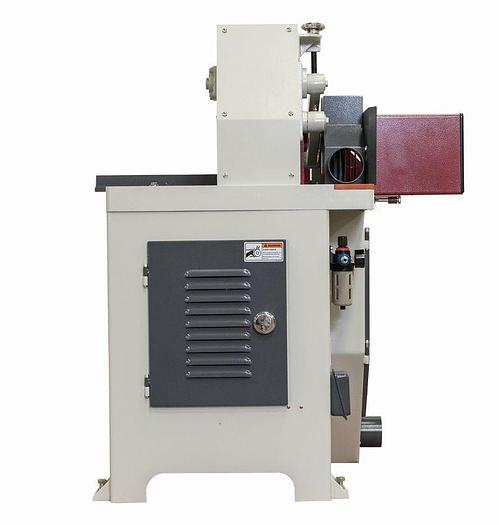

Northtech, NT-CS24L 24'' Up Cut Saw (Left Hand)

Northtech, NT-CS24L 24'' Up Cut Saw (Left Hand)

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

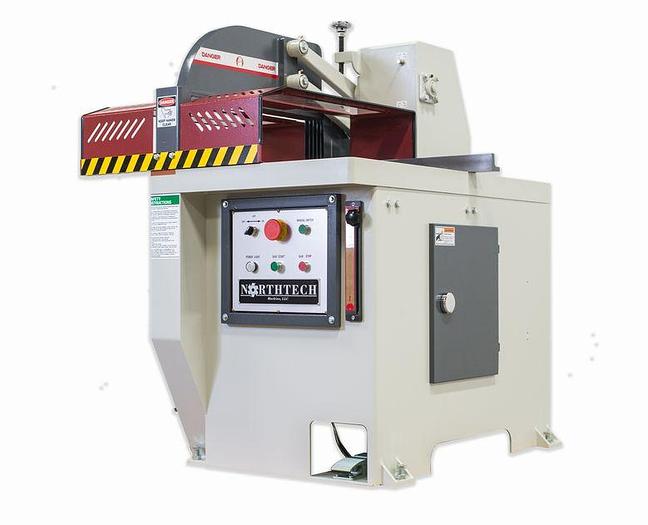

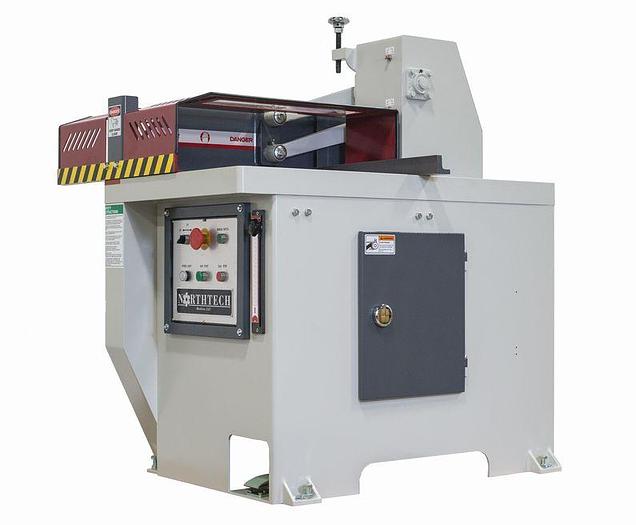

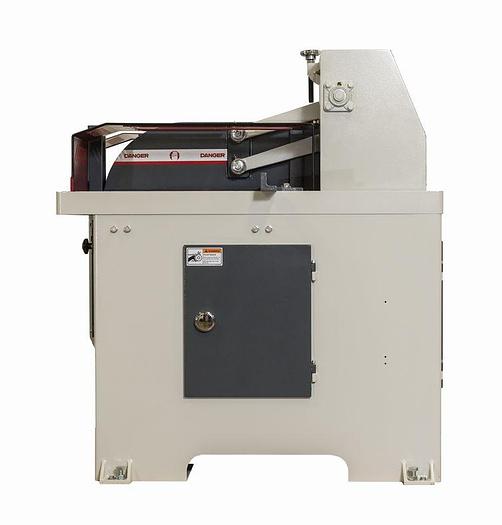

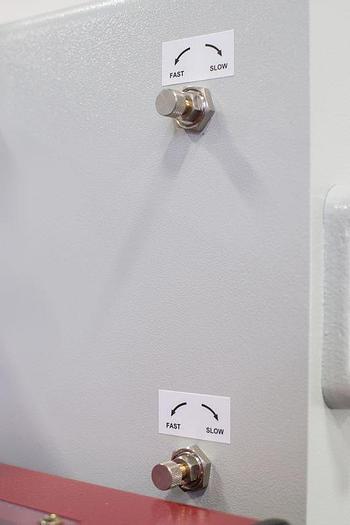

The NT CS24L Up Cut Saw is the first saw to step into the larger body frame. Upcut Saws house the blade inside the cabinet of the machine and use a double action cylinder to hold and cut the product safely. Left handed Up Cut Saws have the blade on the left side of the machine as you face the front of the machine and material is fed from the right to the left. Using a 24″ diameter blade the CS24 has a modest 2″x21″ cut capacity making it more user friendly for mid sized parts. This machine comes standard with stroke speed control, emergency stop, safety interlock on blade door, guarding, foot operation and stroke adjustments for the blade and the top clamp making it ideal for wood and plastic application. The CS24 has available options such as two handed cycle operation, infeed/outfeed tables, chromed machine table and safety interlocked cabinet doors for restricted operator access.

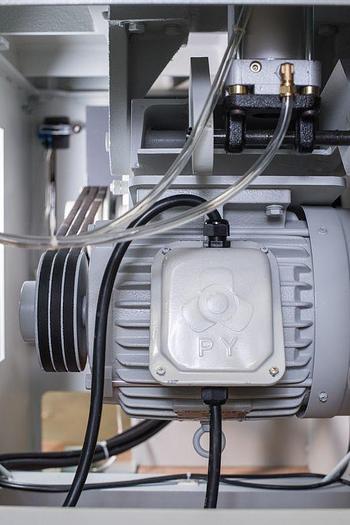

FEATURES • 15HP motor, 3PH 230V with 24V magnetic controls • 24” Carbide tipped blade included • Cycle operation: Pneumatic • Quick access on front of the machine to adjust blade stroke. • Safety interlock on blade access door • Table size: 28-3/4” x 45” • 2100 RPM • (1) Tool box and manual • Warranty is one year parts • All machines are tested stateside prior to shipment providing trouble free start up.

Specifications

ManufacturerNorthtech
ModelNT-CS24L
ConditionNew
Stock NumberNT-CS24L
MAIN MOTOR HP15 HP
VOLTAGE, FREQUENCY230/460 Volt 60HZ
PHASE3 Phase
AMP REQUIREMENT16/32 Amps
CONTROL VOLTAGE24 Volt Control Voltage
ASSISTED STARTWye Delta
PASS-LINE34''
CUTTING ENVELOPE1'' x 21'', 2'' x 21-1/2'', 3'' x 20'', 4'' x 18-1/2'', 5'' x 16-3/4'', 6'' x 14-1/4'', 7'' x 11-1/4'', 6'' x 8''
MAX. WORKING WIDTH21-1/2''
MAX. WORKING THICKNESS8-3/8''
ARBOR RPM2100 RPM

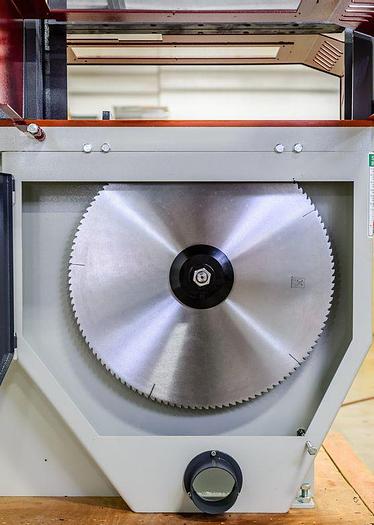

BLADE SIZE24'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE100 Tooth
TOOTH SPACING5/8''
BLADE KERF.156''
DUST PORT SIZE OUTLET(2) 4'' Ports
ARBOR DIAMETER1''
CYCLES/MINUTE26 Cycles Per Minute
HOLD DOWN STYLET Clamp

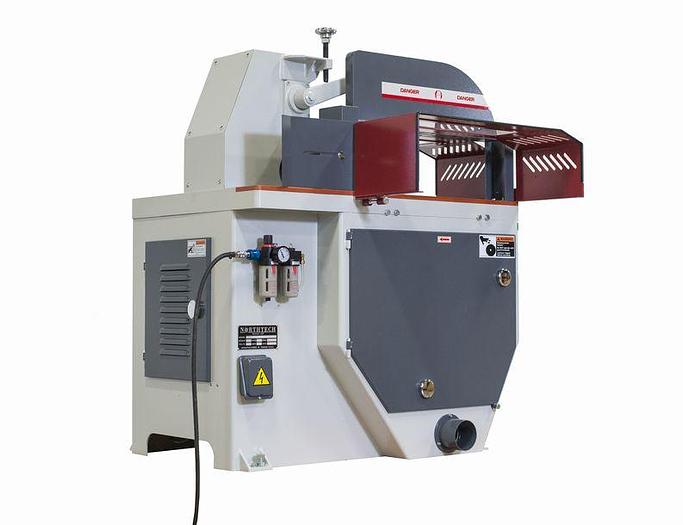

FLR INCLUDEDFilter, Lubricator, Regulator
SAFETY FEATURESawblade Door Safety Interlock

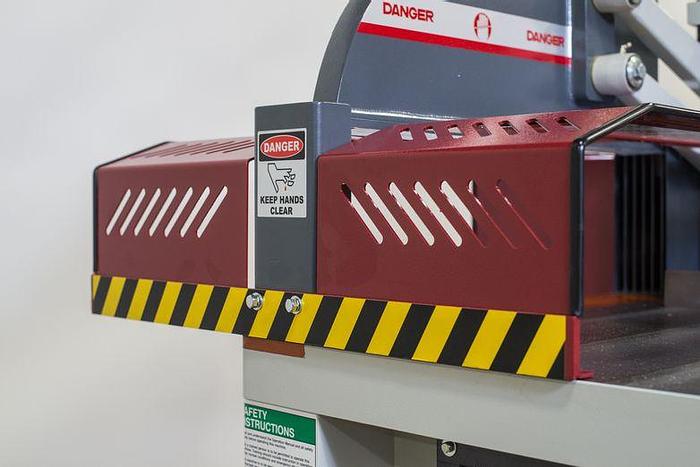

GUARDINGClear View Guard
OPERATION STYLEFoot Pedal (Optional Dual Palm Buttons
FENCE DIMENSIONS2'' x 25-1/8''
FRAME CONSTRUCTION1/4'' Steel
DECIBEL RATING68 dB
NET WEIGHT1285 Lbs.
GROSS WEIGHT1455 Lbs.
MACHINE DIMENSIONS31-3/4'' x 45'' x 56''
PACKAGING DIMENSIONS36'' x 51'' x 61''
