Northtech, NT-UCS18L Up Cut Saw (Left Hand Cut)

Northtech, NT-UCS18L Up Cut Saw (Left Hand Cut)

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

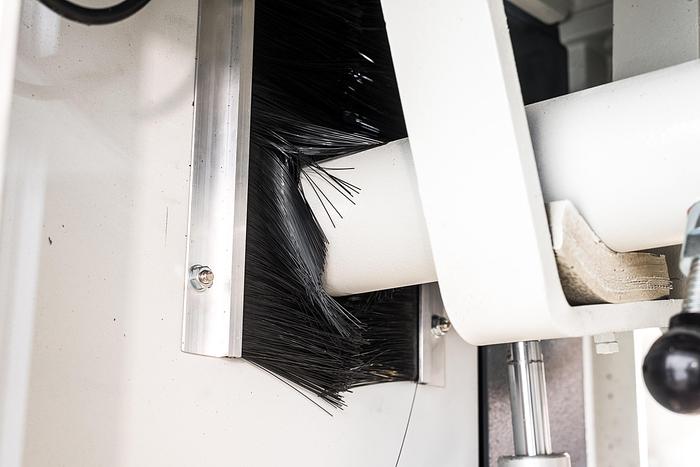

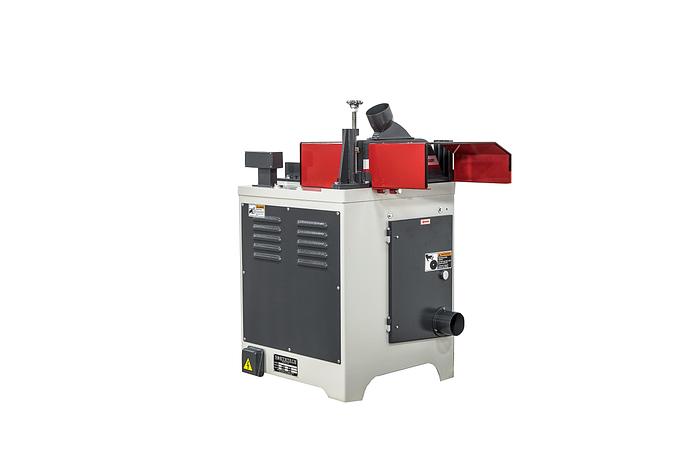

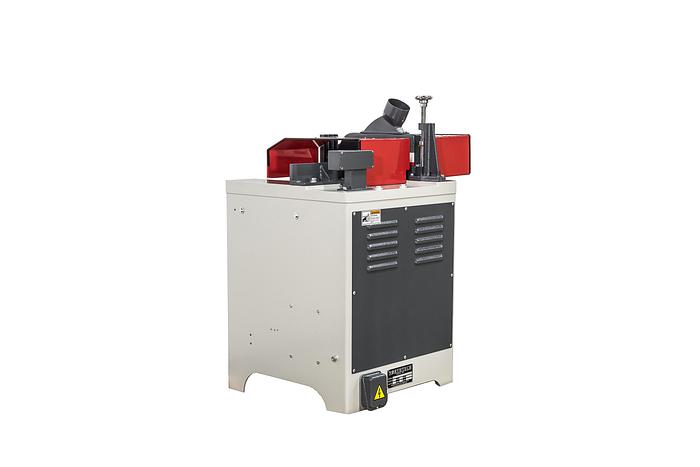

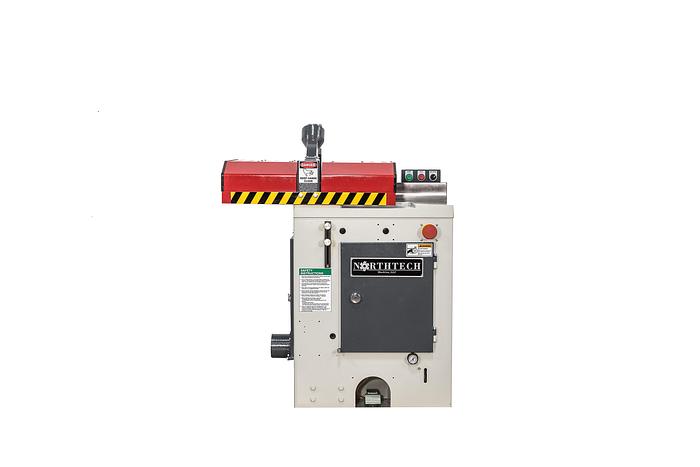

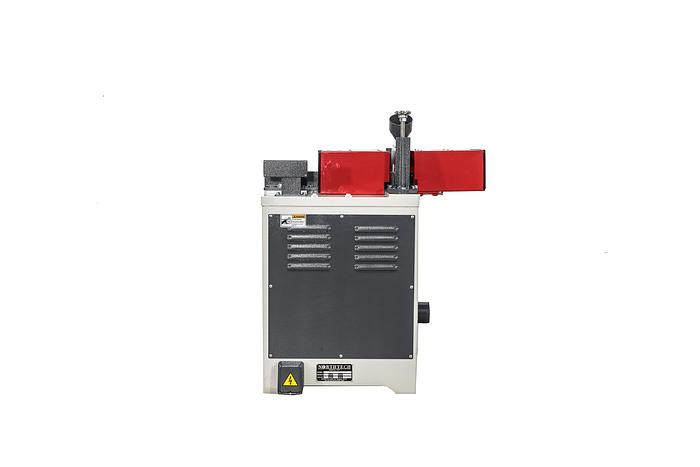

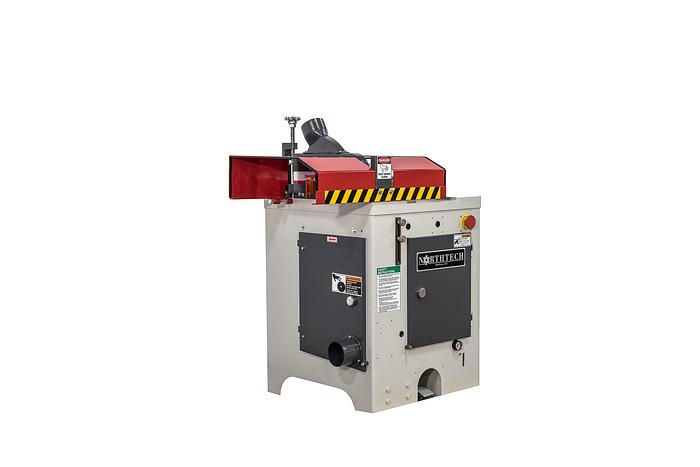

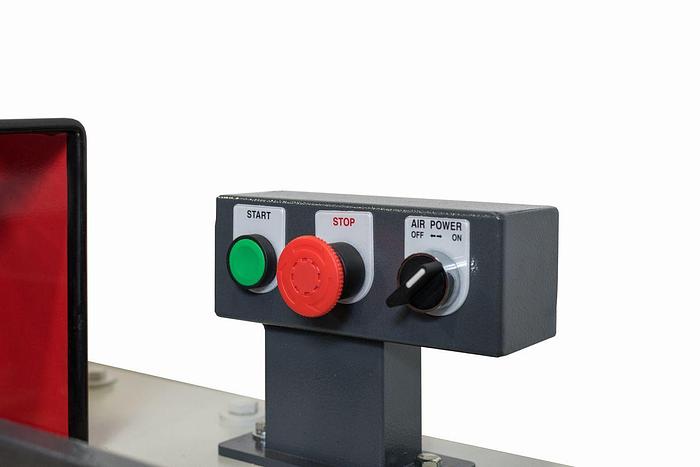

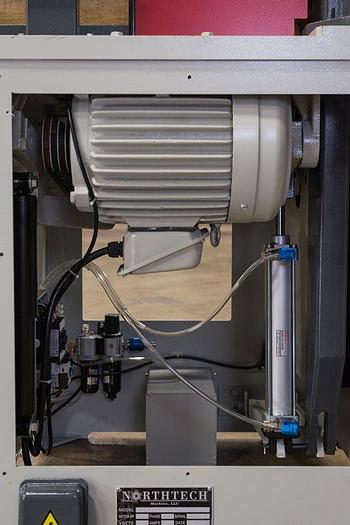

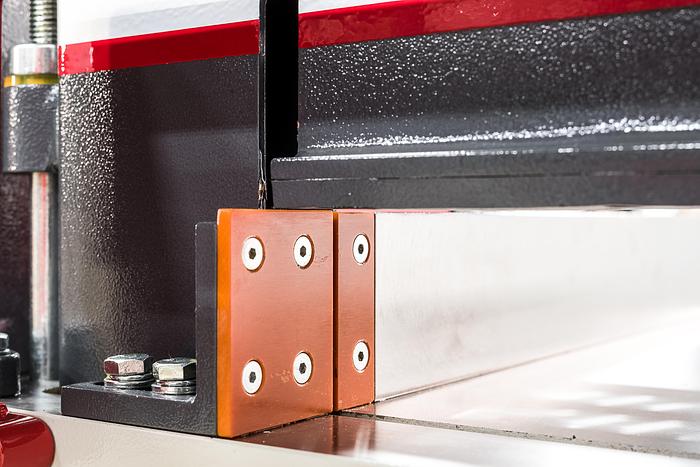

The NT UCS18L Up Cut Saw is the most popular model in the Northtech Up Cut Saw family. Upcut Saws house the blade inside the cabinet of the machine and use a double action cylinder to hold and cut the product safely. Left handed Up Cut Saws have the blade on the left side of the machine as you face the front of the machine and material is fed from the right to the left. Using a 18″ diameter blade the UCS18 has a capable 2″x12″ cut capacity in a small footprint making it ideal for smaller to midsize parts. The UCS series boasts some noteworthy features over competitive models with an improved dust collection system preventing the need for daily blow out under the machine and it also comes with a full length fence and backer to prevent blowout on the back side of the part. This machine also comes standard with stroke speed control, emergency stop, safety switch, guarding, foot operation and stroke adjustments for the blade and the top clamp making it ideal for wood and plastic application. The UCS18 has several available options such as two handed cycle operation, infeed/outfeed tables, chromed machine table and safety interlocked cabinet doors for restricted operator access.

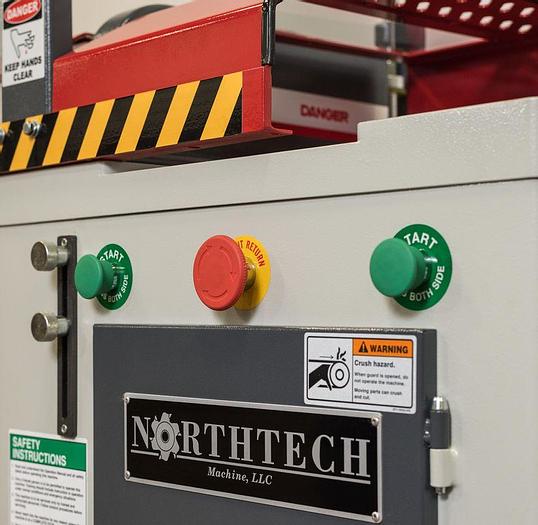

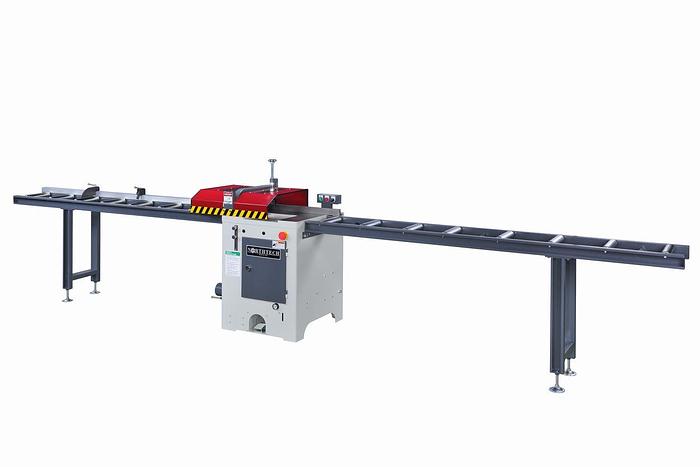

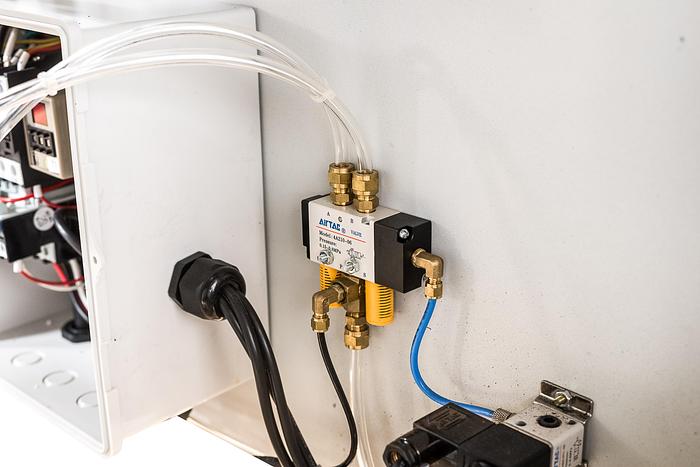

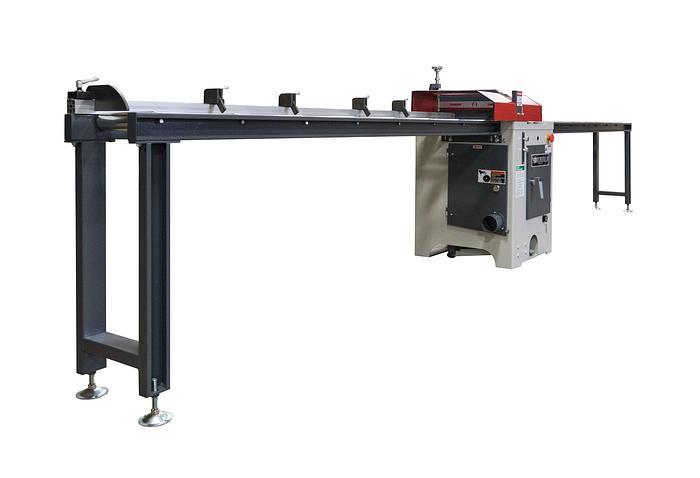

PRODUCT DIMENSION •   Max cutting capacity: 1'' x 13-1/2'',  2" x 12", 3" x 11", 4" x 10" FEATURES •  10HP motor, 3PH  230V with 24V magnetic controls •  18” 120T Carbide tipped blade included •  1” Saw arbor diameter •  Cycle operation:  Pneumatic •  Table size:  26” x  27.25” •  Quick access on front of the machine to adjust blade stroke. •   Dust requirements:  (1) 4" dust port requiring 450 CFM at point of extraction •   Net weight:   730 lbs. •   Gross weight:   890 lbs. •   Packing dimensions:  (L) 33" x (W) 33" x (H) 46" •   (1) Tool box and manual •   Warranty is one year parts •   All machines are tested stateside prior to shipment providing trouble free start up. OPTIONS • 8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops • 16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops • Custom infeed/outfeed rollers up to 40’ • 18" x 80T carbide tipped blade • 18” x 100T carbide tipped blade • 18” x 120T carbide tipped blade • (1) Gravity flip stop • 460V  3Ø electrics • Safety interlock for blade access • Double palm button actuation in place of foot pedal • Rigid stop

Specifications

ManufacturerNorthtech
ModelNT-UCS18L
ConditionNew
Stock NumberNT-UCS18L
MAIN MOTOR HP10 HP
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE3 Phase
AMP REQUIREMENT12/24 Amps
TOTAL MACHINE HP10 HP
APPROVED ELECTRICAL PARTSCE Approved Parts
DUAL VOLTAGE MOTORS230/460 Volt 60Hz
CONTROL VOLTAGE24 Volt
PASS-LINE34-1/4''
CUTTING ENVELOPE1/2'' x 12-3/4'', 1'' x 12-1/4'', 2'' x 11-3/4'', 4'' x 8-3/4'', 5'' x 6-1/4''
ARBOR RPM2560 RPM

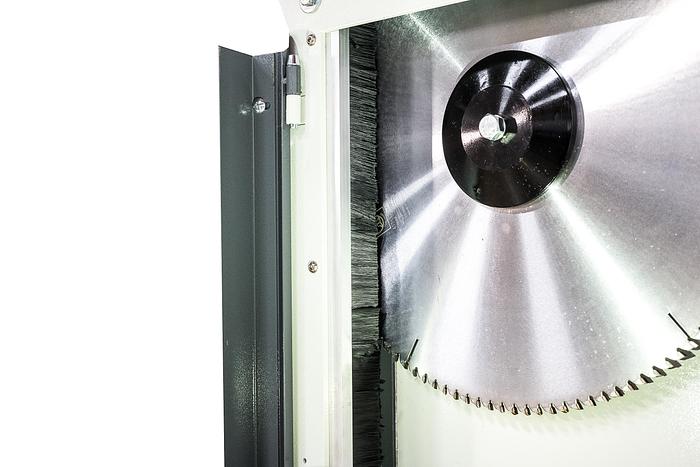

BLADE SIZE18'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE120 Tooth
TOOTH SPACING15/32''
BLADE KERF.435''

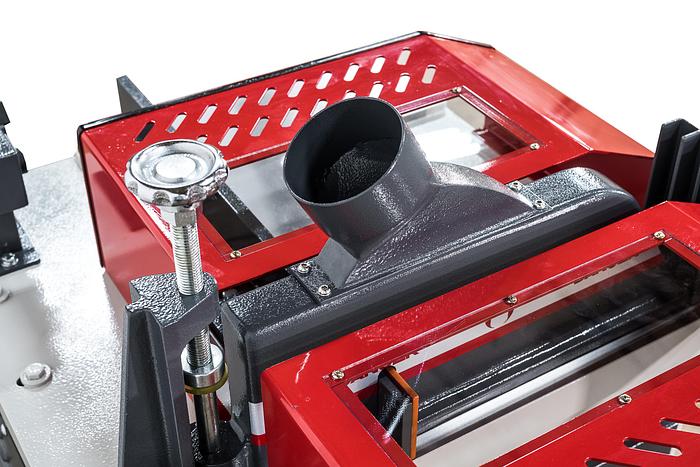

DUST COLLECTION REQUIREMENT4'' Port @ 450CFM Optional 2nd Top Port
ARBOR DIAMETER1''
CYCLES/MINUTE45 Cuts Per Minute Adjustable
HOLD DOWN STYLET Clamp
FLR INCLUDEDFilter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT1/4'' Line @ 90 PSI

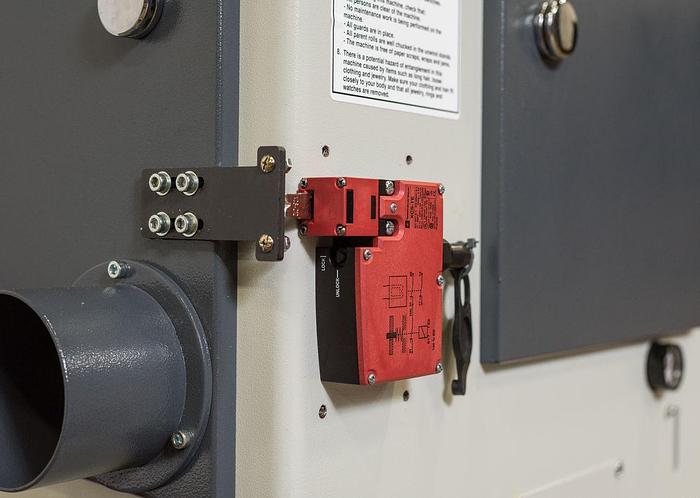

SAFETY FEATURESaw Blade Door Safety Interlock (Optional)
GUARDINGFull Guard with Clear View
OPERATION STYLEFoot Pedal Optional Dual Palm Button
FENCE TYPEFixed
FENCE DIMENSIONS3'' x 26''
FRAME CONSTRUCTIONSteel Construction
WORKTABLE DIMENSIONS26'' x 27-1/4''
TABLE CONSTRUCTION MATERIALCast Iron
DECIBEL RATING78 dB
NET WEIGHT730 Lbs.
GROSS WEIGHT890 Lbs.
MACHINE DIMENSIONS37'' x 30'' x 47''
PACKAGING DIMENSIONS40'' x 48'' x 55''
