Laguna Raised Panel Master 5

Laguna Raised Panel Master 5

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

Laguna is proud to introduce our latest Industrial Series machine, the Raised Panel Master. This machine is designed to allow a single operator to produce a complete cabinet door in less than 2 minutes. The single-piece welded steel frame provides the ultimate support for chatter-free work.

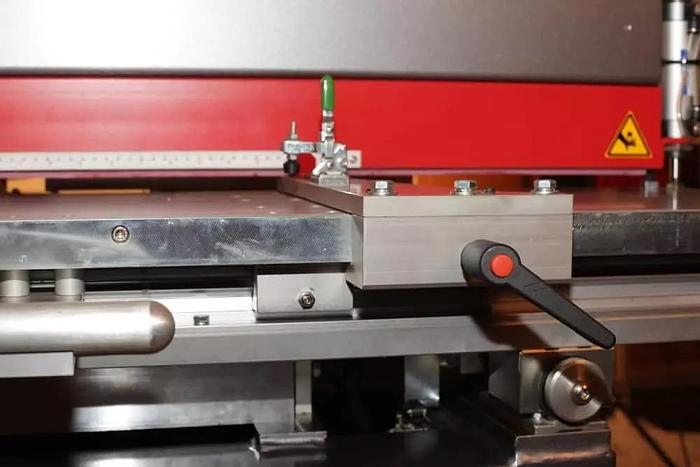

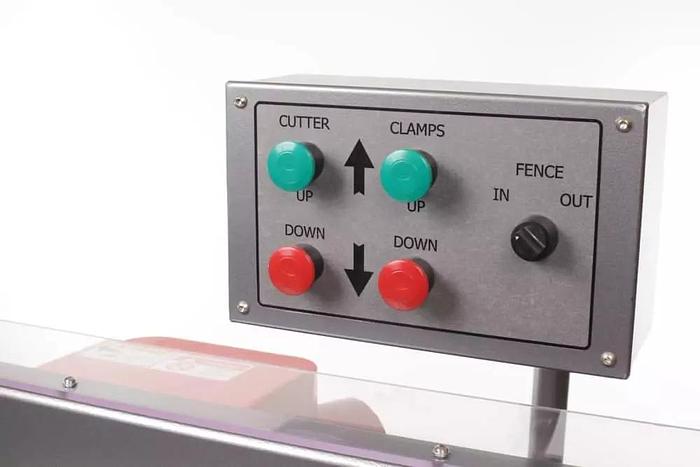

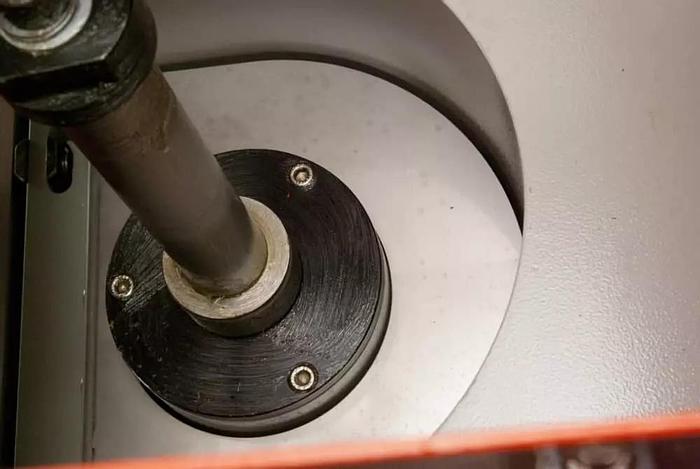

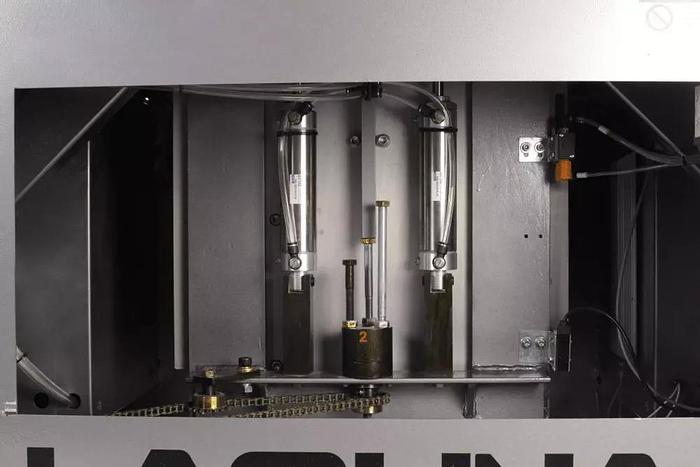

The heart of the machine is a shaper spindle which holds all three cutters needed to produce a door. The spindle is powered by a 10 HP motor for smooth cuts and is quickly positioned from the front of the machine with a dial. The turret system insures complete accuracy without test cuts and the pneumatically controlled spindle height is quickly set. The 2 axis sliding table rides on linear bearings in all directions and includes a pneumatic hold-down clamp for quick setup. The pneumatic EZ fence quickly positions stock for the next cut. A large diameter tracer bearing provides perfect control for straight and curved template following.


*Carbide insert tooling sold separately

Specifications

ManufacturerLaguna
ModelMDM2050-0148
ConditionNew
Stock NumberMDM2050-0148
Compressed Air Requirement90 PSI 1 CFM
Dust Port5″
Maximum Arch Height2 Standard
Maximum Material Thickness1-¼″
Maximum Arch Width24″
Weight1500 lbs
