Grizzly G0611X - 16-1/2" Extreme Series Dovetail Machine

Grizzly G0611X - 16-1/2" Extreme Series Dovetail Machine

$3,995 (USD)

Dundee, NY

orCall +1 (607) 243-7167

Description

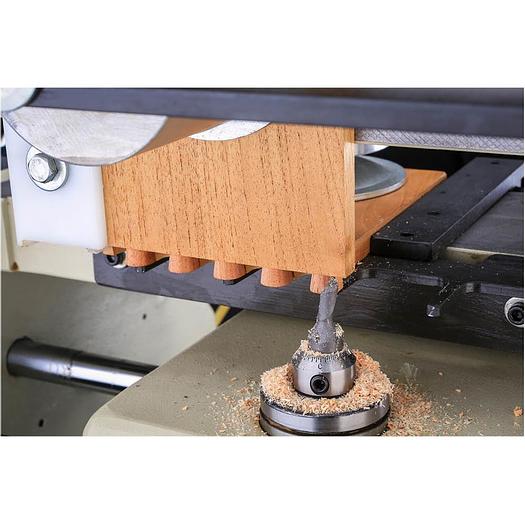

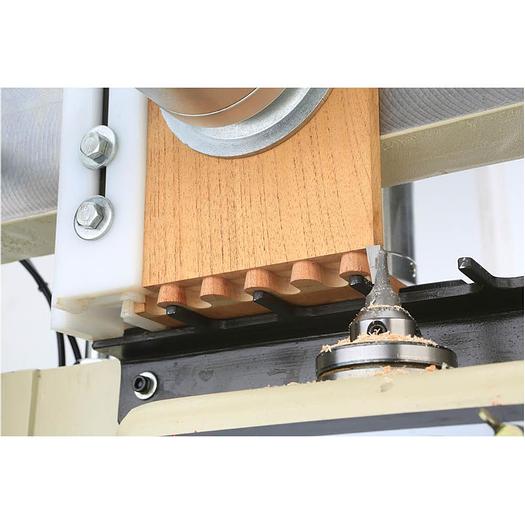

Our dovetail machines make it fast and easy to produce strong and attractive half-blind dovetail joints. Each machine is outfitted with stops and clamps, so you can quickly insert pre-cut boards, clamp them in place, and start cutting. With the ability to cut two joints at a time, these dovetail machines can produce a 4-sided drawer in under two minutes if the boards are prepared properly. Includes a 4-sided template for cutting 1", 1-1/2", 2", and 2-1/2" dovetails. Also spindle heads are micro-adjustable to give you complete control of dovetail "fit." If you're currently doing production dovetails with a dovetail jig, our dovetail machine will quickly pay for itself!

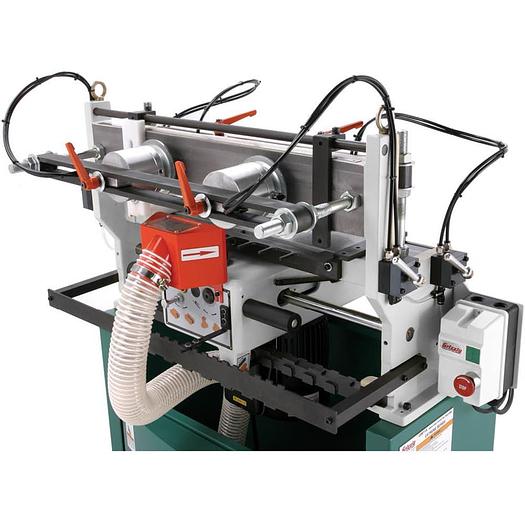

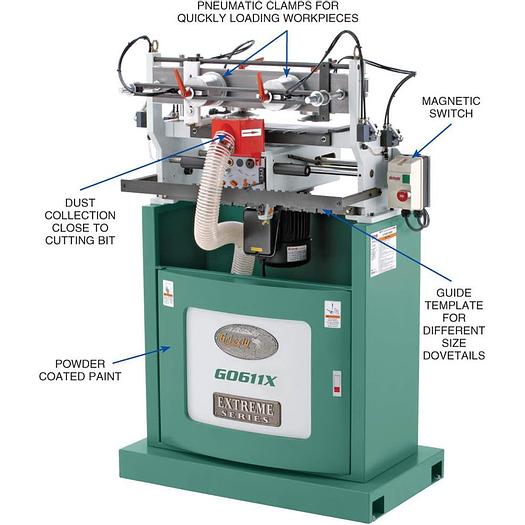

Features:

Precision-milled cast iron table frame

Cast aluminum carriage

Steel stand

Hardened and ground chrome steel slide ways

Ball-bearing linear guides

Four-way dovetail template

Micro-adjustable spindle head

Workpiece stops

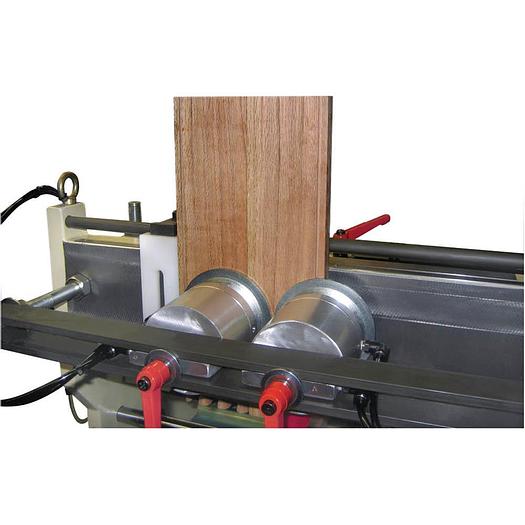

Quick air-cylinder clamp, air filter/regulator/lubricator with pressure gauge

4" dust port

Spring-loaded carriage for smooth operation

Magnetic switch with thermal overload protection


Specifications:

Motor: 1 HP, 110V/220V, single-phase, prewired 220V

Table size: 24" x 7-3/4"

Floor to table height: 46-7/16"

Number of spindles: 1

Spindle speed: 18,500 RPM

Dovetail bit: 10° angle x 5/8" long

Dovetail shank: 12mm

Maximum dovetail height: 3/4"

Minimum dovetail height: 3/16"

Maximum thickness: 2-3/8"

Minimum thickness: 13/32"

Maximum stock size: 59" long x 16-1/2" wide

Minimum stock size: 7-7/8" long x 2-3/8" wide

Overall size: 38-5/8" wide x 56-7/8" high x 26-1/2" deep

Approximate shipping weight: 539 lbs

Specifications

ManufacturerGrizzly
ModelG0611X
ConditionNew
Stock NumberG0611X
