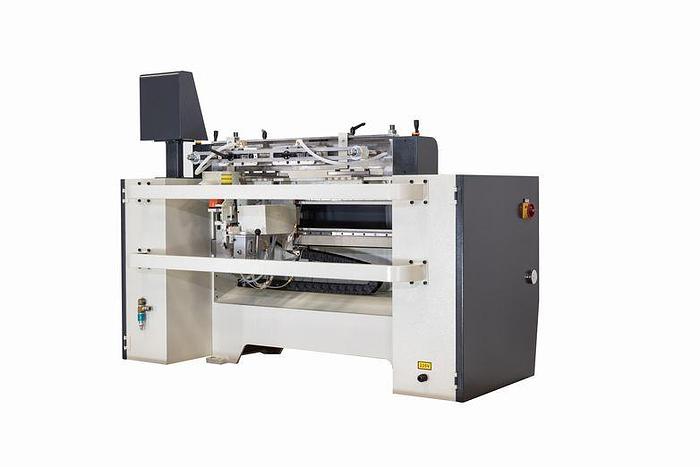

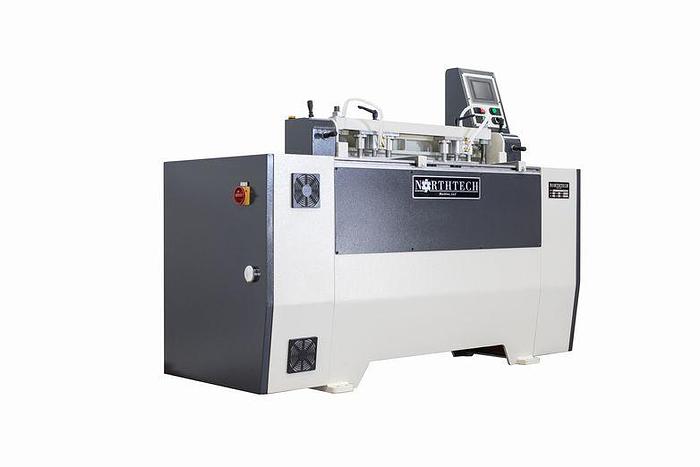

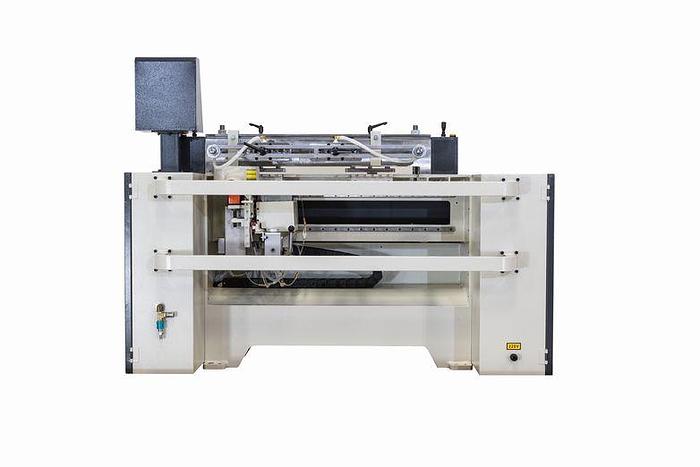

Northtech, NT DTM-700CNC Dovetail Machine

Northtech, NT DTM-700CNC Dovetail Machine

Contact us for price

Dundee, NY

orCall (607)243-7167

Description

NT DTM-700CNC DOVETAILER • 3HP 24,000 RPM spindle • Mortise and tenon can be easily adjusted separately • 95 FPM acceleration • Bit sharpening compensation adjustments via PLC control, versus tenon adjustments • Maximum processing width 23-1/2" • Automatic error detection and display • Net weight: 1,226 lbs. • Gross weight: 1,316 lbs. • Machine dimensions: (L) 72" x (W) 34" x (H) 54-1/2" • Packing dimensions: (L) 79" x (W) 41" x (H) 58" • (1) Tool box • Warranty is one year parts • All machines are tested stateside prior to shipment providing trouble free start up.


Specifications

ManufacturerNorthtech
ModelNT DTM-700CNC
ConditionNew
Stock NumberNT DTM-700CNC
MAIN MOTOR HP3 HP
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE3 Phase
AMP REQUIREMENT4.3 / 9.6 Amp
SPINDLE DIAMETER12 MM Collet
SPINDLE RPM24000 RPM
APPROVED ELECTRICAL PARTSCE Approved Components
CONTROL VOLTAGE24 Volt

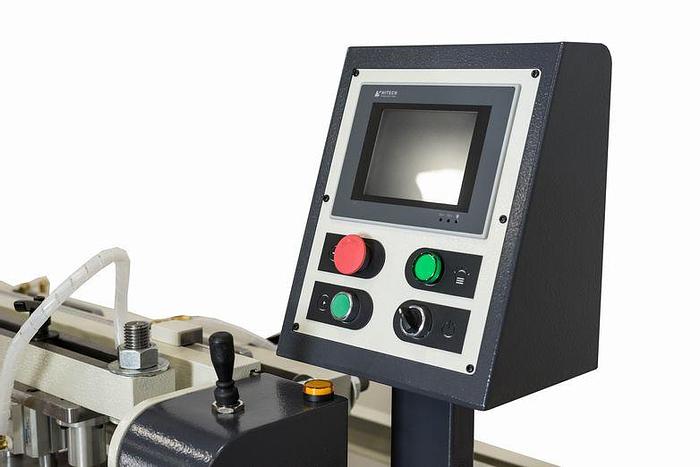

TOUCH SCREEN5-1/2'' Touch Screen
PASS-LINE34-3/4''
MIN. WORKING LENGTH3.93'' (100 mm)
MIN. WORKING WIDTH1.77'' (45 mm)
MAX. WORKING WIDTH23.62'' (600 mm)
MIN. WORKING THICKNESS0.35'' (9 mm)
MAX. WORKING THICKNESS0.98'' (25 mm)
MAX DEPTH MORTISE.554''
MAX WIDTH MORTISE.540''
CUTTER HEAD RPM24000 Adjustable
TOOLING2 Wing Dovetail Bit
DUST PORT SIZE OUTLET(1) 3'' Port
HOLD DOWN STYLEPneumatic Clamp
TOTAL CLAMPS(4) Clamps
FLR INCLUDEDFilter, Lubricator, Regulator
EMERGENCY STOPPush Button
OPERATION STYLETouch Screen Control

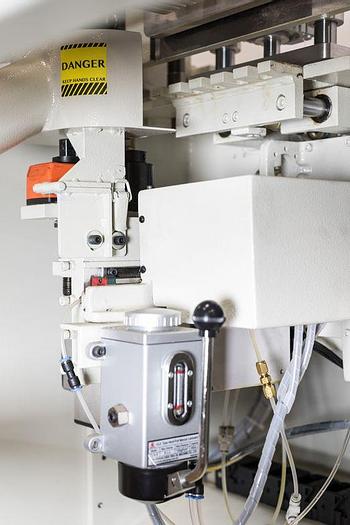

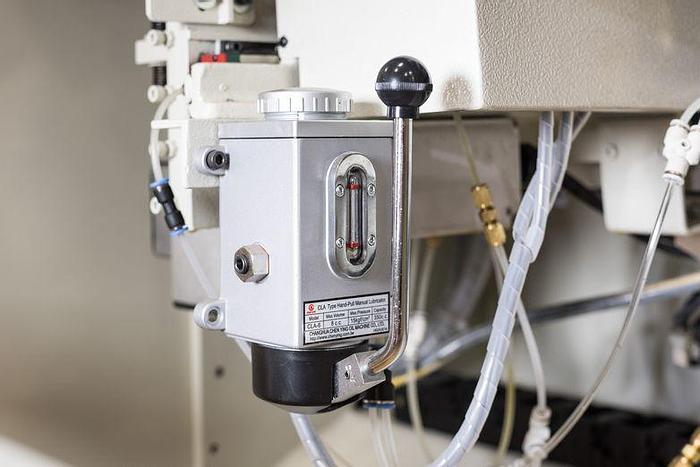

OILERManual Oiler
FENCE TYPEAdjustable
FRAME CONSTRUCTIONSteel Construction
WORKTABLE DIMENSIONS16'' x 34''
DECIBEL RATING75 dB
NET WEIGHT1226 Lbs.
GROSS WEIGHT1316 Lbs.
