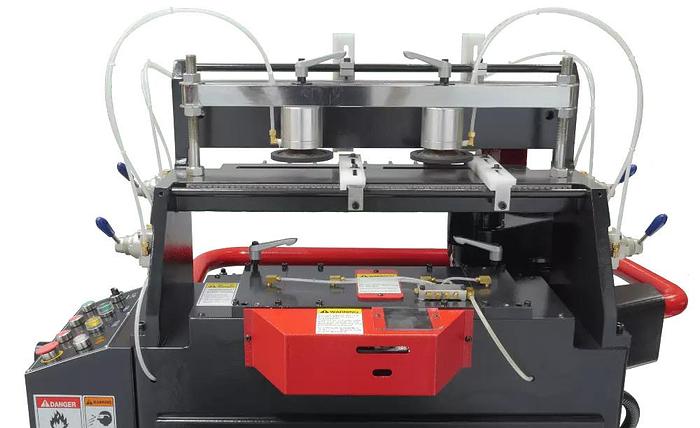

Laguna, DT18 Dovetail Machine

Laguna, DT18 Dovetail Machine

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

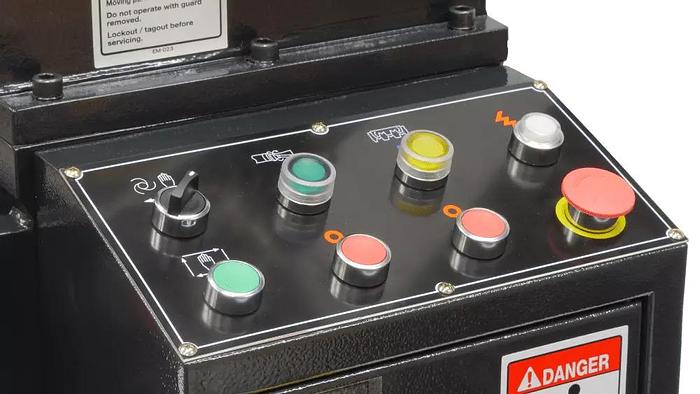

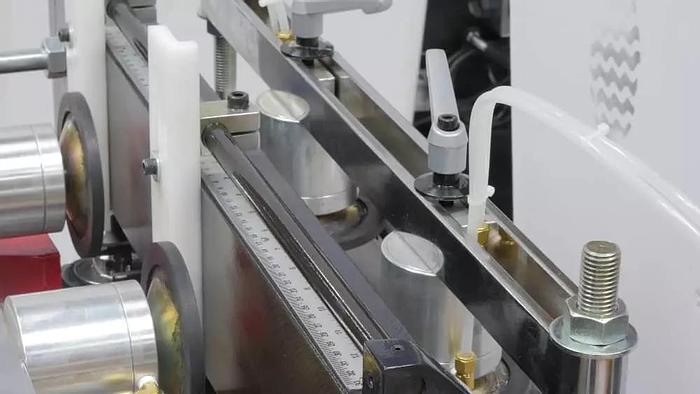

The Laguna DT18 Dovetail machine creates perfect dovetail joints effortlessly at a production rate of approximately 40-50 boxes per hour. Dovetail joints are widely recognized as one of the strongest and most durable joints in woodworking and add value to users’ cabinet jobs. This machine cuts the pins and tails separately or at the same time to speed up production. Individual pneumatic clamps allow users to cut two joints in one pass or to work on wide panels for furniture. The collet chuck makes bit changes fast and easy and increases cutter life. Adjustments are read on individual scales for quick, repeatable setups. The centralized control panel makes the operation easy and automatic; the operator just needs to load the parts and start. This machine is assured to increase your profits and productivity.


Specifications

ManufacturerLaguna
ModelDT18
ConditionNew
Stock NumberMDT182203
Maximum Work-Piece59″ x 16″
Pneumatic Clamps4 With Individual Controls
Spindle Speed21,500 RPM
Motor2HP 220V 3-Phase
Base Size42″ x 22″
Machine Size56″ x 36″
Dust Port4″
Air Pressure Requirement71 psi
Thickness of Tenon1/8″ – 2-23/64″
Width of Tenon15/64″ – 23/32″
Depth of Tenon25/64″ – 1-3/16″
Cutter Bit Vertical Adj.1-3/16″
Weight1,320 lbs
Packaging Dimensions60″ x 50″ x 50″
