Northtech, NT-DC50 3500CFM 5HP Dust Collector

or
Call +1 (607) 678-4374
Description

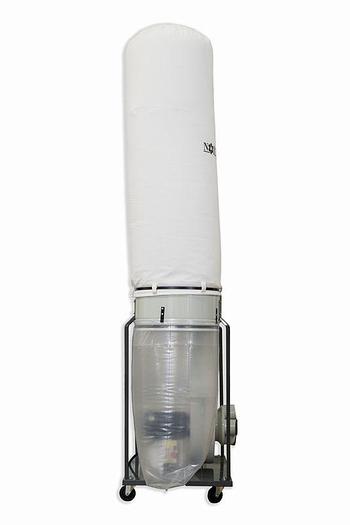

The NT DC50 is a strong portable dust collector with a double top filter bag and double bottom collection bag design. This is a rugged portable model with a stamped steel housing, double center cyclone separator and steel base with (4) casters. Often used as a single machine collector it can be fitted to collect from multiple machines. The double bottom collection bags and double oversized upper filter bag are a unique to Northtech dust collectors, providing a higher cloth to air ratio when compared to competitive models.
Specifications
| Manufacturer | Northtech |
| Model | NT-DC50 |
| Condition | New |
| Stock Number | NT-DC50 |
| MAIN MOTOR HP | 5 HP |
| DIRECT DRIVE (MOTOR) | Direct Drive Motor |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 7.5 / 15 Amp |
| TOTAL MACHINE HP | 5 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220 Volt |

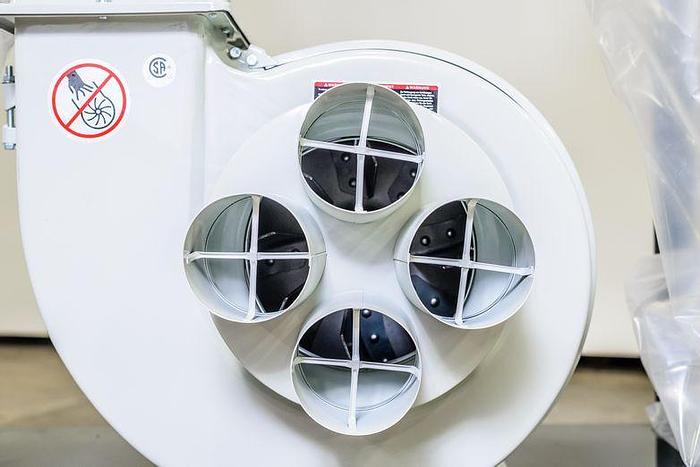

| DUST PORT SIZE INLET | (4) 4'' (1) 8'' |
| DUST PORT SIZE OUTLET | 7'' x 7'' |
| FREE AIR CFM | 3500 CFM |
| IMPELLER | 3-1/2'' x 13-1/2'' |
| FRAME CONSTRUCTION | Steel Construction |
| MOBILE UNIT | (4) Caster Wheels |
| UPPER BAGS | 31'' x 59'' |
| LOWER BAGS | 31'' x 46'' |
| DECIBEL RATING | 94 dB |
| NET WEIGHT | 200 Lbs. |
| GROSS WEIGHT | 250 Lbs. |
| MACHINE DIMENSIONS | 60'' x 30'' x 113'' |
| PACKAGING DIMENSIONS | 40'' x 48'' x 29'' |
