Launa, C|Flux: 1 Cyclone Dust Collector

Launa, C|Flux: 1 Cyclone Dust Collector

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The c|flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions has been reevaluated to optimize performance.

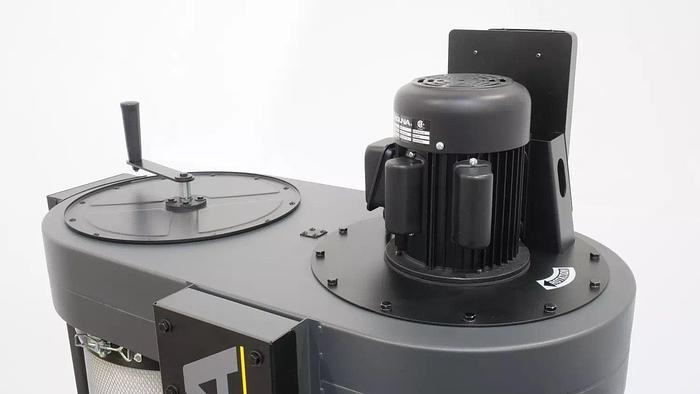

The c|flux:1 comes standard with a 1-micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2-micron & features 48 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard. The c|flux series can be equipped with an optional auto clean kit either at time of purchase or as an add-on later. The auto-clean kit includes a smart sensor that detects a rise in static pressure indicating the filter is getting clogged and automatically activates the cleaning procedure.

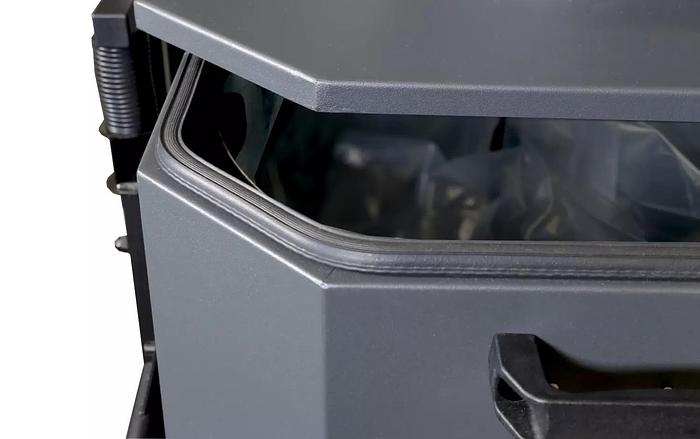

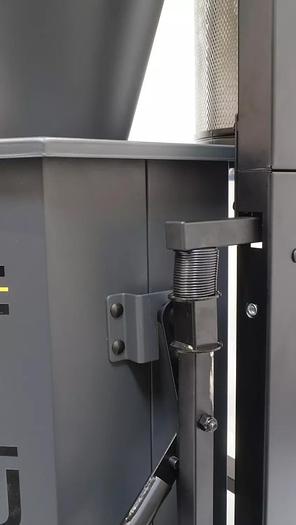

The ingenious lift system quickly moves the drum off the floor and seals it against the drum lid, avoiding the need for a flex hose. This design allows for much better portability as you are not forcing 4 wheels into the floor while pushing the unit.

Specifications

ManufacturerLaguna
ModelC|Flux: 1
ConditionNew
Stock NumberMDCCF15110

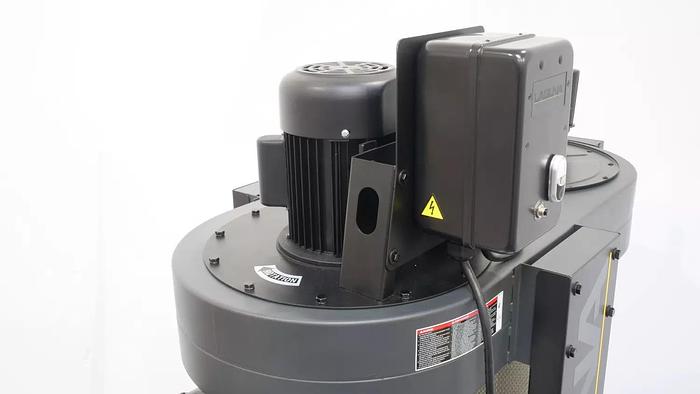

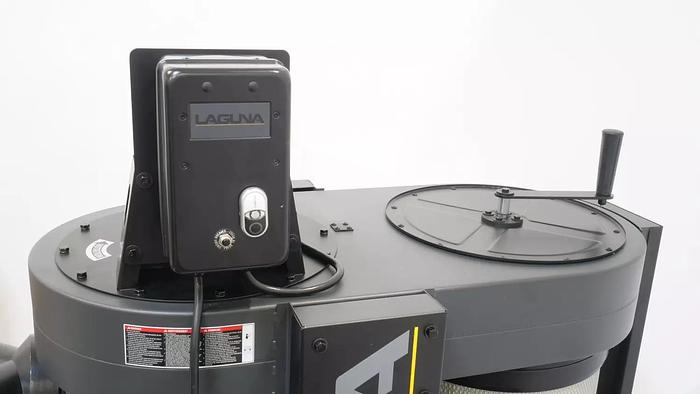

Motor Specs1.5HP
Electrical Specs110V/220V / 60Hz / 1PH / 3450 RPM
Running AMP(with 6″ inlet) 18.8A at 110V; 9.4A at 220V
Maximum Air Flow1314 CFM (Cubic Feet Per Minute)
Shop Setting Air Flow*900CFM
Max Static Pressure10.1″
Fan Size13.5″
InletOne 6″ or Two 4″ Ports

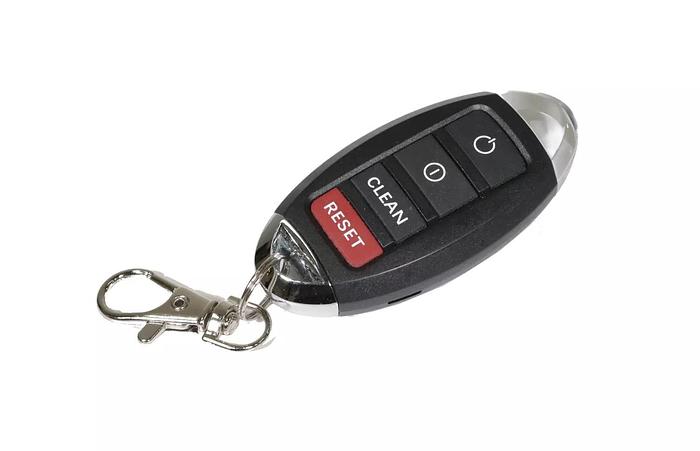

Remote ControlHigh Frequency
Collection Capacity25 Gallon Octagon Drum
Decibel Reading82 dB (@9.8ft)
Assembled Dimensions (L x W x H)42″ x 25″ x 68″
Packing Size (L x W x H)45″ x 28.3″ x 47″ (114.5 x 72 x 119.5 cm)
Machine Weight232 lbs. (105 kg)
Shipping Weight287 lbs. (130 kg)
Filtering Area48.4 sq/ft (4.5 sq/m)
Cartridge Filter1 Micron, 15.74″ x 19.68″ (40 x 50 cm) x 1pc
