Northtech, NT-DC005, 7.5HP 4500 CFM Dust Collector

Northtech, NT-DC005, 7.5HP 4500 CFM Dust Collector
Contact us for price
Location:Dundee, NY
or
Call +1 (607) 678-4374
Description

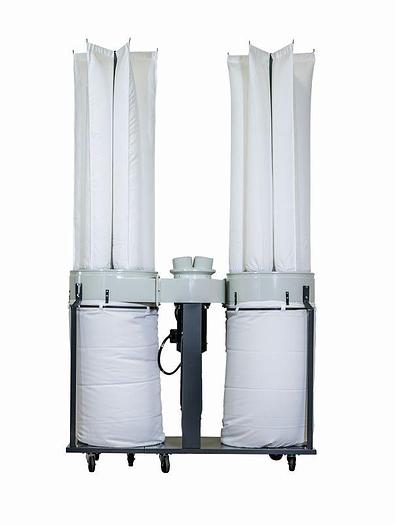

The NT DC005 is a strong 7.5hp unit with (12) top filter bags and double bottom collection bag design. This is a heavy duty portable model with a stamped steel housing, double center cyclone separator and steel base with (5) casters. Often used as a multiple machine collector, it has the capability of collecting off of larger dust production machines. The double bottom collection bags and high cloth to air ratio upper filter bags provide a step up to standard portable unit design.
Specifications
| Manufacturer | Northtech |
| Model | NT-DC005 |
| Condition | New |
| Stock Number | NT-DC005 |

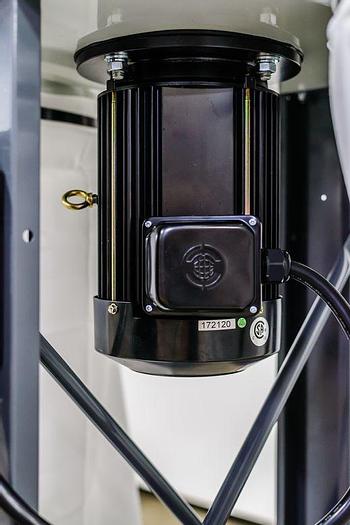

| MAIN MOTOR HP | 7.5 HP |
| DIRECT DRIVE (MOTOR) | Direct Drive Motor |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 11 / 22 Amps |
| TOTAL MACHINE HP | 7.5 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220 Volt |
| DUST PORT SIZE INLET | (4) 5'' or (1) 10'' |
| DUST PORT SIZE OUTLET | (2) 5'' x 6'' |
| FREE AIR CFM | 4500 CFM |

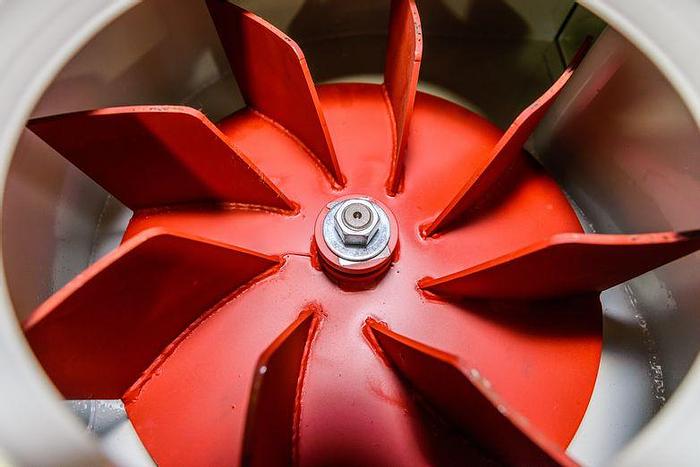

| IMPELLER | 4'' x 14'' |
| FRAME CONSTRUCTION | Steel Construction |
| MOBILE UNIT | (7) Caster Wheels |

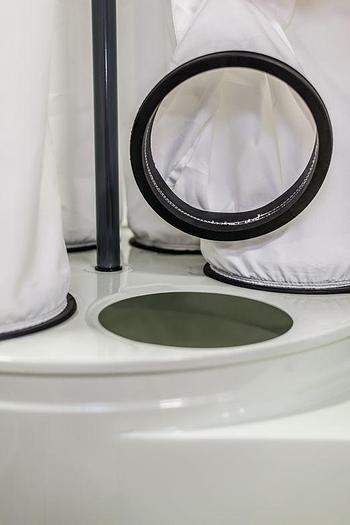

| UPPER BAGS | 6'' x 59'' |
| LOWER BAGS | 39'' x 46'' |
| DECIBEL RATING | 90 dB |
| NET WEIGHT | 280 Lbs. |
| GROSS WEIGHT | 350 Lbs. |
| MACHINE DIMENSIONS | 65'' x 24'' x 113'' |
| PACKAGING DIMENSIONS | 40'' x 48'' x 36'' |
