Northtech, NT-DC30 3HP Dust Collector

Northtech, NT-DC30 3HP Dust Collector

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

NT-DC30 DUST COLLECTOR

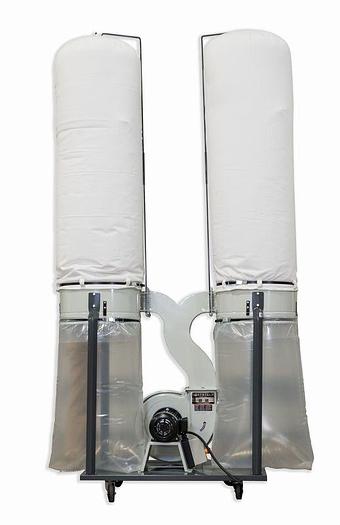

The NT DC30 is the smallest dust collector Northtech offers with a double top filter bag and double bottom collection bag design. This is a rugged portable model with a stamped steel housing, double center cyclone separator and steel base with (4) casters. Often used as a single machine collector it can be fitted to collect from multiple small machines. The double bottom collection bags and double oversized upper filter bag are unique to Northtech dust collectors, providing a higher cloth to air ratio when compared to competitive models.


Specifications

ManufacturerNorthtech
ModelNT-DC30
ConditionNew
MAIN MOTOR HP3 HP

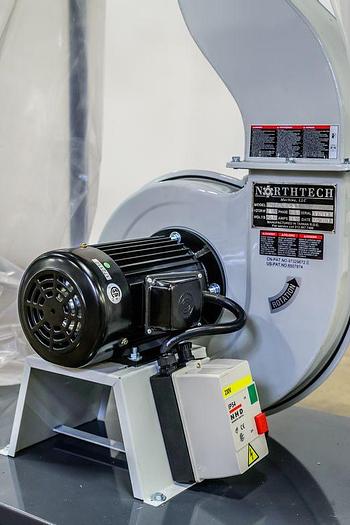

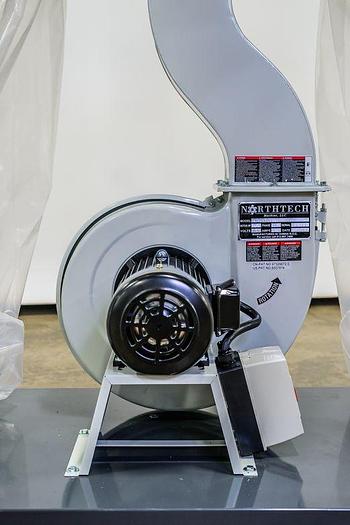

DIRECT DRIVE (MOTOR)Direct Drive Motor
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE1 Phase / 3 Phase
AMP REQUIREMENT1 Phase 17 Amps, 230V 3 Phase 9.6 Amps, 460V 3 Phase 4.8 Amps
TOTAL MACHINE HP3 HP
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS3 Phase 230/460 Volt
CONTROL VOLTAGE220 Volt

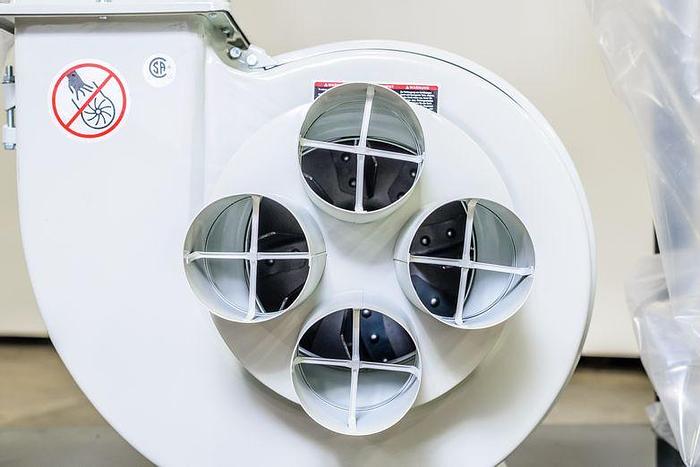

DUST PORT SIZE INLET(4) 4'' or (1) 8'' Inlet
DUST PORT SIZE OUTLET7'' x 7'' Square
FREE AIR CFM3100 CFM

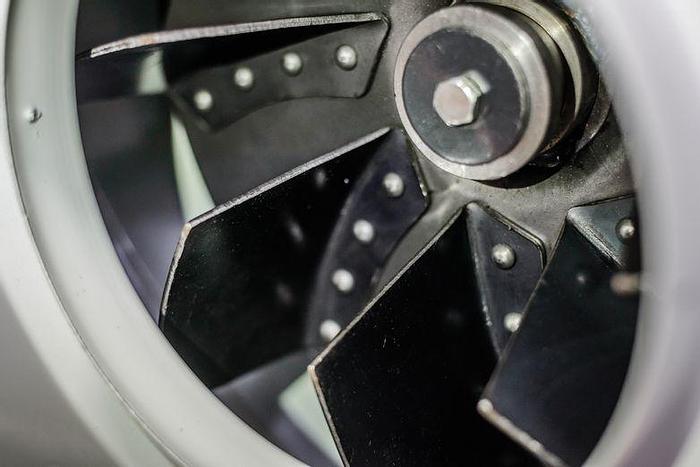

IMPELLER3'' x 13-1/2'' Impeller
FRAME CONSTRUCTIONSteel Construction
MOBILE UNIT(4) Casters
UPPER BAGS31'' x 59''
LOWER BAGS31'' x 46''
DECIBEL RATING93 dB
NET WEIGHT187 Lbs.
GROSS WEIGHT250 Lbs.
MACHINE DIMENSIONS60'' x 29'' x 114''
PACKAGING DIMENSIONS40'' x 48'' x 29''
