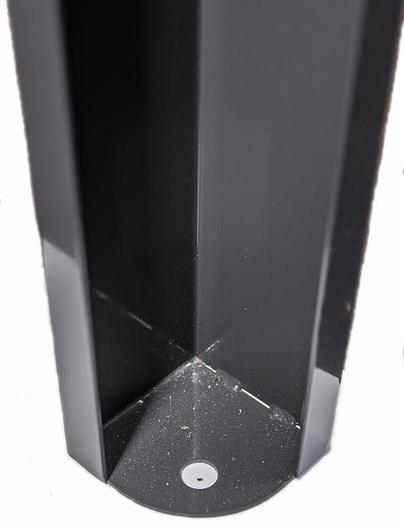

Northtech NT-2ST10XL Cyclone Dust Collector

Northtech NT-2ST10XL Cyclone Dust Collector

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

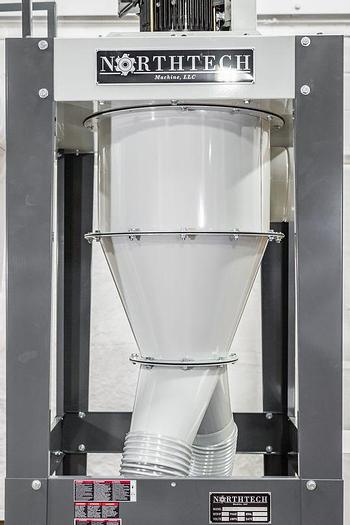

The NT 2ST-10XL is our 10HP fan with a primary cyclone filter. Cyclone style dust collectors use the speed of the air and the physics of centrifugal force to separate dust from the air. The natural cyclonic air flow allows clean air to pass through the center of the cyclone into the blower and through the secondary filter bags. A clean air mounted blower and steel cyclone design provides decades of dust separation without primary filter bags. The 2ST-10 cyclone and filter bag are supported by a steel frame structure that allows for the use of standard barrels for waste collection or connection to a rotary air lock.


Specifications

ManufacturerNorthtech
ModelNT-2ST10XL
ConditionNew
Stock NumberNT-2ST10XL
MACHINE HP10 HP

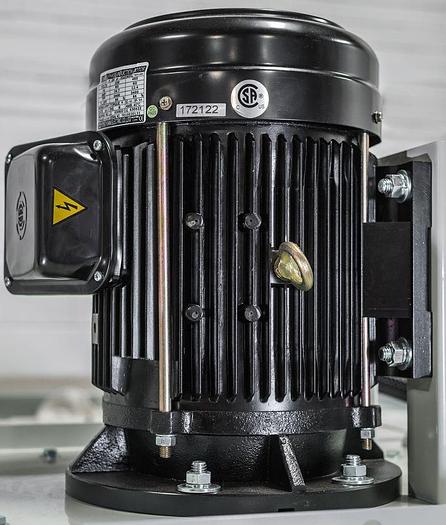

DIRECT DRIVE (MOTOR)Direct Drive Motor
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE3 Phase
AMP REQUIREMENT14 / 28 Amp
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt

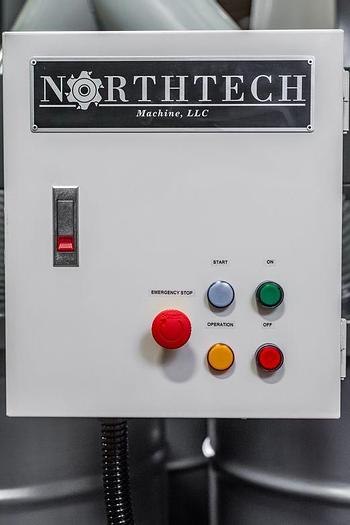

CONTROL VOLTAGE220 Volt

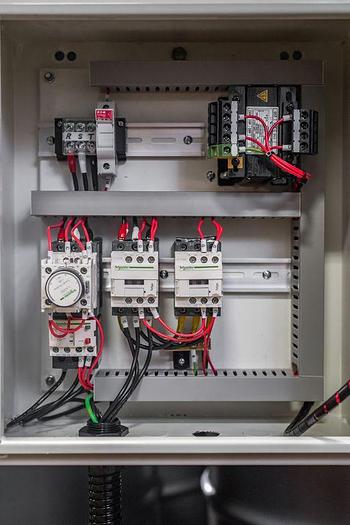

ASSISTED STARTWye Delta

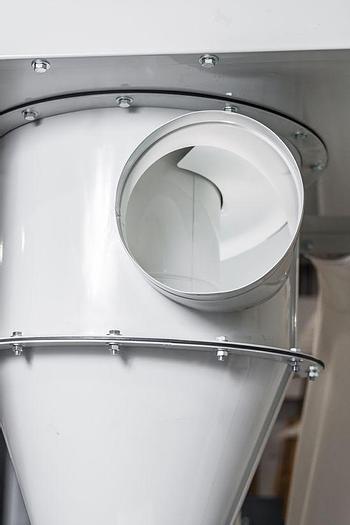

DUST PORT SIZE INLET(1) 9'' Inlet
FREE AIR CFM5400 CFM

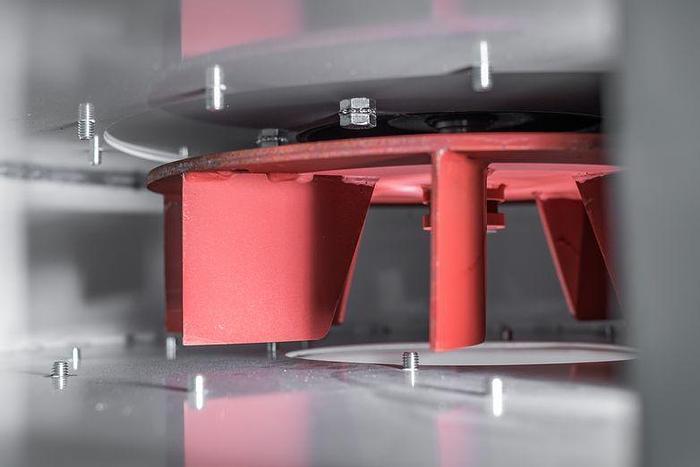

IMPELLER17''
FRAME CONSTRUCTIONSteel Construction
UPPER BAGS39'' x 70''
CYCLONE DIAMETER20'' I.D.

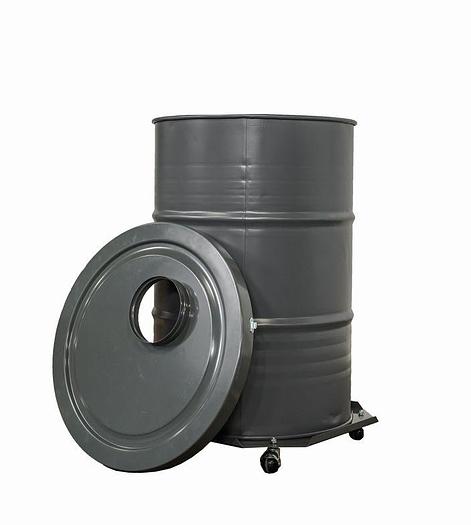

NO. OF BARREL DOLLIES(4) Barrel Dollies
NO. OF BARRELS(4) Barrels (Not Included)
DECIBEL RATING94 dB
NET WEIGHT668 Lbs.
GROSS WEIGHT718 Lbs.
MACHINE DIMENSIONS 56'' x 45'' x 107''
PACKAGING DIMENSIONS72'' x 40'' x 31''
