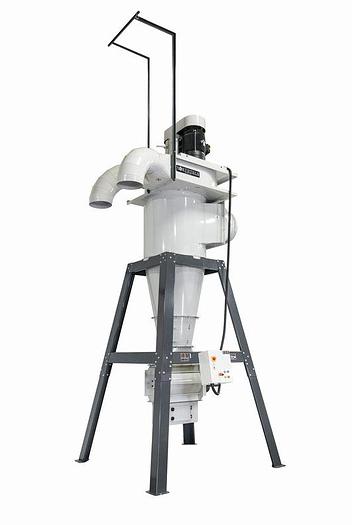

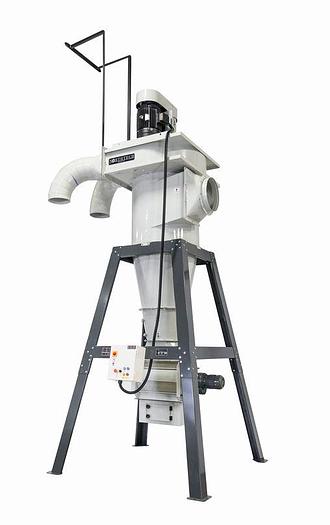

Northtech NT-2ST20XL-RAL 20HP Cyclone Dust Collector (w/ Rotary Air Lock)

Northtech NT-2ST20XL-RAL 20HP Cyclone Dust Collector (w/ Rotary Air Lock)

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

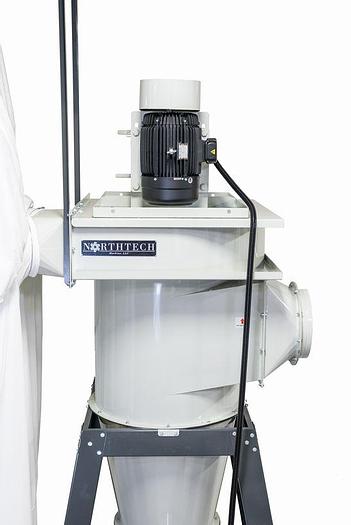

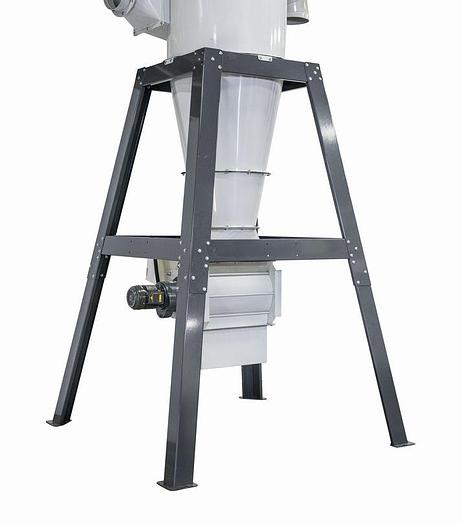

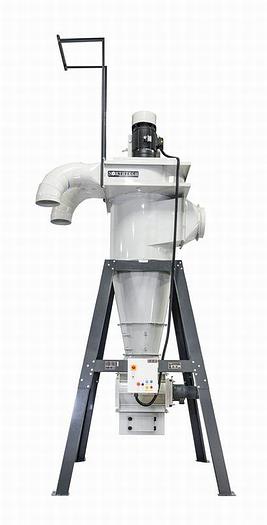

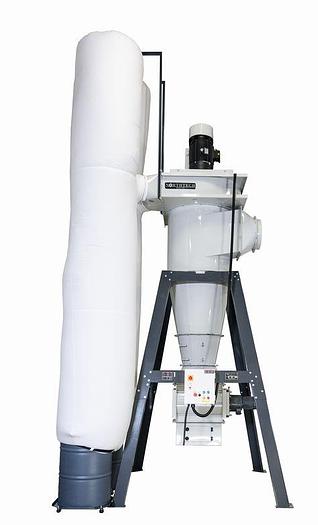

The NT 2ST-20XL-RAL is our 20HP fan with a primary cyclone filter with a rotary air lock. Cyclone style dust collectors use the speed of the air and the physics of centrifugal force to separate dust from the air. The natural cyclonic air flow allows clean air to pass through the center of the cyclone into the blower and through the secondary filter bags. A clean air mounted blower and steel cyclone design provides decades of dust separation without primary filter bags. The 2ST-20XL-RAL cyclone and filter bag are supported by a steel frame structure that allows for the use of standard barrels and a secondary waste system such as an auger or transfer blower.

Specifications

ManufacturerNorthtech
ModelNT-2ST20XL-RAL
ConditionNew
Stock NumberNT-2ST20XL-RAL

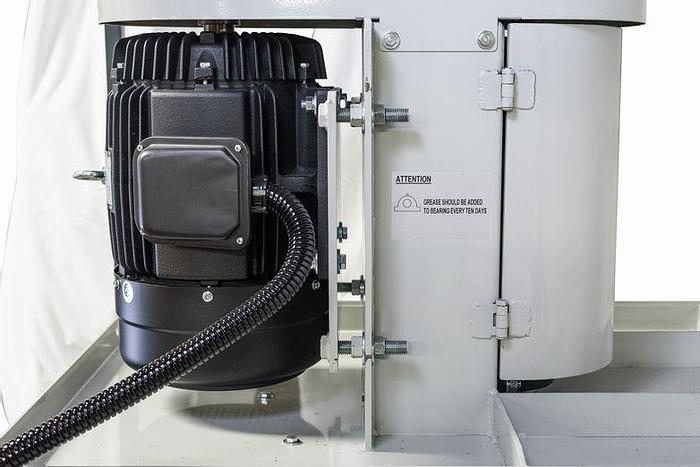

Main Motor Hp.20 hp.
Machine Hp.21 hp.
Phase3 Phase
Amp Requirement50/25 Amps
ElectronicsCE Approved Components
Dual Voltage230/460 Volt

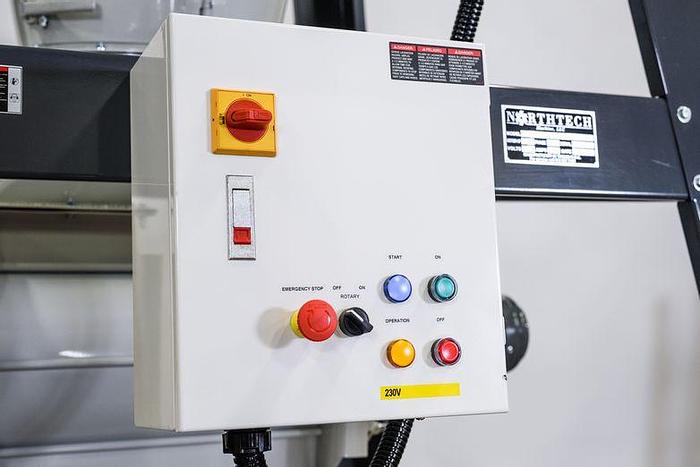

Control Voltage220V Control Voltage

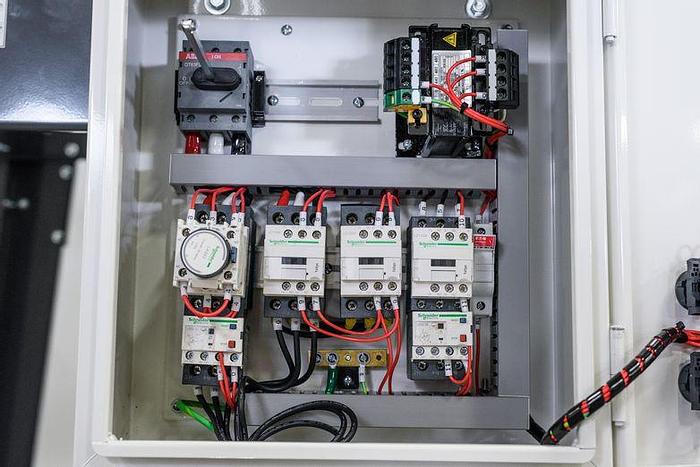

Assisted StartWye-Delta

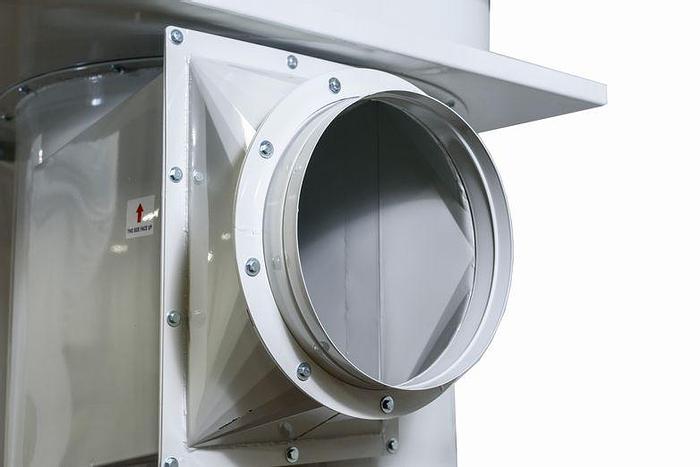

Dust Port In16” Inlet

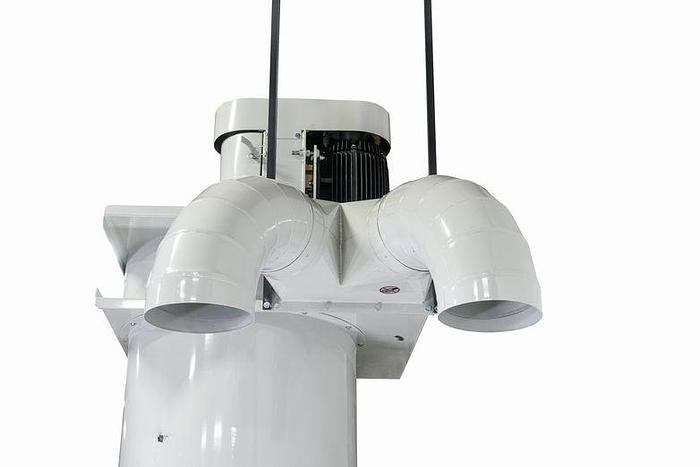

Dust Port Out(2) 12” Top Outlets
Free Air CFM8200 CFM

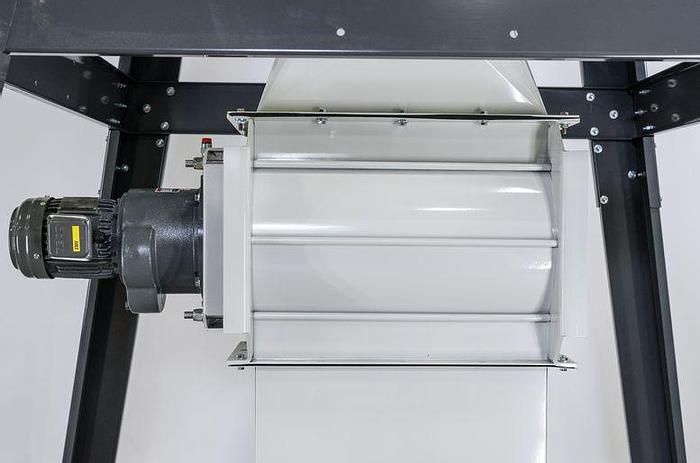

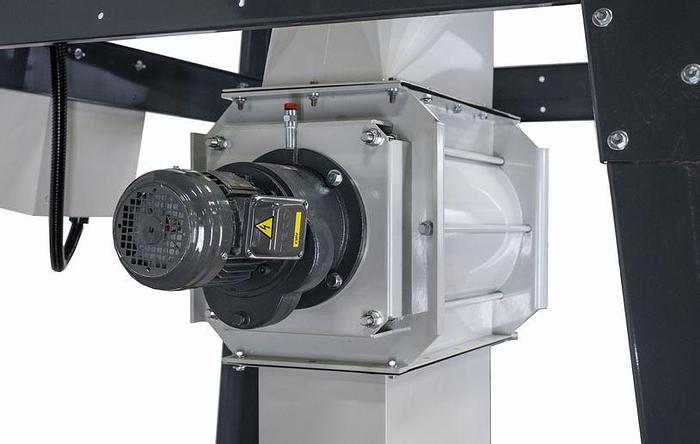

R.A.L. Hp.1 Hp. Direct Drive
R.A.L. Size10” x 24”
Impeller26” Steel Impeller
Frame Const.1/8” Steel Construction
Upper Bags12” x 31-1/2” x 224-1/2”
Cyclone Diam.35” I.D.
No. of Barrels2 Barrels (Not Included)
No. of Dollies2 Dollies
Decible Rating90 dB
Net Weight2180 Lbs. W/ RAL
Gross Weight2370 Lbs.
Machine Dimensions102” x 82” x 222”
Packaging Dimensions91” x 48” x 76”
