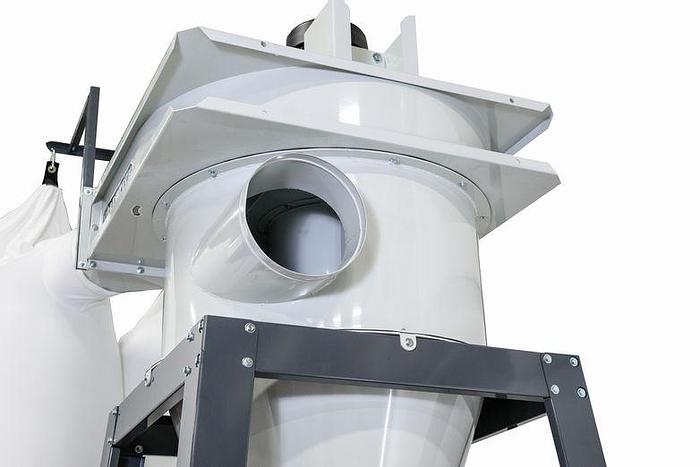

Northtech NT-2ST15XL 15HP Cyclone Dust Collector

Northtech NT-2ST15XL 15HP Cyclone Dust Collector

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

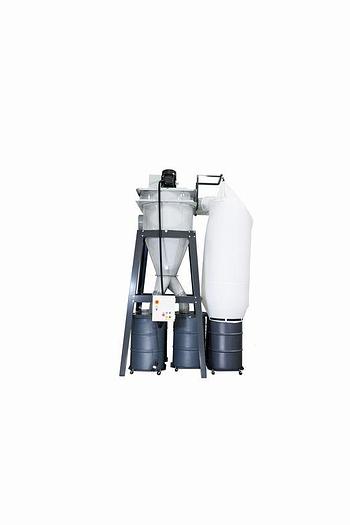

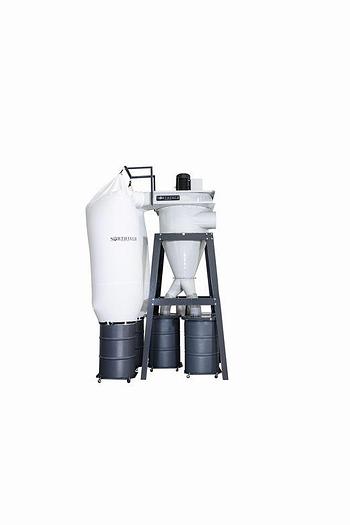

The NT 2ST-15XL is our 15HP fan with a primary cyclone filter. Cyclone style dust collectors use the speed of the air and the physics of centrifugal force to separate dust from the air. The natural cyclonic airflow allows clean air to pass through the center of the cyclone into the blower and through the secondary filter bags. A clean air mounted blower and steel cyclone design provides decades of dust separation without primary filter bags. The 2ST-15 cyclone and filter bag are supported by a steel frame structure that allows for the use of standard barrels for waste collection or connection to a rotary air lock.


Specifications

ManufacturerNorthtech
ModelNT-2ST15XL
ConditionNew
Stock NumberNT-2ST15XL
Main Motor Hp.15 hp.
Voltage/ Freq.230/460 Volt 60Hz
Phase3 Phase
Amp Requirement18/36 Amps
ElectronicsCE Approved Components
Dual Voltage230/460 Volt
Control Voltage220V Control Voltage

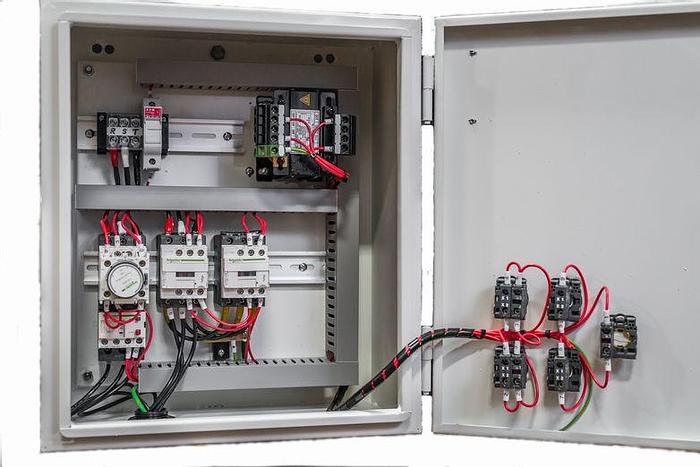

Assisted StartWye-Delta

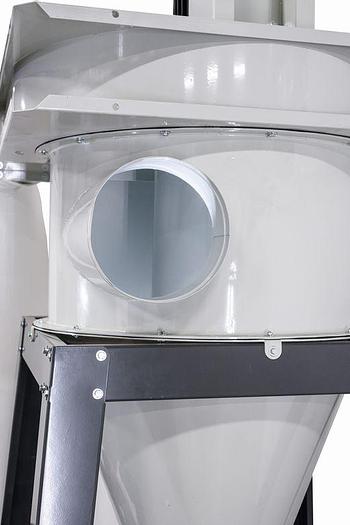

Dust Port In12” Inlet

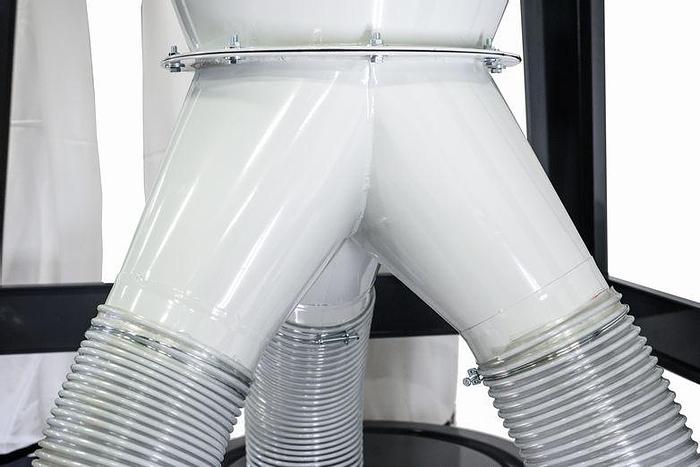

Dust Port Out(3) 7” Bottom (2) 10” Top
Free Air CFM6200 CFM
Impeller25” Steel Impeller
Frame Const.1/8” Steel Construction

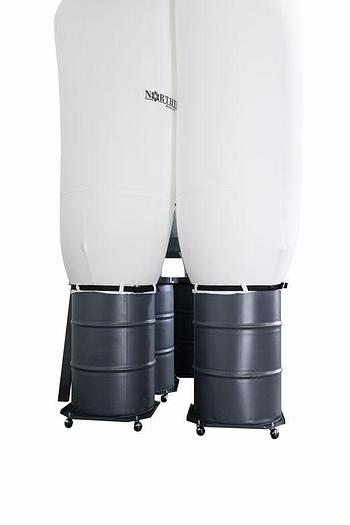

Upper Bags10” X 24” X 90.5”
Cyclone Diam.35” I.D.

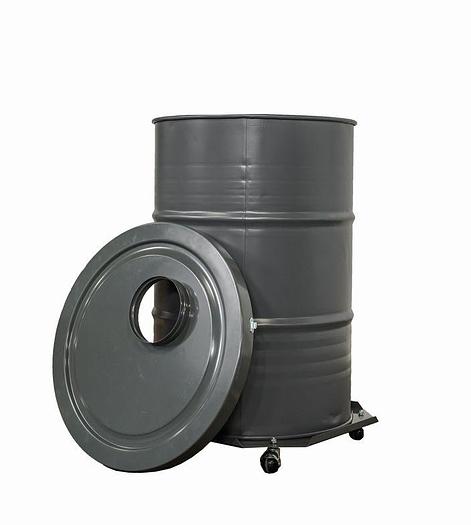

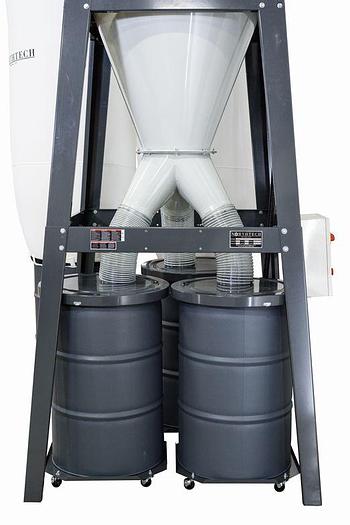

No. of Barrels5 Barrels (Not Included)
No. of Dollies5 Barrel Dollies
Decible Rating89 dB
Net Weight1000 Lbs.
Gross Weight1165 Lbs.
Machine Dimensions80” x 61” x 138”
Packaging Dimensions51” x 48” x 73”
