Laguna, C|Flux: 3 Cyclone Dust Collector

Laguna, C|Flux: 3 Cyclone Dust Collector

Contact us for price

Dundee, NY

orCall +1 (607) 678-4374


The c|flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions has been reevaluated to optimize performance. The c|flux:3 comes standard with a 1 micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2 micron & features 109 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard. The c|flux series can be equipped with an optional auto clean kit either at time of purchase or as an add-on later. The auto clean kit includes a smart sensor that detects a rise in static pressure indicating the filter is getting clogged and automatically activates the cleaning procedure. Ingenious lift system quickly moves the drum off the floor and seals against the drum lid, avoiding the need for a flex hose. This design allows for much better portability as you are not forcing 4 wheels into the floor while pushing the unit.

Plug: No

RPM: 3450

Switch Type: Radio Frequency Remote Switch – Black Box

Hand Held Remote Control: High Frequency

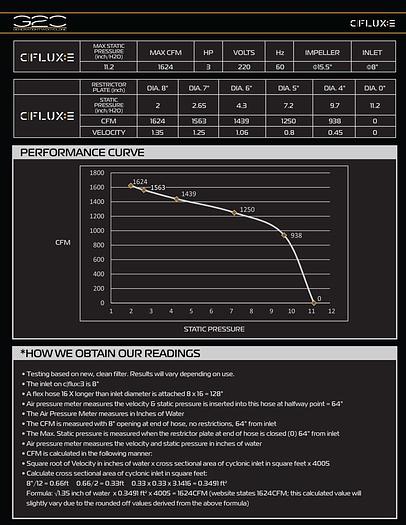

Shop Setting CFM*: 1624

Inlet CFM: 2817

Max Static Pressure (Inches of Water): 11.2″

Impeller/Fan Size: 15.5″

Impeller Material: Steel

Impeller Type: Radial Fin

Balanced To: ISO 1940

Inlet Diameters: 8″ by 4″ x 3 Ports

Drum Capacity: 33 Gal.

Octagon Collection Bag (Dia. x L): Plastic Bag (610 x 950mmL)

Canister Filter Type: 1 Micron

Filtration Efficiency: 0.2-2 Micron

MERV Rating: 12

Canister Diameter: 400mm (15.75″)

Canister Length: 900mm (19.69″)

Filter Surface Area: 9.5m²/109ft²

Canister Cleaning: Manual Handle Crank/*Auto Cleaning Kit Available

Canister Filter Lower Dust Collection: Plastic Bag (400 x 600mmL)

Base With Perforated Sheet Across Canister Floor: N/A

Wheels: 4″ Flat Canister

US/CSA Approved: Yes

Decibel Reading: 88 dB(at 9.8ft)

Machine Weight: 140kgs/375lbs

Assembled Dimensions (L x W x H): 46″ x 27″ x 79″ (1179 x 690 x 2025mm)

Shipping Weight: 385 lbs

Shipping Dimensions (L x W x H): 50in x 32in x 52in

*Reducer is no longer included


ModelC|Flux: 3
Stock NumberMDCCF32201
