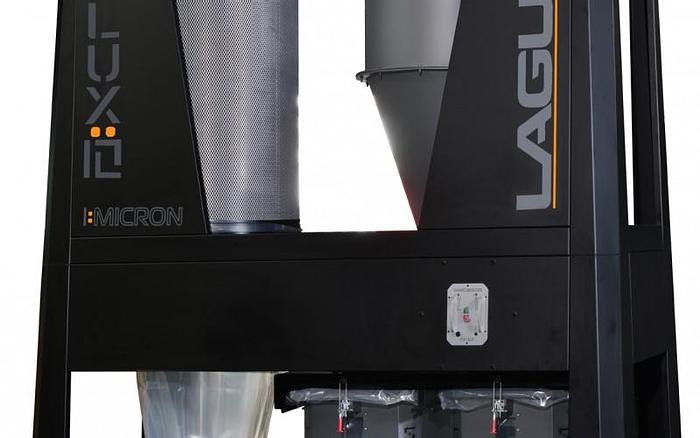

Laguna, T|Flux: 10 Cyclone Dust Collector

Laguna, T|Flux: 10 Cyclone Dust Collector

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The T|Flux cyclones are equipped with a 12″ inlet port, allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations. All models are outfitted with smart drums which alert the user when the drums reach capacity. Automatic canister cleaning is controlled by a timer that turns on every work hour & runs 10 seconds clockwise & counter clockwise. The 1 micron canister has a huge surface area and filtrates 99.97% of particles ranging from 0.2 to 2 microns. Smart Drums comes standard with high quality casters and feature our unique quick disconnect design.

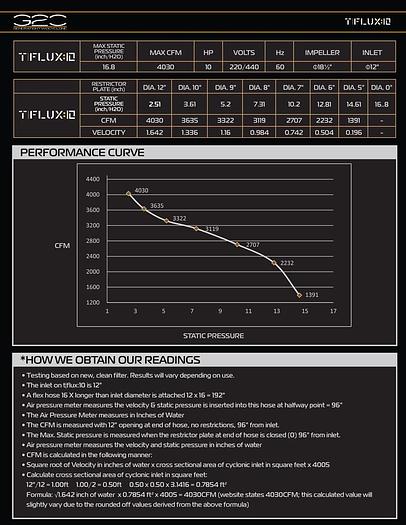

Shop Setting CFM*: 4030

Inlet CFM: 6957

Max Static Pressure (Inches of Water): 16.8″

Impeller/Fan Size: 18.5″

Impeller Material: Steel

Impeller Type: Radial Fin

How is the fan balanced? To what specs?: ISO 1940

Inlet Diameters: 12″

Drum Capacity: 54 ga x 2 Sets

Octagon Drum: Low Pressure

Drum Collection Bag (Dia x L): Plastic Bag (740 x 1300mmL)

Canister Filter Type: Black 1 Micron

Filtration Efficiency: 0.2-2 Micron

MERV Rating: 12

Canister Diameter: 750mm (29.53″)

Canister Length: 1200mm (47.24″)

Filter Surface Area: 19.2 m²/207 ft²

Canister Cleaning: Auto Clean (gear motor)/Cleans every hour 10 sec clockwise, 10 sec counter-clockwise

Canister Filter Lower Dust Collection: Plastic Bag(740 x 600mmL)

Canister Filter Lower Dust Collection: Plastic Bag (740 x 600mmL)

Wheels: None

US/CSA Approved: Yes

Decibel Reading: 81 dB(A)(@9.8ft)

Machine Weight: 590 kgs/1301 lbs

Shipping Weight: 735 kgs/ 1621 lbs

Shipping Dimensions (L x W x H): 100″ x 49″ x 86″

Assembled Dimensions (L x W x H): 99.6 x 48.3 x 131.4in (2530 x 1225 x 3337mm

Specifications

ManufacturerLaguna
ModelT|Flux: 10
ConditionNew
Stock NumberMDCTF102203
