Laguna, X|Flux: 10 Industrial Dust Collector

Laguna, X|Flux: 10 Industrial Dust Collector

Contact us for price

Dundee, NY

orCall +1 (607) 678-4374


The T|Flux series from Laguna starts to get serious. The Titan cyclones are geared towards clients who desire a single central unit for the entire shop.

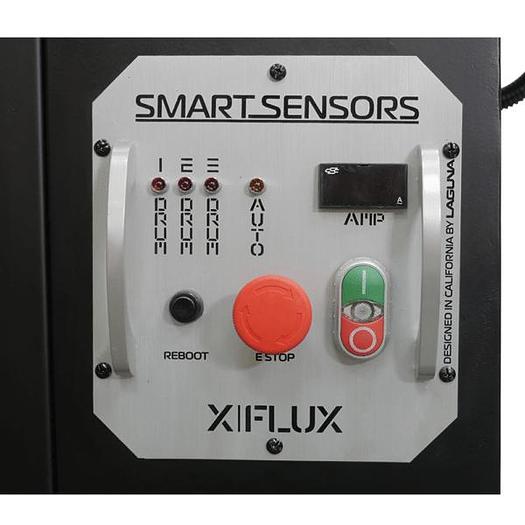

Hand Held Remote Control: HF (High Frequency)

LED Warning Light Empty Drum: Yes

Canister Auto Clean Controlled By Timer: Yes

Shop Setting CFM: 4700

Inlet CFM: 8070

Max Static Pressure (Inches of Water): 11″

Impeller/Fan Size: 15.5″

Impeller Material: Steel

Impeller Type: Radial Fin

Balancing of Fan: ISO 1940

Inlet Diameter: 12″

Drum Capacity: 54 Gal x 3

Octagon Drum: Low Pressure Suction, Swiveling Casters

Drum Collection Bag (Dia. x L): Plastic Bag 29″ x 51″

Canister Filter Type: White 1 Micron

Filtration Efficiency: 0.2-2 Micron (@99.97%)

MERV Rating: 12

Canister Diameter: 500mm (19.69″)

Canister Length: 900mm (35.43″)

Canister Cleaning: Timed Auto Clean 2 x 10 Seconds Per Work Hour

Canister Filter Lower: Plastic Bag 29″ x 24″

Wheels: 6″ Industrial Swiveling

US/CSA Approved: Yes

Decibel Reading: 80dB(A)(@9.8ft)

Assembled Dimensions (L x W x H): 104″ x 49″ x 106″

Machine Weight: 750 kgs/ 1653 lbs

Shipping Weight: 830 kgs/ 1829 lbs

Shipping Dimensions (L x W x H):


ModelX|Flux: 10
Stock NumberMDCXF102203
