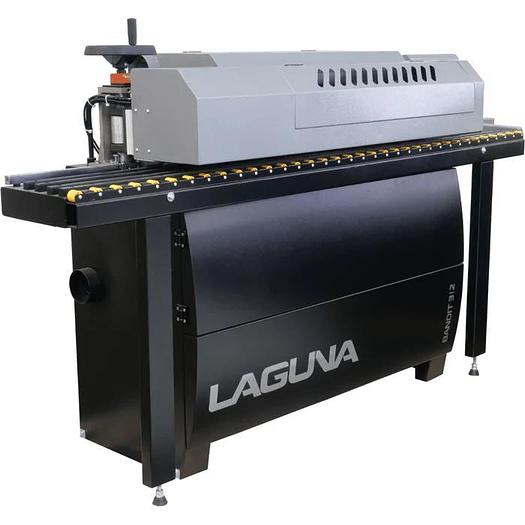

Laguna, Bandit 3/2 Edgebander

Laguna, Bandit 3/2 Edgebander

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The Laguna Tools Bandit 3/2 is the compact heavy-weight in our line of Automatic Edgebanders. Designed for every-day professional use with all 2mm materials. The gluepot allows for maximum flexibility for use with PVC, wood tape, laminate and wood strips. Standard features include automatic end trim with dual blade end cutting units, edge trimming with dual high frequency motors, buffing unit, adjustable overhead control panel, pull out support rollers for wide panels, and electronic temperature control with digital readout.


Specifications

ManufacturerLaguna
ModelBandit 3/2
ConditionNew
Stock NumberMEB-32-0135
In-feed FenceHeated
Glue Tank Capacity30 oz Teflon Coated
Glue Heating5 Elements with Auto Temperature Control
Glue ApplicationsMicro-Adjustable
Pressure RollersDual
Panel FeedAutomatic Belt Feed
Work Table Length79″
Minimum Panel Length9.44″
Minimum Panel Width4 ¾”
Panel Thickness (Min – Max).47″ – 1.77″
Tape Thickness (min-max) 0.4 mm – 2 mm
Dust Collection Port4″

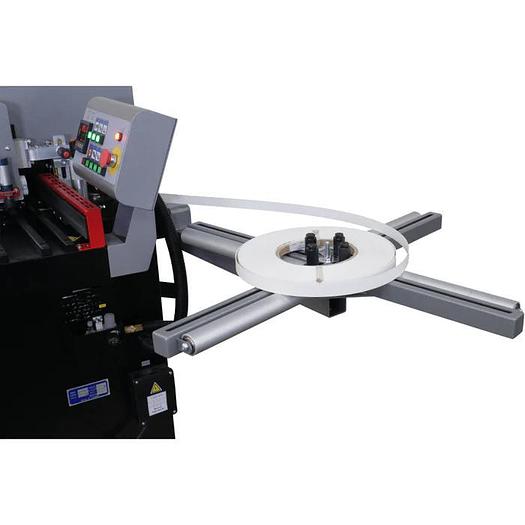

Edgebanding Coil Capacity31 ½” Diameter

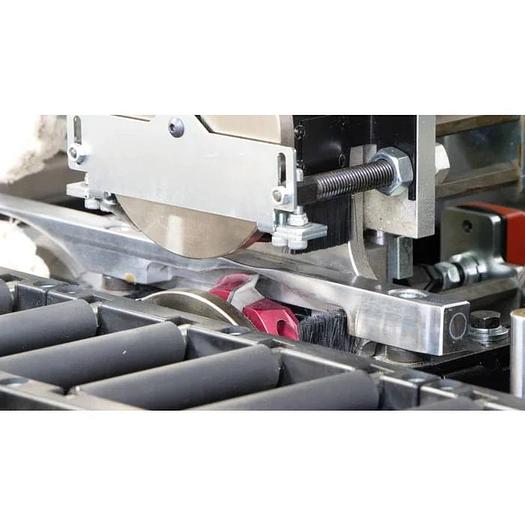

End TrimSaw Blade – Front and Rear Automatic
Edge TrimCarbide Insert Shaper Cutters – Top and Bottom
BuffingTop and Bottom
Weight1200 lbs
Pull-Out SupportStandard

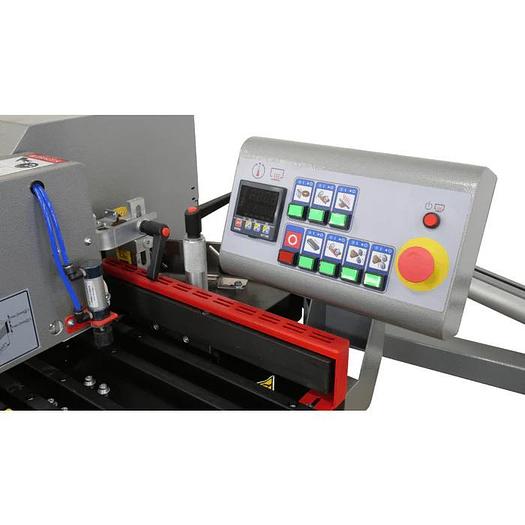

Centralized ControlsPLC Standard
Power220 Volt, 1 phase 40 Amp
Compressed Air Required87 PSI Clean dry air
Mobility KitOptional
